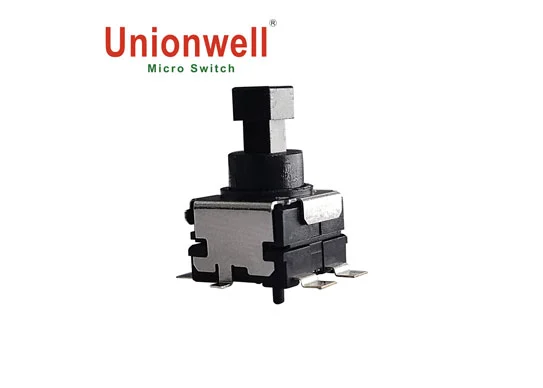

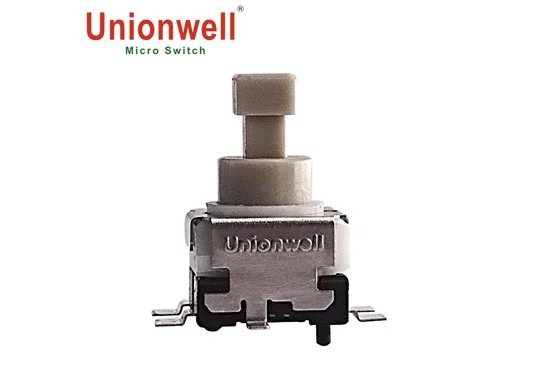

G25 Push Button Switch
g25 1111u 1
g25 1111u 1

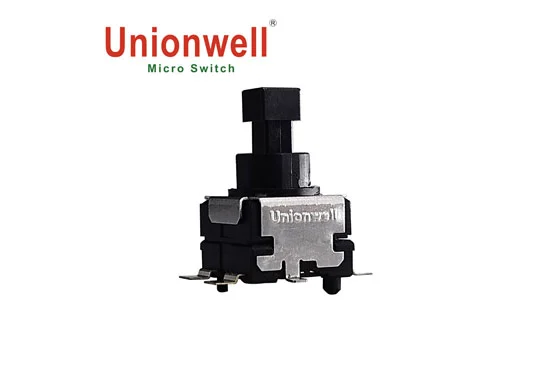

g25 1111u 2

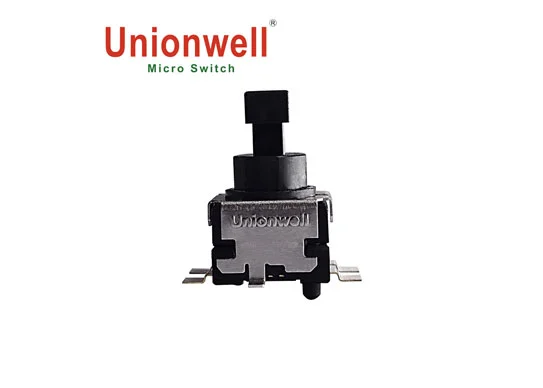

g25 1111u 3

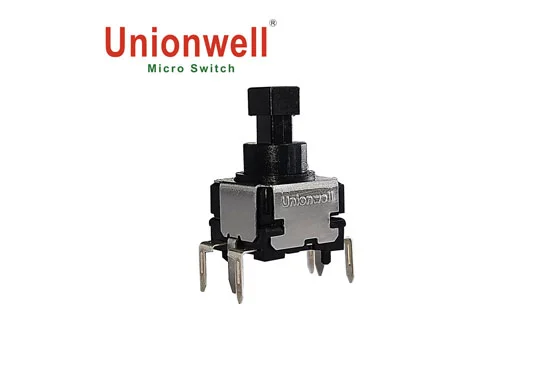

g25 1121u 1

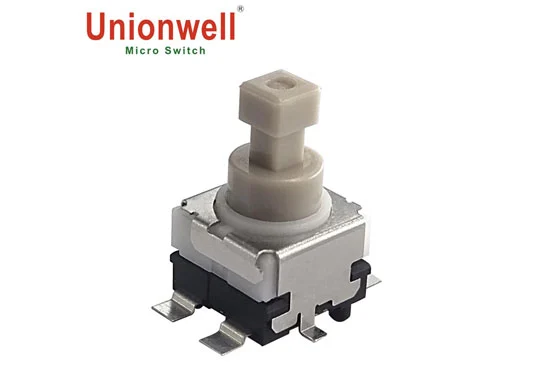

g25 2112u 3

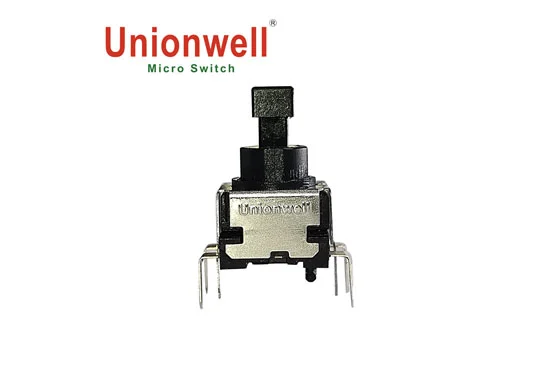

g25 1121u 3
g25 2112u 1

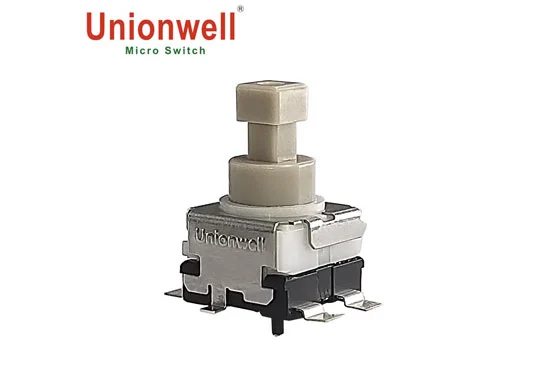

g25 2112u 2

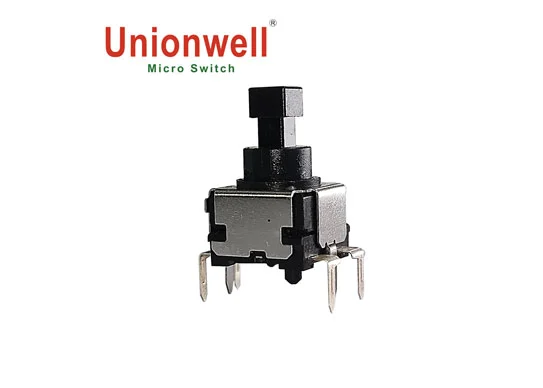

g25 1121u 2

G25 Push Button Switch

  • High Contact Reliability Pushbutton Switches for Micro Loads

  • High stability in high temperature environment

  • Have two function modes of self-locking and non-locking

  • Feel smooth and good operating experience

  • There are two welding process options of DIP and SMT


Quote Datasheet

Specifications of G25 Push Button Switch

Operating Frequency15-20 cycles/min
Insulation Resistance≥3MΩ(VDC 100V Insulation Resistance Meter)
Contact Resistance (Initiative)with terminals type≤100mΩ
Dielectric StrengthBetween terminalsAC100V. 50/60Hz, 1min.
Between terminals and uncharged metal partsAC1500V. 50/60Hz. 1min.
Service LifeElectrical300,000 cycles (15-20 cycles/min) 50mA 18VDC 50μA 5VDC
Mechanical300,000 cycles (30 cycles/min)
Operating Temperature-40° C- +85° C 60%RH(No ice.no frost)
Operating Humidity95%RH ( + 5~+35°C)


Products

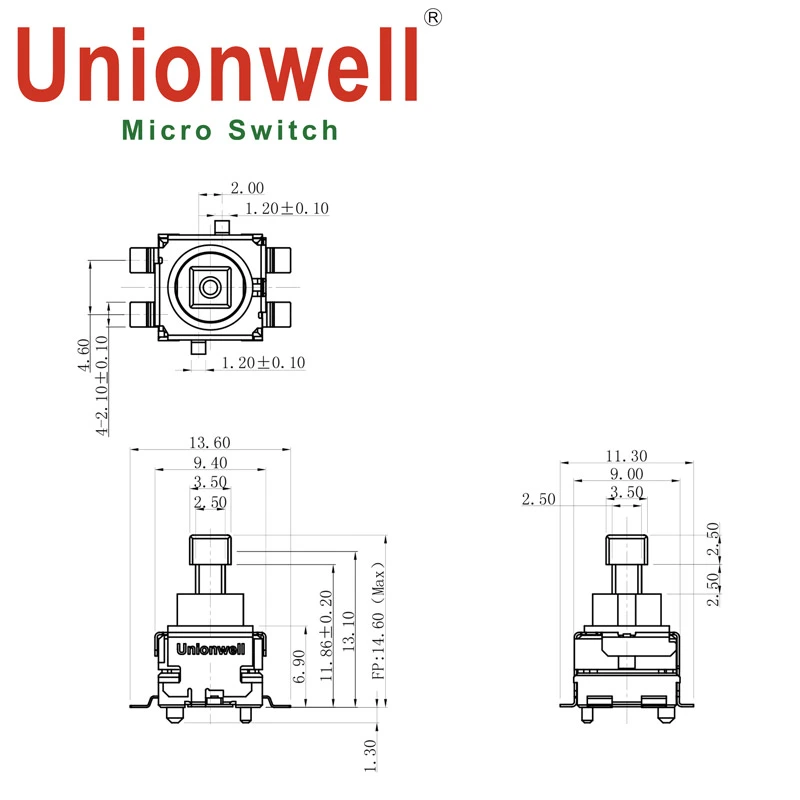

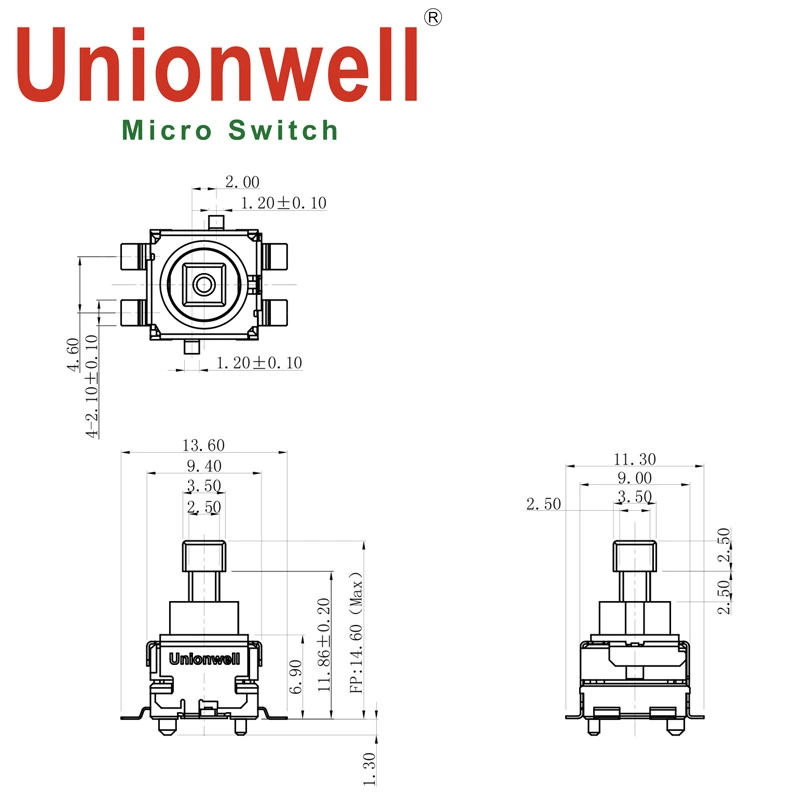

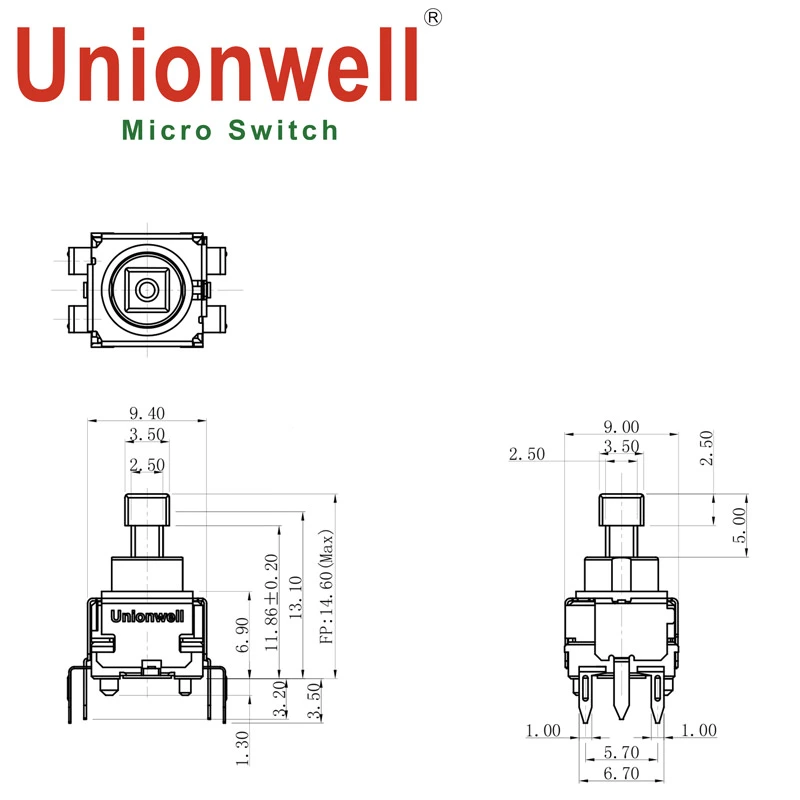

Product Drawing of G25 Push Button Switch

g25 1111u3
g25 1121u3
g25 2112u 4

G25 Push Button Switch Application

Waterproof Automotive Micro Switch Applications
Automotive
