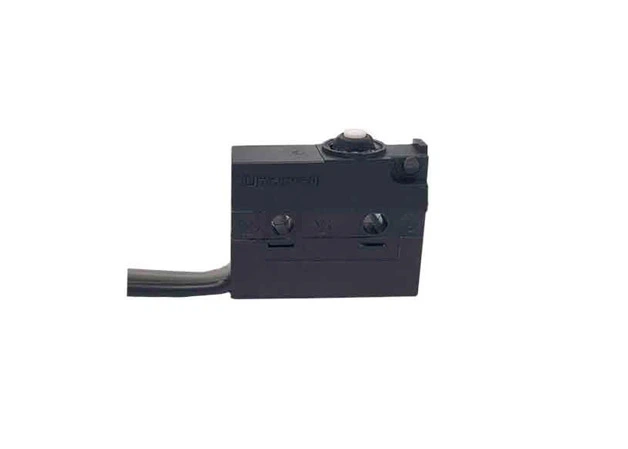

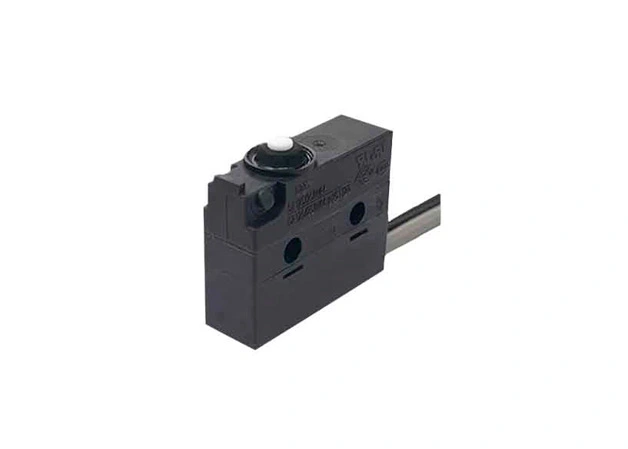

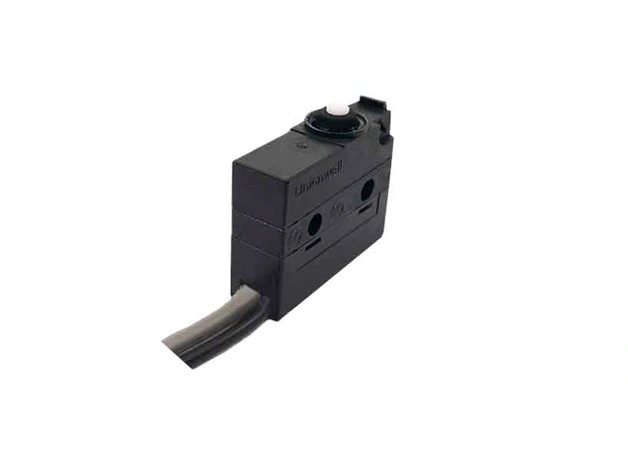

Spherical Pin Plunger Sealed Mini Micro Switch G905
Spherical Pin Plunger Sealed Mini Micro Switch G905
Spherical Pin Plunger Sealed Mini Micro Switch G905
Spherical Pin Plunger Sealed Mini Micro Switch G905
Spherical Pin Plunger Sealed Mini Micro Switch G905

Spherical Pin Plunger Sealed Mini Micro Switch G905

  • IP67 Sealed Construction: Fully dust- and waterproof for use in harsh environments

  • Spherical Pin Plunger Actuator: Smooth, precise actuation in a compact form factor

  • Robust Electrical Ratings: ENEC/CQC: 6 A @ 125/250 VAC (1E4), 3 A @ 125/250 VAC / 30 V DC (5E4); UL/cUL: 5 A @ 125/250 VAC

  • SPST-NC Circuit: Single-pole, single-throw normally-closed configuration

  • Long Service Life: Up to 100,000 electrical cycles and 500,000 mechanical cycles

  • Wide Operating Range: –25 °C to +120 °C temperature rating, 85 % RH max humidity

  • Versatile Applications: Ideal for automotive controls, appliances, and industrial automation systems

Contact Us

The Features Of Spherical Pin Plunger Sealed Mini Micro Switch G905

  • Dust and water proof design (IP67)

  • Small compact size

  • Long life,high reliability

  • Variety of terminals and levers

  • Widely used in auto control,applianceand other industry control


Parameters

  RatingP10.1A 125/250VAC 48VDC 5E4 Gold Plated Contact Optional
05UL: 5A 125/250VAC
ENEC: 6A 125/250VAC 1E4;3A 125/250VAC 30VDC 25T120μ5E4
  Operating FrequencyElectrica


Mechanloa

10~30 cycles/min
120 cycles/min
  Contact Resistance (Initlal Value)100mΩ Max (It depends on the wire length for the type with wire)
  Insulation Resistance (at 500VDC)100MΩ Min
  Dielectric StrengthAC 1,000V RMS(50~60Hz)
  Operating Temperature-25℃~+120℃
  Operating Humidity85%RH Max.
  Service LifeElectrical10,000~100,000 cycles (Depend on P/N)
Mechanical500,000 cycles


Products
Contact with Us
Tel:
+86-20-87713867
E-mail:
inquiry@unionwellgz.com
Add:
RM1311, Renfeng Building, No. 490, Tianhe Road, Tianhe District, Guangzhou, Guangdong, China, 510630.
Unionwell
Switches are us, switch to us. Find quality micro switches at Unionwell

Popular IP67 Waterproof & Dustproof Mini Micro Switch G9 series

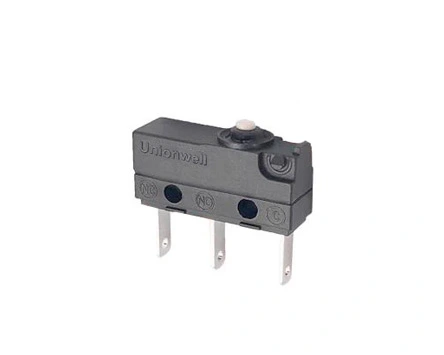

Sealed Mini Micro Switch G9
Sealed Mini Micro Switch G9
Waterproof Miniature Micro Switch Wires Custom Lever G905
Waterproof Miniature Micro Switch Wires Custom Lever G905
Sealed Micro Switch G9
Sealed Micro Switch G9

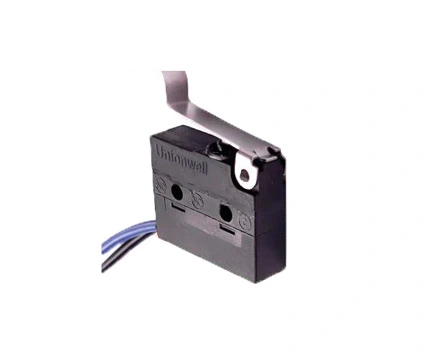

Sealed Micro Switch SPST-NO Wires Lead To Side G905
