Unleashing the Beast: How Micro Switches Power Automotive Nitrous Oxide Systems (NOS)

Introduction

For automotive enthusiasts and racing professionals, the "Nitrous Oxide System" (NOS) is synonymous with instant power. Made famous by movies like Fast & Furious, this system can transform a standard engine into a track beast in seconds. However, controlling this explosive power requires precise timing and reliable components. Today, we dive into the heart of the activation mechanism: the micro switch.

What is a Nitrous Oxide System (NOS)?

Originally developed by the Holley Performance Products, NOS is an auxiliary device for internal combustion engines.

• The Science: It works by injecting Nitrous Oxide ($N_2O$) into the engine. At high temperatures, $N_2O$ decomposes into oxygen and nitrogen.

• The Result: The extra oxygen allows more fuel to be burned (since the air-fuel ratio is fixed), effectively increasing the engine's volumetric efficiency and output power.

• Types: Systems are generally categorized as Dry (injecting only gas) or Wet (injecting both gas and fuel).

The Role of the Micro Switch: The "Trigger"

In a high-stakes racing environment, the driver needs absolute control over when the nitrous boost kicks in. This is where Unionwell’s G5 Series Basic Micro Switch plays a critical role.

Installation Location

The micro switch is typically installed on the activation device connected to the operation panel. It is mechanically linked to the operation handle or a throttle-mounted bracket via a transmission mechanism. It acts as the physical "trigger" that translates the driver's command into electrical action.

How It Works: The Activation LogicThe working principle is a classic example of electromechanical control:

1. Driver Action: The driver presses the control switch (or hits full throttle).

2. Trigger: This mechanical action physically triggers the G5 micro switch.

3. Relay Engagement: The micro switch completes the control circuit, sending a signal to the relay.

4. Valve Opening: The relay energizes the Nitrous Solenoid Valve.

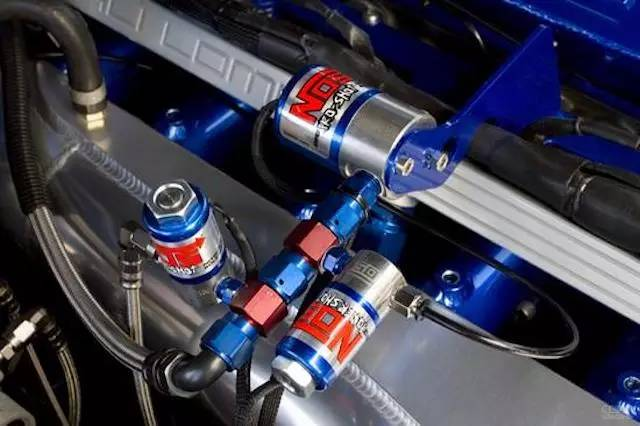

5. Injection: The valve opens, allowing the nitrous oxide (and fuel, in wet systems) to rush through the nozzle and into the engine cylinder, delivering an immediate power surge.

Why Unionwell G5 Series?

In modification and racing, component failure is not an option. A switch failure could mean a lost race or, worse, engine damage if the nitrous sprays at the wrong time.

• Precision: The G5 series offers precise actuation points, ensuring the boost fires exactly when the driver intends.

• Reliability: Designed for high endurance, it can withstand the vibrations and rapid operations typical of a racing cockpit.

• Global Standards: Unionwell switches are UL, cUL, ENEC, and CQC certified, giving tuners and manufacturers peace of mind.




Conclusion

Whether for a quarter-mile drag strip or a professional circuit, the reliability of your NOS depends on the quality of its smallest parts. Unionwell’s G5 micro switches ensure that when you need that extra boost, it’s always there.

Building a performance modification kit?

Contact Unionwell today for high-performance switching solutions tailored for automotive enthusiasts.
