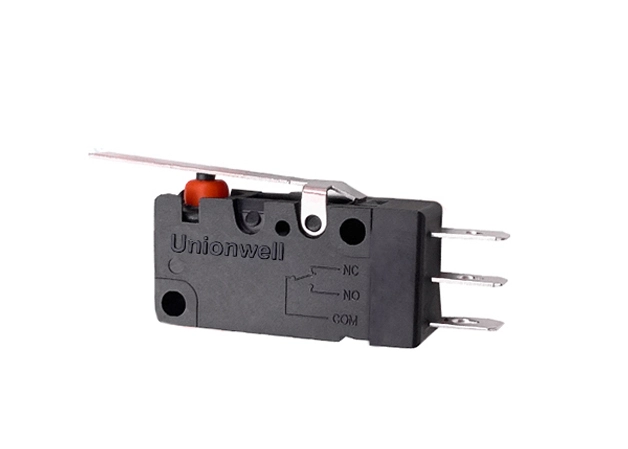

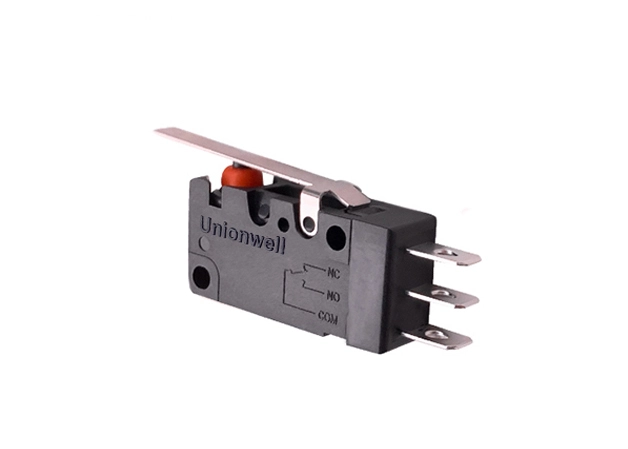

Waterproof Micro Switch with 200gf Pin Plunger G5W11
g5w11-ez200a02-w3nu-01
g5w11-ez200a02-w3nu-01
g5w11-ez200a02-w3nu-02

Waterproof Micro Switch with 200gf Pin Plunger G5W11

  • High IP67 Rating: Water and dust-resistant design ideal for harsh environments.

  • Enhanced Sensitivity: 200gf operating force at pin plunger for precise activation.

  • Robust Construction: Features a standard straight lever positioned away from the pin plunger and a 4.7*0.5mm quick-connect terminal style.

  • Versatile Applications: Suitable for automotive, appliance, and office equipment applications.

  • Multiple Electrical Ratings: Complies with ENEC/CQC and UL/cUL standards across three distinct ratings.

Quote

Unionwell's Waterproof Micro Switch with a 200gf Pin Plunger (Model: G5W11-EZ200A02-W3NU) is designed for demanding industrial and consumer applications where reliability and precision are paramount. With an IEC IP67 rating, this switch offers superior resistance to water and dust, making it well-suited for harsh environments.


Engineered with a standard straight lever that is positioned away from the pin plunger, it ensures smooth operation and minimizes accidental activation. The switch features a 4.7*0.5mm quick-connect terminal style, facilitating rapid and secure installation. Available in three electrical ratings, it meets both ENEC/CQC and UL/cUL standards, providing flexible options for diverse circuit requirements. Its robust performance, including a wide operating temperature range of –40°C to +85°C and high mechanical endurance, makes it an excellent choice for automotive electronics, home appliances, and office equipment.


Parameters

RatingW1ENEC： 0.1A 48VDC, 0.1A 125/250VAC,40T85,5E4,u
UL：0.1A 48VDC,0.1A 125/250VAC,T85
W2ENEC： 5A 125/250VAC,5A, 30VDC,40T85,5E4, u
UL：5A 125/250VAC,T85
W3ENEC：10(2)A 125/250VAC, 0.5A 125VDC, 0.25A 250VDC,40T85,u,2E4
UL：10.1A 1/10HP 125/250VAC,0.5A 125VDC, 0.25A 250VDC, T85
Operating FrequencyElectrical10~30 times/min
Mechanical60 times/min
Contact Resistance(initial value)With Terminal50mΩ Max
With Wire100mΩ Max(Depends on the length of the wire)
Insulation Resistanceat 500VDC,100MΩ Min.
Dielectric StrengthBetween TerminalsAC 1000V 50-60Hz 1min
Between Terminals And HousingAC 1500V 50-60Hz 1min
Storage Temperature-40°C~+85°C
Storage Humidity85%RH Max
Protection GradeWith TerminalIEC IP67(Terminal not included)
With WireIEC IP67
(PTI)Electric-shock Safeguard GradeClass I
LifeE-life2E4~10E4 cycles(depends on P/Ns)
M-lifeover 1,000,000 cycles(60 cycles/min)
WeightApprox.7g(with terminal and without lever)


Products

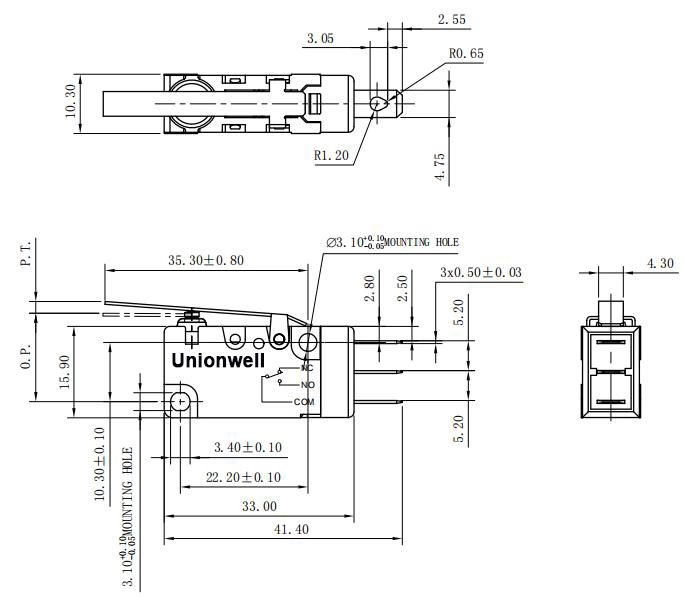

Waterproof Micro Switch with 200gf Pin Plunger G5W11 Drawings
