Refrigerator Door Switches for Interior Lighting: Working Principle, Selection and Customization

The interior light is one of the first functions users notice when opening a refrigerator. It should turn on immediately when the door opens and switch off reliably after the door closes. This familiar function is usually controlled by a mechanical refrigerator door switch installed in the cabinet frame or door-contact area.

In the Unionwell SWP application, one switch is installed for each refrigerator door. When the door opens, the actuator is released and the interior light turns on. When the door closes, the door presses the actuator and the light turns off. Although the operating principle is simple, the switch must match the refrigerator’s structure, circuit, wiring system and appearance requirements.

Working Principle of a Refrigerator Door Switch

A refrigerator light switch responds directly to the position of the appliance door.

When the door opens, it no longer presses the switch actuator. The actuator returns to its free position, the electrical contacts change state and the interior light turns on. When the door closes, the door presses the actuator again, causing the switch to change back to the closed-door state and turn the light off.

The switch’s electrical contact state should not be confused with the state of the refrigerator lamp. For example, “ON” may describe the illuminated lamp rather than the internal state of the switch contacts. Engineers should therefore confirm the normally open, normally closed and common terminals according to the appliance wiring diagram.

In electronically controlled refrigerators, the switch may not control the lamp directly. Instead, it may send a door-position signal to the main control board, which then manages the light, internal fan or other related functions.

Why Accurate Door Detection Matters

A reliable refrigerator door light switch helps ensure that the interior lamp operates only when needed. If the switch does not change state after the door closes, the light may remain illuminated, consume unnecessary electricity and introduce additional heat into the refrigerated compartment.

Incorrect switch operation can also affect the user experience. A light that flickers, remains on or turns off too early may make users believe that the refrigerator door is misaligned or that the appliance has an electrical fault.

The switch operating point should therefore be coordinated with:

• Door hinge movement

• Cabinet-frame dimensions

• Door-seal compression

• Switch mounting depth

• Actuator length and travel

• Plastic-component tolerances

The actuator must make reliable contact with the door while avoiding excessive compression after the door reaches its fully closed position.

SWP Series for Refrigerator and Freezer Applications

Unionwell’s SWP series is designed for door-operated control applications in refrigerators and similar appliances. Its compact, integrated construction makes it suitable for installation in limited cabinet space, while its extended operating travel helps accommodate the movement of the refrigerator door.

The SWP fridge door light switch can be considered for:

• Household refrigerators

• Freezers and chest freezers

• Refrigerated display cabinets

• Cold-storage appliances

• Other door-operated lighting systems

Depending on the final circuit, the switch can control the interior lamp or provide a door-status signal to the appliance controller. Refrigerator manufacturers should provide the actual voltage, current and contact requirements when selecting a model.

Selecting the Right Switch Configuration

A fridge door switch should not be selected only according to its external dimensions. Electrical rating, actuator movement and assembly tolerances must also be evaluated.

The mounting design should provide sufficient operating margin. If the switch is positioned too deeply, the door may not press the actuator far enough. If the switch protrudes too far, the actuator and surrounding plastic components may remain under excessive mechanical stress.

Color and Wiring Customization

In some refrigerators, the refrigerator switch remains visible inside the cabinet. Its color may therefore need to match the interior liner, trim or product design.

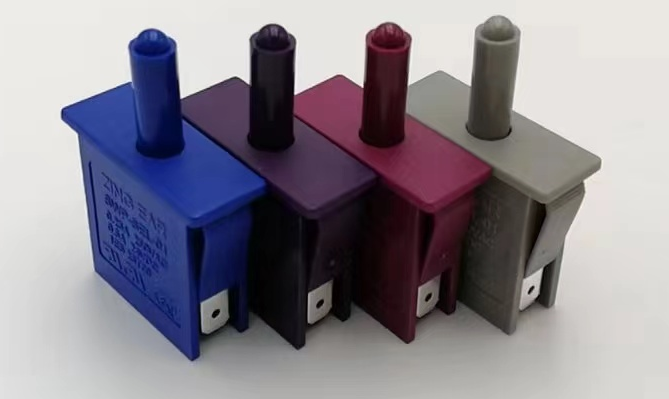

The SWP series can support different housing colors for different refrigerator models. Manufacturers requesting customized colors should provide an approved physical sample, recognized color code or cabinet-liner reference. General descriptions such as “white” or “grey” may not provide sufficient control because plastic material, surface texture and lighting conditions can influence the final appearance.

Terminal and wiring configurations also affect assembly efficiency. Depending on the production line, buyers may require quick-connect terminals, solder terminals, wire leads, customized wire lengths or preassembled connectors. The wire specification, connector type and terminal direction should be defined before sample approval.

FAQ

What does a refrigerator door switch do?

It detects whether the refrigerator door is open or closed and commonly controls the interior light or provides a door-status signal to the appliance controller.

Why does the refrigerator light stay on after the door closes?

Possible causes include insufficient actuator travel, incorrect switch positioning, door misalignment, wiring problems or switch damage.

Can the SWP switch color be customized?

Yes. Different housing colors can be considered to match refrigerator interiors, subject to color-reference confirmation and sample approval.

Can one switch be used for two refrigerator doors?

The Unionwell SWP application uses one switch for each door. The final quantity depends on the refrigerator structure and control design.

Conclusion

A reliable refrigerator door switch provides a simple and repeatable method of detecting the open and closed positions of an appliance door. Correct selection requires careful coordination between the actuator, cabinet frame, door hinge, sealing gasket and electrical circuit.

Unionwell supplies SWP switches with compact structures, multiple terminal options and color-customization support. Refrigerator, freezer and refrigerated-cabinet manufacturers can provide their drawings, electrical requirements, color references and purchasing quantities to request samples and a project-specific quotation.
