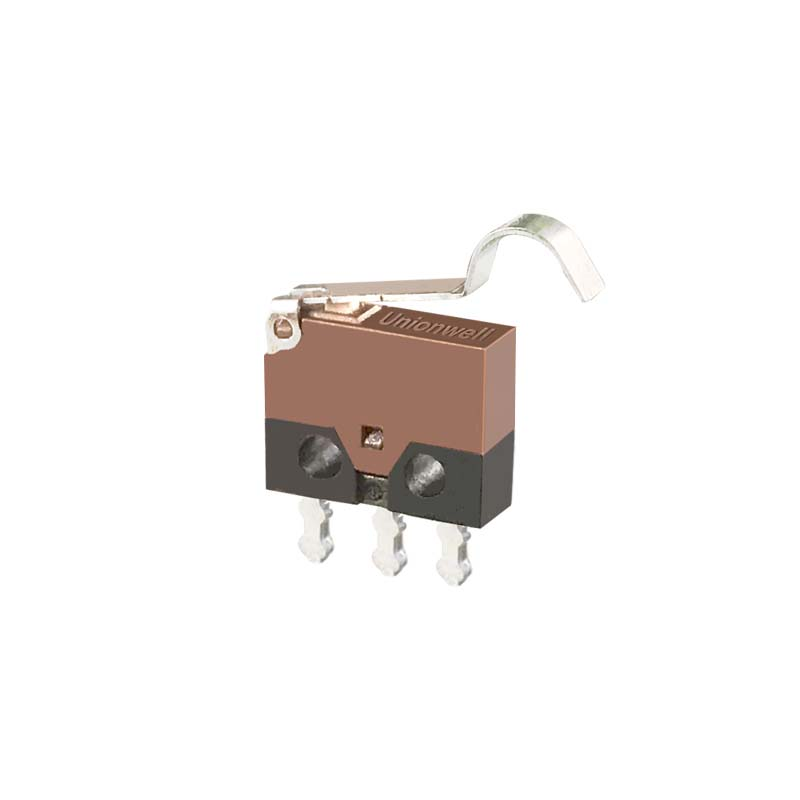

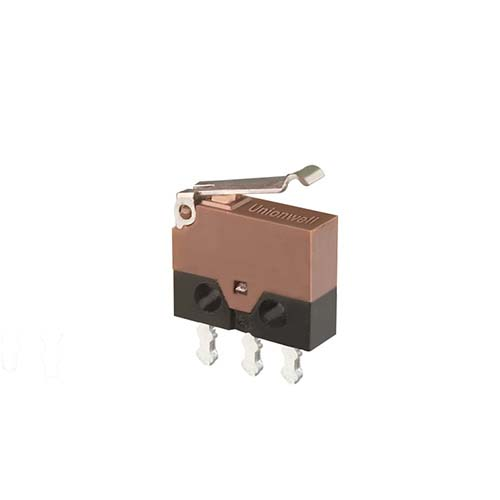

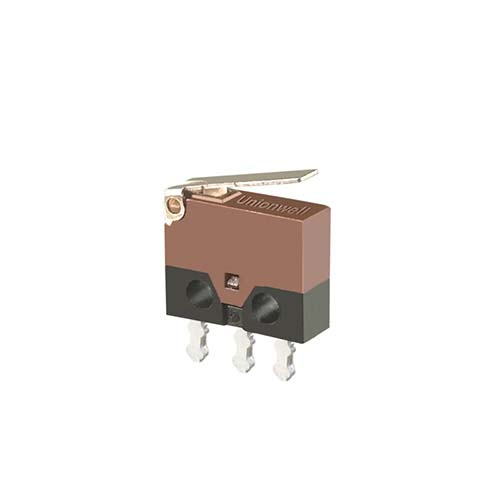

Miniature Micro Switch Roller Lever G15D
Miniature Micro Switch Roller Lever G15D.jpg
Miniature Micro Switch Roller Lever G15D.jpg

Miniature Micro Switch Roller Lever G15D

  • Ultra-slim 2.7mm design – perfect for compact applications

  • Roller lever for smooth and precise actuation

  • Long mechanical life – over 1 million cycles

  • High-sensitivity switching with low operating force

  • PCB-mounted terminals for easy integration

  • Reliable contact performance – silver alloy or gold plated

  • RoHS compliant and built for demanding environments

The G15D miniature micro switch with roller lever is designed for precision control in space-constrained applications. With a slim profile of just 2.7mm in width and a durable construction, this micro switch ensures reliable performance for a wide range of low-current applications. Rated at 0.1A 30V DC, it is ideal for smart electronics, automotive systems, and industrial control modules.

Built with a high-precision spring plate mechanism, the G15D delivers rapid actuation, smooth tactile feedback, and a long service life exceeding 1 million mechanical cycles. The switch is equipped with integrated molded terminals to prevent solder flux wicking and ensure secure PCB mounting.


Choose between silver alloy or gold-plated contact materials based on your design requirements. Multiple roller lever options are available for flexible product structure design. Fully compliant with RoHS standards, the G15D micro switch is engineered to meet global environmental and performance regulations.


Parameters

Series No.G15DP1G15D01Customized
Operating Force15gf 30gf 60gf 110gf
ContactsSilver AlloyGold Plated
Electrical
Rating
O.1A DC30V1A DC15V0.1A DC30V
Contact Resistance(Initial value)100mΩ Max
Operating FrequencyMechanical: 60 cycles max  Electrical: 20 cycles max
Insulation Resistance100MΩ(DC 500V) Min
Voltage ResistanceAC250V 50/60Hz 1min
Mechanical Life20,000 cycles300,000 cycles300,000 cycles1,000,000 cycles
Electrical Life20,000 cycles300,000 cycles10,000 cycles1,000,000 cycles
Storage Humidity85% RH max at +40°C
Operating Temperature Range -40~+85°C
Solder Ability255±5°C 5s
Protection TypeIP40
Unit Net WeightApprox 0.3g
Note: Mechanical life test under 150gf operating force


Products

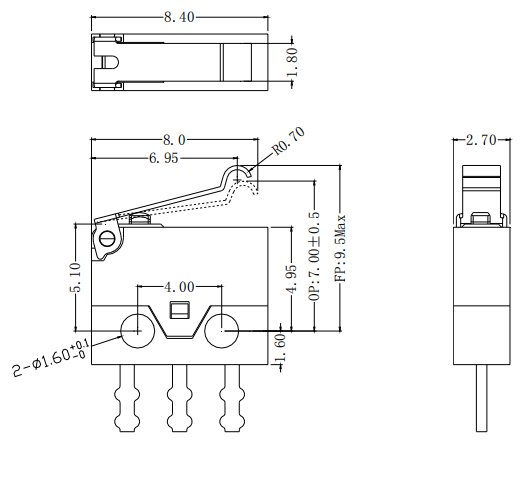

Product Drawing of Miniature Micro Switch Roller Lever G15D
