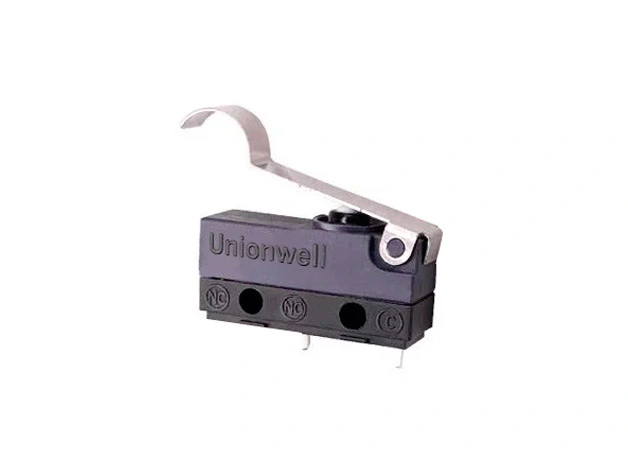

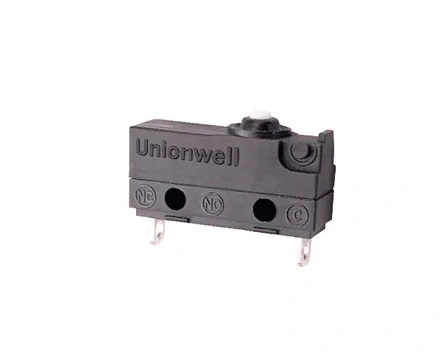

Dustproof Micro Switch SPST-NO 300GF G905
Dustproof Micro Switch SPST-NO 300GF
Dustproof Micro Switch SPST-NO 300GF
Dustproof Micro Switch SPST-NO 300GF

Dustproof Micro Switch SPST-NO 300GF G905

  • Place of Origin: Guangdong, China (Mainland)

  • Brand Name: Unionwell

  • Model Number: G905-300P59D3-T001

  • Terminal Type: Straight PCB Terminals

  • Circuit Code: SPST-NO

Quote

Specifications of Dustproof Micro Switch SPST-NO 300GF

RatingP1ENEC/UL: 0.1A 125/250VAC 48VDC Gold Plated Contact Optional
05ENEC: 5A 125/250VAC; 5A 1/8HP, 125/250VAC
10ENEC: 10(1.5A) 125/125VAC; UL: 10A 1/4HP 125/250VAC
Operating FrequencyElectrical10~30 cycles/min
Mechanical120 cycles/min
Contact Resistance (Initiative)100mΩ Max
Insulation Resistance (at 500VDC)100mΩ Min
Dielectric StrengthAC 1,000V RMS(50-60Hz)
Storage Temperature-40℃~+125℃ or -40℃~+85℃
Storage Humidity85% RH Max.
Service LifeElectrical10,000~100,000 cycles (Depend on P/N)
MechanicalMin 100,000 cycles
