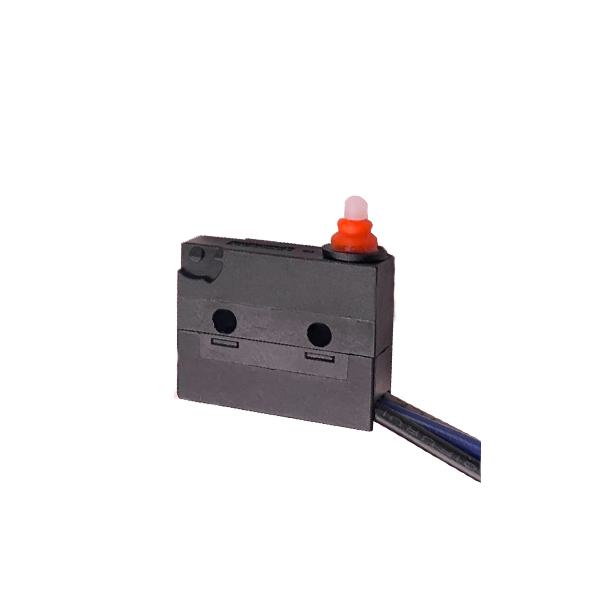

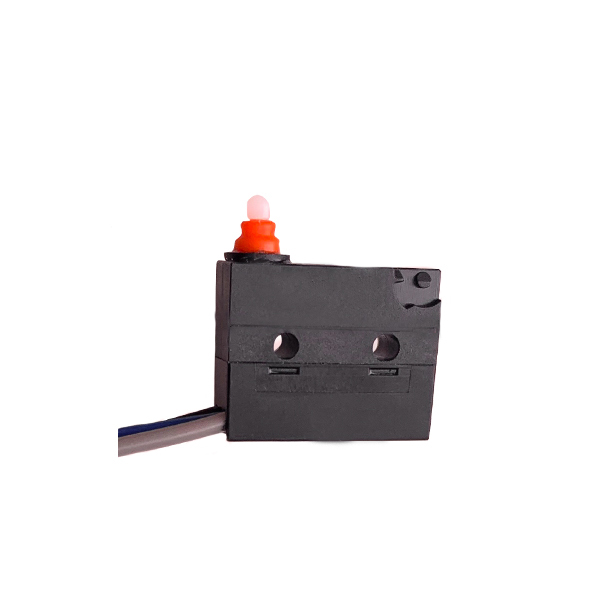

Waterproof Plunger Switch SPDT G9A

Waterproof Plunger Switch SPDT G9A

  • Model Number: G9A05-200G00AF-500U

  • Electrical Rating:

    ENEC/CQC:

    5(2)A 125/250VAC 30VDC 40T85 5E4 μ

    UL/cUL:
    5A 125/250VAC 30VDC

  • Operating Force: 200gf Max

  • Terminal Style: Molded Lead Wires Leads To Left Side(Pin Plunger Side)

  • Lever Type: No Lever Pin Plunger

  • Circuit Code: SPDT

  • Waterproof Code: Waterproof Cover And Injection Molding (Only For Wires)

Contact Us

The Features Of Waterproof Plunger Switch SPDT

  1. G9A dust and waterproof(IP67)

  2. G9B dust proof(IP40)

  3. Small compact size

  4. Long life and high reliability

  5. Variety of terminals

  6. Variety of levers optional

  7. Custom micro switch design

  8. Widely used in auto control, appliances, and other industrial control.



The Parameters Of Waterproof Plunger Switch SPDT

Ratingp10.1A 125/250VAC,0.1A  30VDC
055(2)A 125/250VAC,5A 30VDC
Operating FrequencyElectrical10~30 cycles/minute
Mechanical120 cycles/minute
Contact Resistance(Initiative)With terminals type100mΩ Max
With wires type200mΩ Min
Insulation Resistance (at 500VDC)100MΩ Min
Voltage ResistanceBetween terminalsAC 500V, 50/60HZ,1 Min
Between terminals and uncharged metal partsAC 1000V, 50/60HZ,1 Min
Service  LifeElectrical50,000 cycles
Mechanical200,000 cycles(IP67) 2,000,000 cycles(IP40)
Storage Temperature -40°C~+85°C
Storage Humidity95% RH Max
