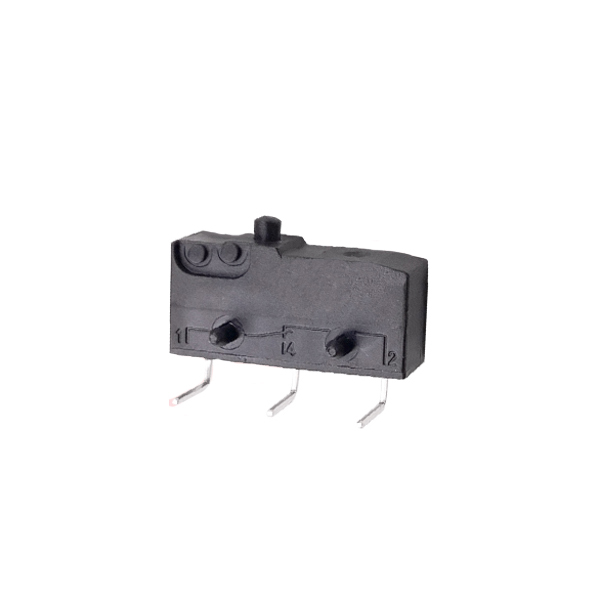

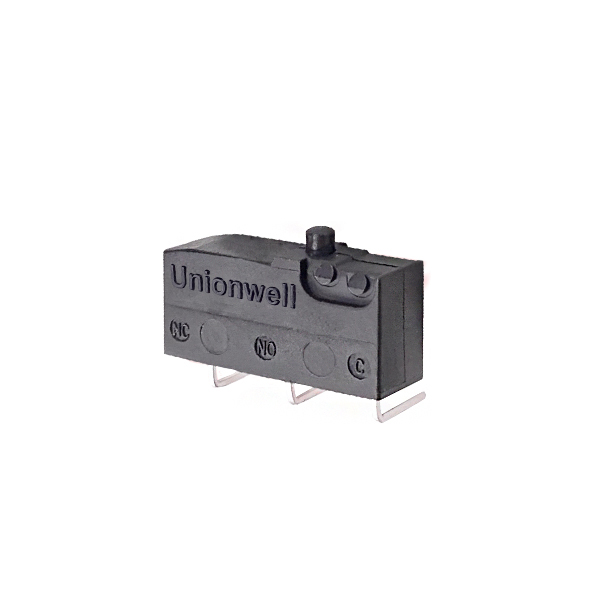

Dustproof Mini Microswitch G9

Dustproof Mini Microswitch G9

  • Model Number: G9105-150L00G1U

  • Electrical Rating:

    ENEC/CQC: 5A 125/250VAC  5E4 μ
    40T125
    UL/cUL:
    5A 125/250VAC

  • Operating Force: 150gf Max

  • Terminal Style: Lift Side PCB Connect

  • Lever Type: No Lever Pin Plunger(Spherical Surface)

  • Construction: Left Sides Posts

  • Circuit Code: SPDT

Contact Us

The Features Of Dustproof Mini Microswitch

  1. Small Compact Size

  2. Variety Of Levers And Terminals

  3. Global Safety Approvals

  4. Long Life And High Reliability

  5. Customized Designs



The Parameters Of Dustproof Mini Microswitch

RatingP1ENEC/UL: 0.1A 125/250V  48VDC
Gold Plated Contact Optional
05ENEC: 5A 125/250VAC;5A 1/8HP,125/250VAC
10ENEC: 10(1.5)A 125/250VAC
UL:
10A 1/4HP 125/250VAC
Operating FrequencyElectrical10~30 cycles/minute
Mechanical120 cycles/minute
Contact Resistance(Initiative)100mΩ Max
Insulation Resistance (at 500VDC)100MΩ Min
Dielectric StrengthAC 1,000V RMS (50~60Hz)
Operating Temperature -40°C~+125°C or
 -40°C~+85°C
Storage Humidity85%RH Max
Service  LifeElectrical10,000~100,000 cycles/Depend on part No.
Mechanical1,000,000 cycles
