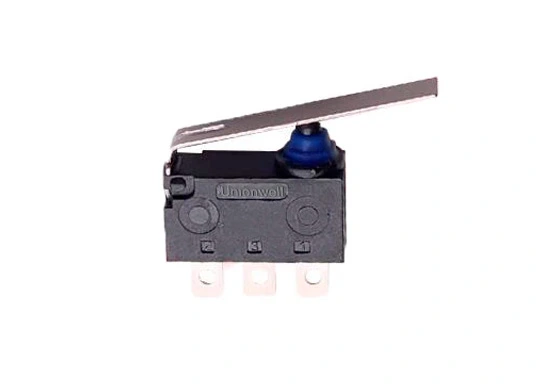

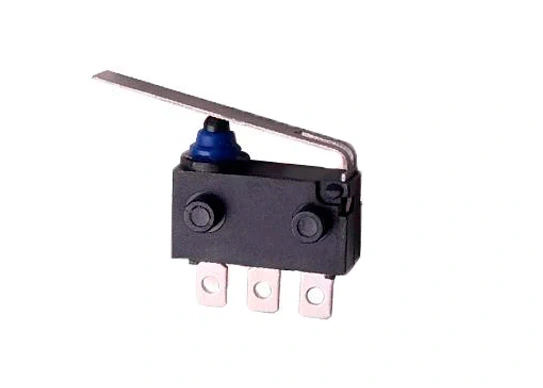

Subminiature Micro Switch 130GF Long Solder Terminals G303
Subminiature Micro Switch 130GF Long Solder Terminals
Subminiature Micro Switch 130GF Long Solder Terminals
Subminiature Micro Switch 130GF Long Solder Terminals

Subminiature Micro Switch 130GF Long Solder Terminals G303

  • Place of Origin: Guangdong, China (Mainland)

  • Brand Name: Unionwell

  • Model Number: G303-130K28A53B

  • Terminal: Long Solder Terminals

  • Circuit Code: SPDT

  • Lever Type: 28# Lever

Quote

Specifications of Subminiature Micro Switch 130GF Long Solder Terminals

Rating0.1A, 125/250VAC; 3A/12VDC; 0.1A/48VDC; μ1E5
Operating FrequencyElectrical0.1A, 120 cycles/min 3A; 10~30 cycles/min
Mechanical120 Cycles/min
Contact Resistance (Initiative)100mΩ Max.(without wire type)
Insulation Resistance (at 500VDC)100mΩ Min.
Vibration Durability10~55Hz, move 0.75mm(p-p)
Dielectric Strength500VAC (50~60Hz)
Operating Temperature-40℃~+85℃
Operating Humidity85% RH Max
Service LifeElectricalMin.100,000 cycles(Depend on part NO.)
MechanicalMin.500,000 cycles
