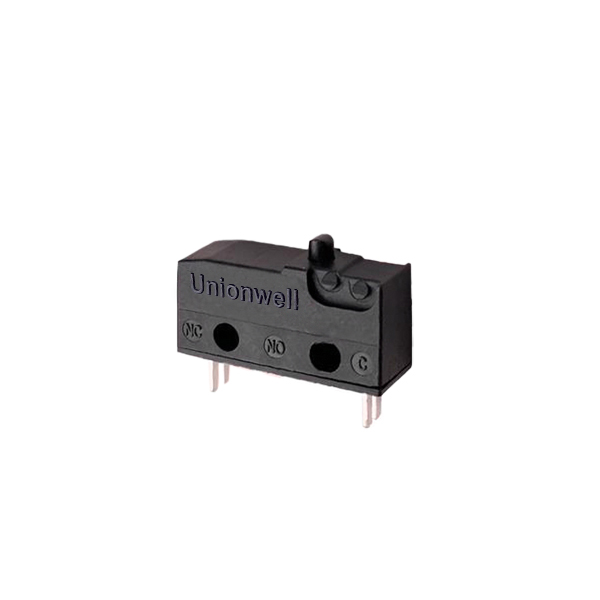

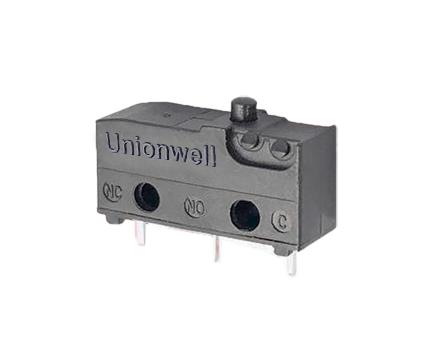

Small Micro Switch Terminals G91

Small Micro Switch Terminals G91

  • Model Number: G9110-250H00D2T-96U

  • Electrical Rating:

    ENEC/CQC:

    10(1.5)A 125/250VAC μ 40T125
    UL/cUL:
    10.1A 1/4HP 125/250VAC

  • Operating Force: 250gf Max

  • Lever Type: No Lever Pin Plunger(Spherical Surface)

  • Construction: Mounting Hole 2.3mm

  • Circuit Code: SPST-NC

  • Special Designator: Temperature Grade 40T85

Quote

The Features Of Small Micro Switch Terminals

  1. Small Compact Size

  2. Variety Of Levers And Terminals

  3. Global Safety Approvals

  4. Long Life And High Reliability

  5. Customized Designs



The Parameters Of Small Micro Switch Terminals

RatingP1ENEC/UL: 0.1A 125/250V  48VDC
Gold Plated Contact Optional
05ENEC: 5A 125/250VAC;5A 1/8HP,125/250VAC
10ENEC: 10(1.5)A 125/250VAC
UL:
10A 1/4HP 125/250VAC
Operating FrequencyElectrical10~30 cycles/minute
Mechanical120 cycles/minute
Contact Resistance(Initiative)100mΩ Max
Insulation Resistance (at 500VDC)100MΩ Min
Dielectric StrengthAC 1,000V RMS (50~60Hz)
Operating Temperature -40°C~+125°C or
 -40°C~+85°C
Storage Humidity85%RH Max
Service  LifeElectrical10,000~100,000 cycles/Depend on part No.
Mechanical1,000,000 cycles
