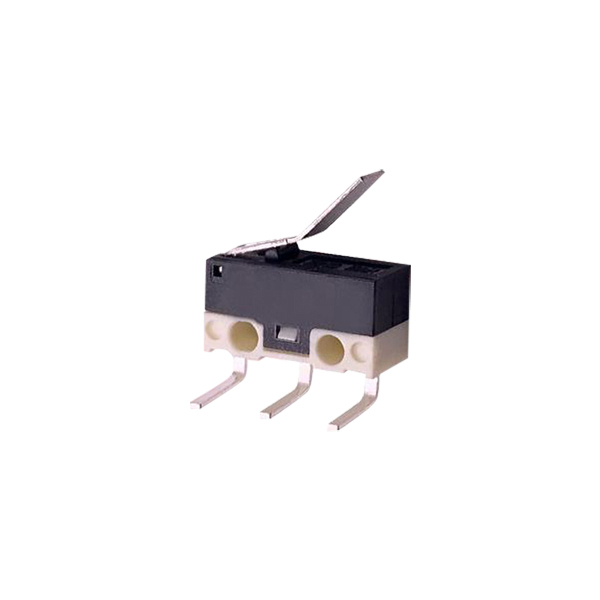

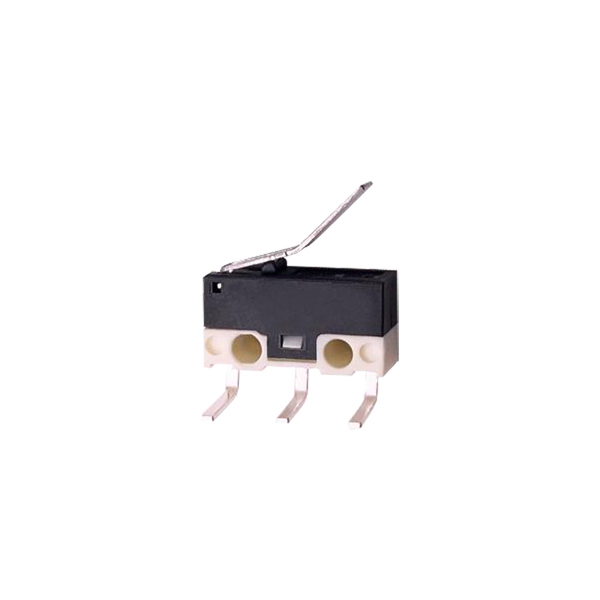

Micro Switch Manufacturer Solder Terminals G10A

Micro Switch Manufacturer Solder Terminals G10A

  • Model Number: G10A03-150L25AU

  • Electrical Rating:

    ENEC/CQC
    3A 125/250VAC 30VDC, 1E4 μ 40T85
    UL/cUL
    3A  125/250VAC 30VDC

  • Operating Force: 150gf Max

  • Terminal Style: Left Angled PCB Terminals

  • Lever Type: 5# lever

  • Circuit Code: SPDT

Contact Us

The Features Of Micro Switch Manufacturer Solder Terminals

  1. Small compact size

  2. Long life and high reliability

  3. Variety of levers optional

  4. Various of terminals

  5. Custom micro switch design and engineering solutions for your applications

  6. Widely used in appliances and industry control



The Parameters Of Micro Switch Manufacturer Solder Terminals

RatingP10.1A 125/250VAC 30VDC
033A 125/250VAC 30VDC
Operating FrequencyElectrical10~30   cycles/minute
Mechanical120 cycles/minute
Contact Resistance(initial value)100mΩ Max (without wire type)
Insulation Resistanceat 500VDC,100MΩ Min.
Dielectric StrengthAC 600VAC RMS (50-60HZ)
Storage Temperature-40°C~+85°C
Storage Humidity85%RH Max
Service LifeElectrical10,000 cycles
Mechanical1,000,000 cycles
