In modern vehicle design, the driving experience is defined by precision and safety. The Electric Power Steering (EPS) system has become a standard, using an electric motor to provide steering assistance. While the motor provides the power, a small component ensures the system doesn't destroy itself: the micro switch. This article explores how Unionwell’s G306 series micro switches safeguard EPS systems through precise limit detection.
The Electric Power Steering (EPS) system relies on an Electronic Control Unit (ECU) to collect real-time signals such as steering torque, vehicle speed, and steering angle.
Low Speed (e.g., Parking): The ECU outputs high motor assistance, making the steering wheel light and easy to turn.
High Speed (e.g., Highway): The ECU reduces assistance to maintain directional stability and road feel.
Safety Backup: In case of sensor or motor failure, the EPS can switch to a mechanical steering mode to ensure basic control safety.
Within this complex system, the micro switch serves a vital function as a limit or safety feedback device.

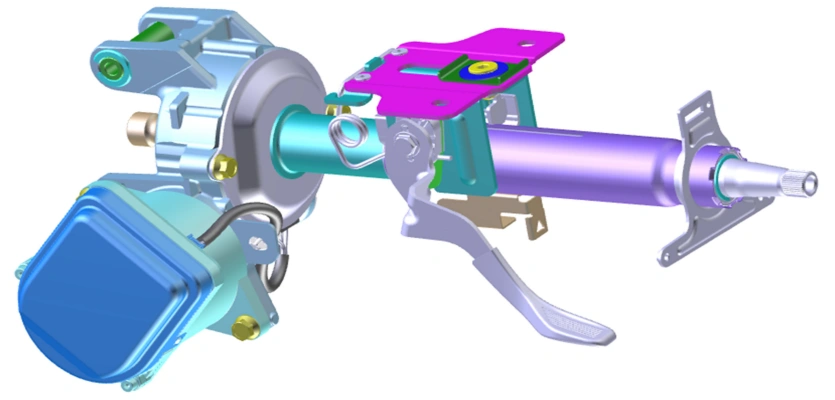

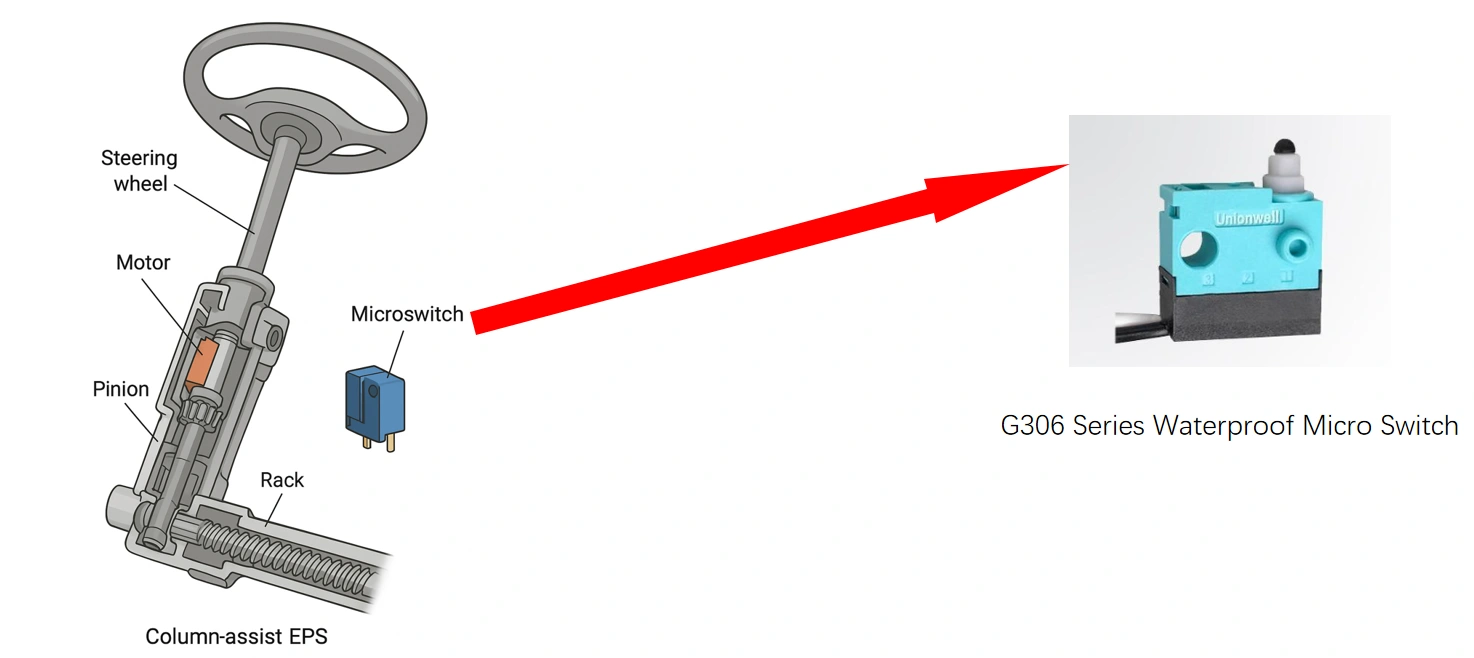

1. Installation PositionThe micro switch is typically installed at the output shaft of the steering column motor or at the end of the reduction gearbox, which corresponds to the mechanical limit position of the mechanism.
2. Working Principle: The Limit Detection ProcessThe interaction between the steering mechanism and the micro switch follows a precise sequence:
Normal Steering: As the driver turns the wheel, the ECU controls the motor assistance based on torque sensors. In this range, the micro switch remains untriggered.
Approaching Limit: As the steering column rotates near its mechanical limit, linkage parts (such as a limit cam or gear shoulder) gradually contact the switch.
Limit Reached: Once the maximum stroke is achieved, the micro switch is depressed (contacts close or open), immediately sending a "Limit Reached" signal to the ECU.
System Response: Upon receiving this signal, the ECU immediately cuts off or reduces the motor drive current.
Without this feedback loop, the motor might continue to apply force against a mechanical stop. The micro switch prevents:
Motor overload and overheating.
Damage to the gearbox.
Mechanical deformation of the steering column.
For such a critical safety application, reliability is non-negotiable. The Unionwell G306 Series Waterproof Micro Switch is specifically recommended for this application. Its waterproof design ensures consistent performance even in the challenging environment of an automotive chassis.
Why Choose Unionwell?Guangzhou Unionwell (brand owner of Unionwell and Huizhou Greetech) stands out in the global market:
Global Certification: Our switches hold comprehensive safety certifications (UL, ENEC, CQC, etc.), ensuring high life expectancy and reliability.
Cost-Effective Quality: We offer quality comparable to top-tier international brands but at a competitive price point.
Customization: We provide a wide variety of terminal configurations and can customize switch kits based on specific customer applications.
The reliability of an EPS system depends on the quality of its smallest components. Unionwell’s G306 series offers the precision and durability required to protect steering systems from mechanical failure.
Looking for a certified micro switch solution for your automotive project? Contact Unionwell today for product specifications and samples.
