Pursue quality with sincerity and settle comfort with time

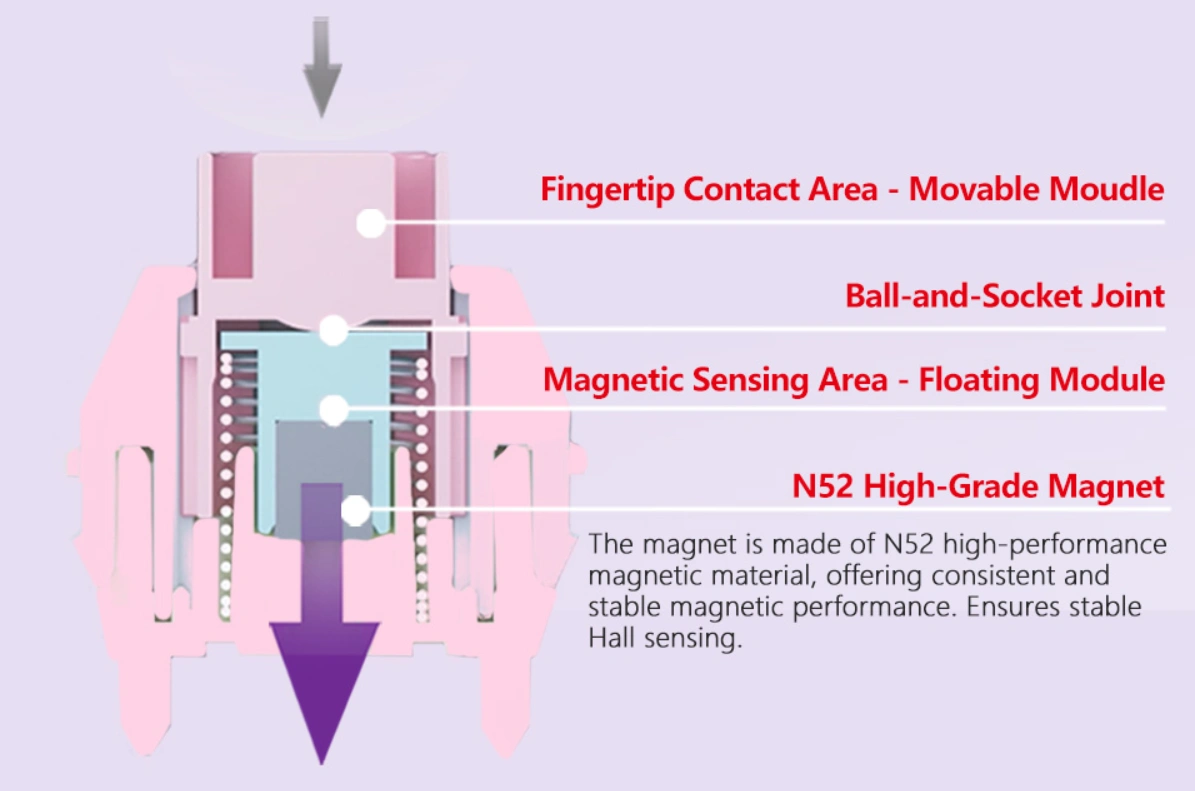

Vertical Pressing State
Vertical Pressing - Both modules press down synchronously, accuratelytriggering the signal.

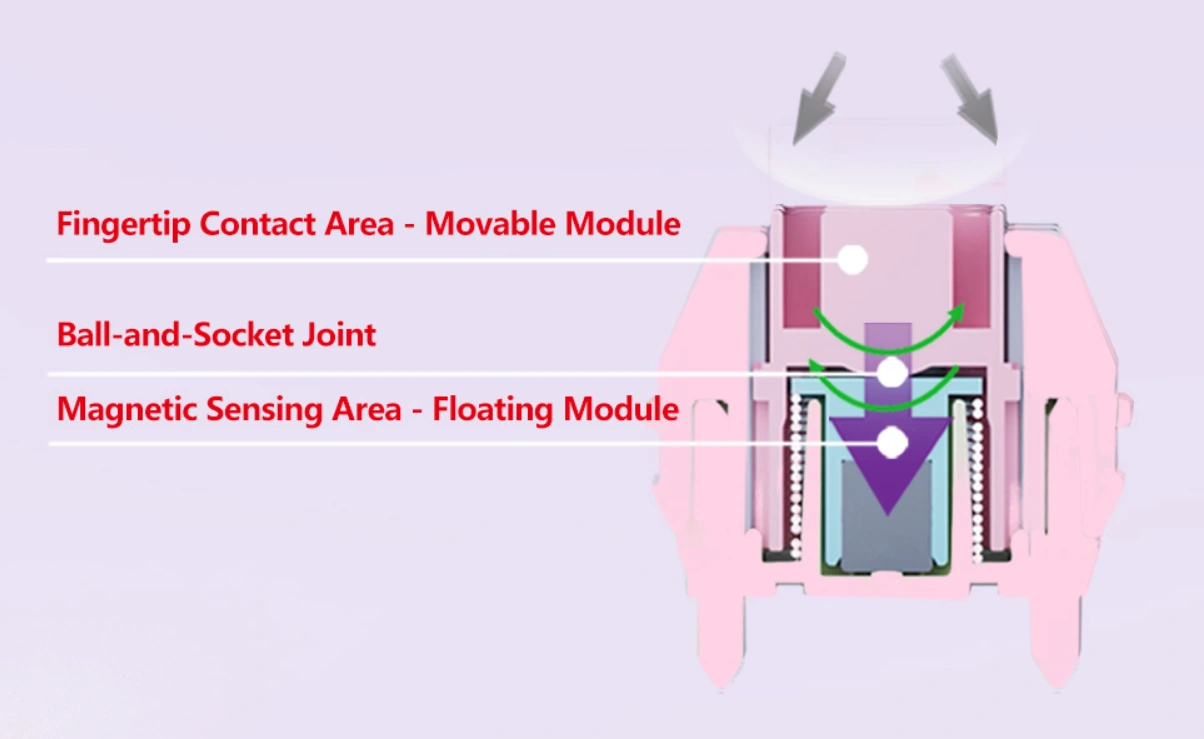

Lateral Pressing State
During Lateral Pressing → The movable module automatically fine-tunes thedeflection angle via the ball-and-socket joint, while the floating modulemaintains vertical stability, preventing magnetic field deviation.

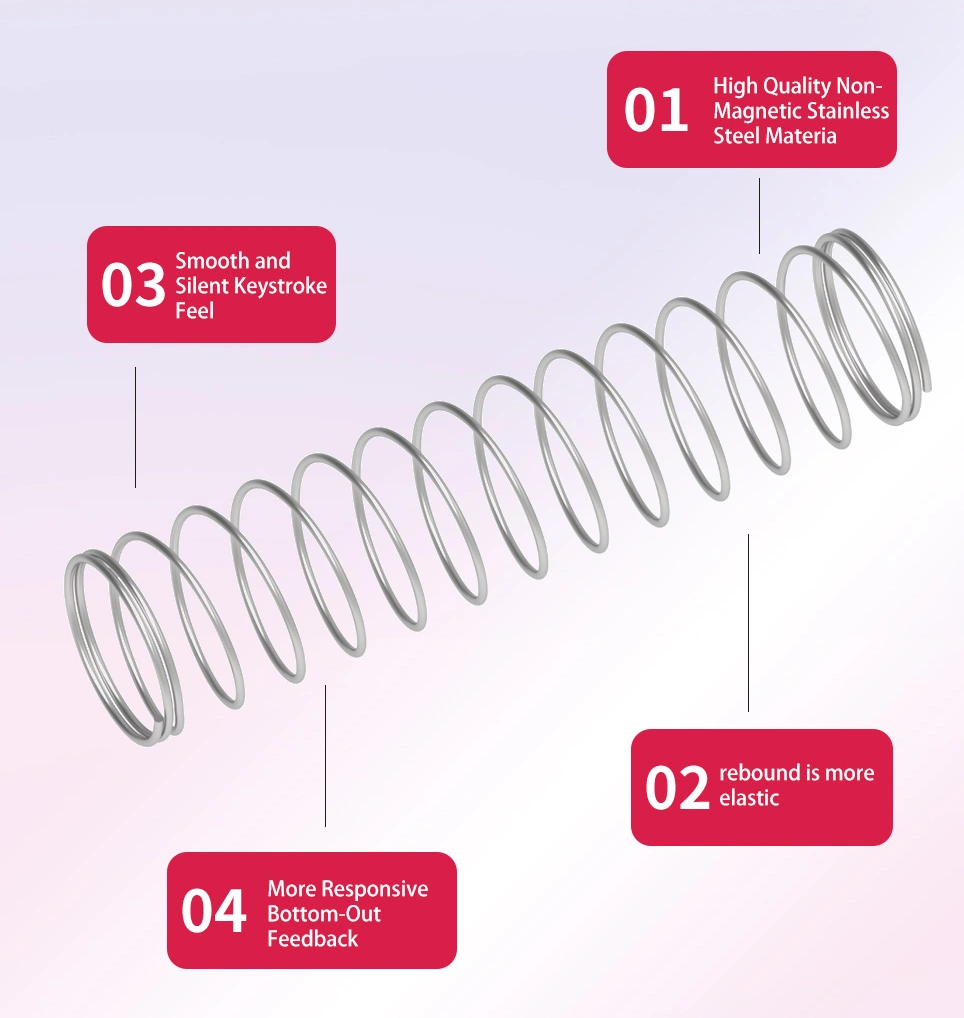

Silky smooth feel and no noise,More sensitive bottoming feedback,rebound is more elastic

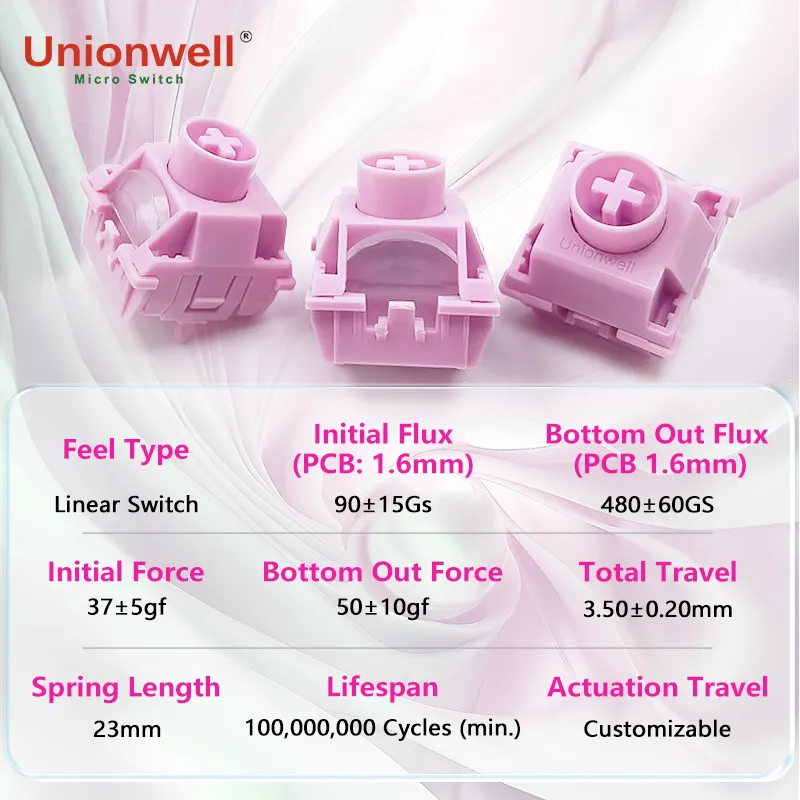

Feel Type | Linear Switch |
| Initial Flux（PCB: 1.6mm） | 90±15Gs |
| Bottom Out Flux（PCB: 1.6mm） | 480±60Gs |
| Initial Force | 37±5gf |
| Bottom Out Force | 50±10gf |
| Total Travel | 3.50±0.20mm |
| Spring Length | 23mm |
| Lifespan | 100,000,000 Cycels(min.) |
| Actuation Travel | Customizable |
