Best Waterproof Micro Switch Options for Outdoor Equipment, Appliances, and Vehicles in 2025

                           Waterproof micro switches may look small, but they play a critical role in ensuring safety, accuracy, and durability in outdoor equipment, home appliances, automotive systems, and even charging infrastructure. As designs become more compact and weather exposure becomes more severe, choosing the right sealed micro switch in 2025 is more important than ever.

Below is a clear and practical guide covering what matters most, where each switch type works best, and which manufacturers stand out this year.

Quick Buyer’s Checklist — What Matters Most

1. IP Rating

• IP67: Protection against dust and temporary immersion — widely suitable for outdoor tools, appliances, and many automotive modules.

• IP68/IP69K: Required for deep immersion or high-pressure water jets.

2. Sealing Structure

• Rubber boot sealing, housing gasket sealing, or cable overmolding.

• Higher-end applications may require hermetic sealing.

3. Electrical Rating & Contact Material

• Match rated load, inrush current, and expected life cycles.

• For inductive loads, choose silver alloy contacts with endurance curves provided by the manufacturer.

4. Actuator Type & Mechanical Fit

• Plunger, roller lever, simulated roller, hinge lever — choose based on travel and operating force requirements.

5. Environmental Validation

• Salt-spray, vibration, thermal shock, automotive-grade tests (if needed).

• Life cycle testing under wet conditions, not only dry lab cycles.

Best Options by Application

1. Outdoor Power Equipment

Ideal choice: IP67 sealed micro switches with stable operating force.
Lawnmowers, trimmers, outdoor robots, and irrigation controllers require switches that resist water, mud, vibration, and temperature fluctuations.

What to look for:
– Overmolded leads
– Reinforced plunger or roller actuators
– ≥50,000–100,000 actuation cycles in wet conditions

2. Home Appliances (Washers, Outdoor Kitchen Devices, Coffee Machines)

Ideal choice: Compact sealed switches with PCB or wire-lead options.
Appliances face splashes or steam rather than full immersion, so well-designed IP67 solutions are sufficient.

3. Vehicles & EV Charging Devices

Ideal choice: Automotive-grade waterproof micro switches with high vibration and corrosion resistance.
Used in door locks, tailgate systems, seat mechanisms, charging connectors, and sensor modules.

Why:
– Exposure to road salt, moisture, dust
– Safety-critical detection
– High temperature cycling

Leading Manufacturer & Product Families to Evaluate (2025)

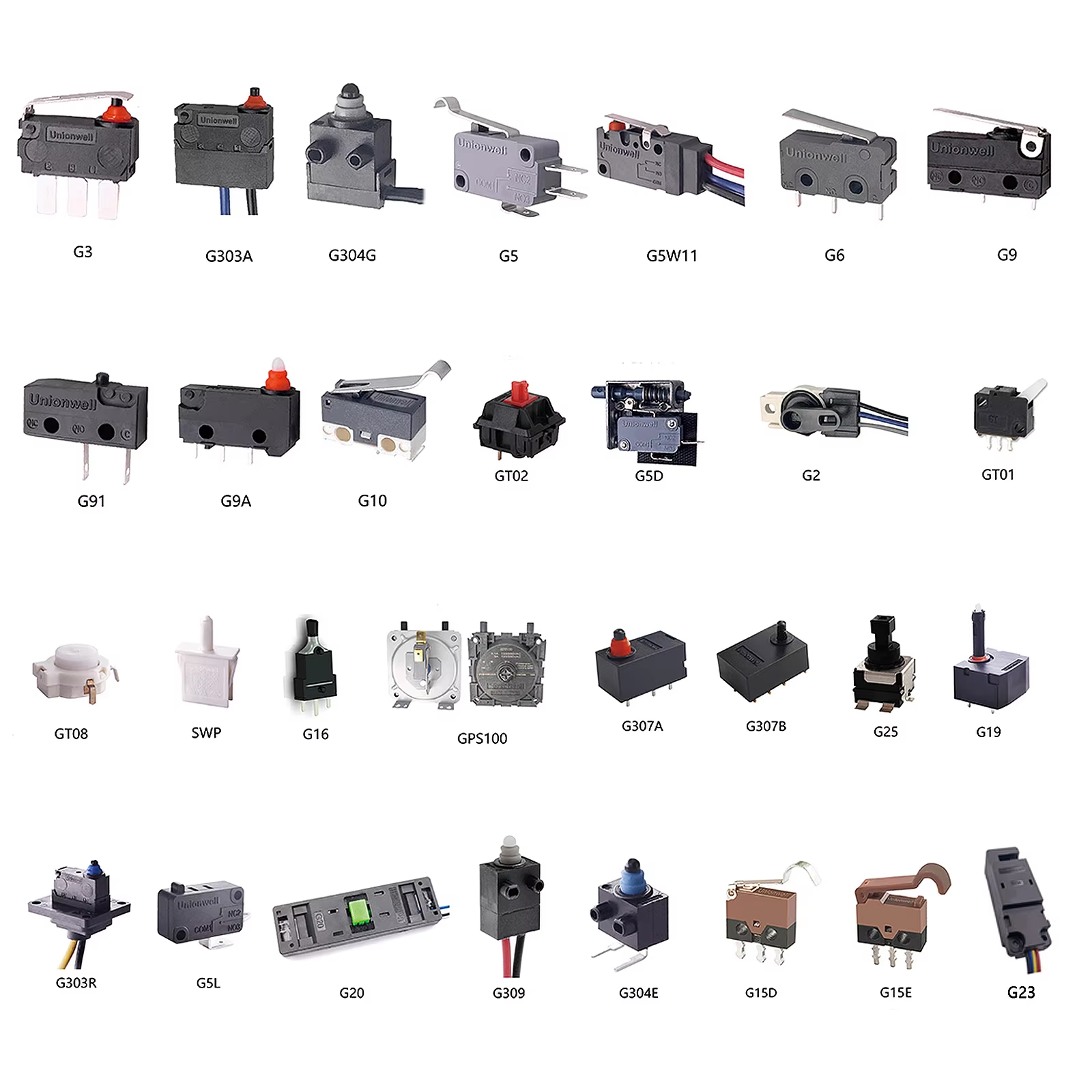

Unionwell

Unionwell specializes in micro-switch manufacturing with a strong global reputation in automotive waterproof micro switches, appliance switches, and outdoor-grade IP-rated components.

Why Unionwell leads in 2025:

• Full portfolio of IP40–IP67 sealed micro switches

• Strong cost-performance advantage versus Omron, Cherry, Honeywell

• Automotive-grade reliability and certifications (UL, cUL, ENEC, CQC, etc.)

• Expertise in snap-action micro switches, automotive sealed switches, and customized 12V micro switch solutions

• Proven performance in harsh-environment applications such as tailgate systems, side-door locks, EV charging ports, garden equipment, and HVAC dampers

Unionwell’s waterproof series demonstrates stable operating force, compact design, and long electrical life, making them highly suitable for both OEM and high-volume applications.

Practical Selection Guide for 2025 Projects

1. Start from the environment
   – Splash → IP67
   – Outdoor + mud → IP67 sealed lever
   – Vehicle exterior → Automotive-grade IP67/68
   – Underbody or high-pressure wash → Consider IP69K

2. Match the mechanics
   – If tolerances are tight: plunger type
   – If there is mechanical play or vibration: roller lever or simulated roller

3. Request validation documents
   – IP test report
   – Life-cycle curves
   – Salt spray
   – Vibration & drop tests
   – Automotive-grade PPAP (if applicable)

4. Test inside your enclosure
   A switch with IP67 rating can still fail if the enclosure design traps water or allows capillary moisture into the terminals.

Final Recommendations

• For outdoor equipment and appliances, choose IP67 sealed micro switches with stable operating force and proven sealing structure.

• For automotive and EV charging, prioritize automotive-grade Unionwell waterproof switches, which strike the best balance of performance, reliability, and cost in 2025.

• Always validate the selected component in real-world wet conditions — not just dry lab cycles.
