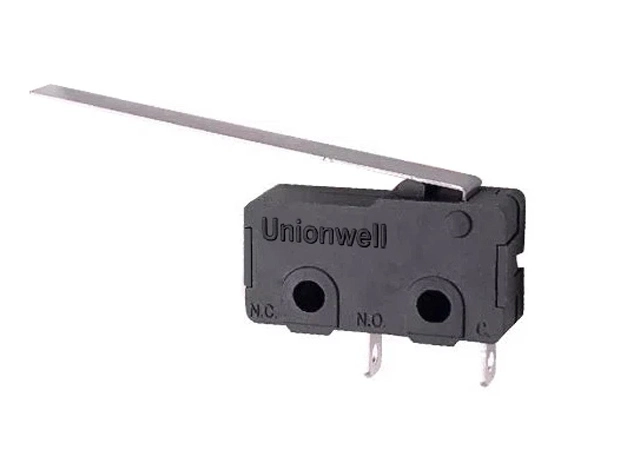

Name: Miniature Micro Switch 100gf Solder Terminals G6
Brand: Guangzhou Unionwell Sensing & Control Technology Co., Ltd.

Description of Miniature Micro Switch 100gf Solder Terminals

At present, the snap action switches for household appliances make people’s lives easier. However, many friends are unfamiliar with snap action switches, so they will ask this question: what is the reasonable price for a snap action switch? Its price is divided into different levels. High-quality snap action switches will select suitable raw materials for micro switches so the price will go high. While low-quality snap action switches will choose cheap raw materials, the price will go low.

Quick Details of Miniature Micro Switch 100gf Solder Terminals

Place of Origin: Guangdong, China (Mainland)
Brand Name: Unionwell
Model Number:G605-100S04C
Terminal Type: Solder Terminals
Circuit code: SPST-NO
Lever Type: Long Straight Lever

Specifications of Miniature Micro Switch 100gf Solder Terminals

Rating	P1/P11/P12	ENEC: 0.1A, 125/250V 48VDC 5EA
		UL : 0.1A, 125/250V 48VDC
		Gold Plated Contact Optional
	05/051/052	EN EC: 5A,125/250VAC
		UL: 5A, 1/8HP 125/250VAC
	10/101	EN EC: 10(2)A,125/250VACp 25T125
		UL:10.1A,1/4HP 125/250VAC
		Note: 250gf/Only with "OF "over "250gf"
	12	EN EC: 12(6)A,125/250VAC μ 40T125
		UL:12A, 125/250VAC
		Note: 350gf/Only with 350gf OF
Operating Frequency	Electrical	10-30 cycles/minute
	Mechanical	120 cycles/minute
Contact Resistance (Initiative )		100mΩ Max (without wire type)
Insulation Resistance (at 500VDC)		100MQ Min
Dielectric Strength		AC 1,000RMS (50-60Hz)
Storage Temperature		-25℃~+125℃
Storage Humidity		85%RH Max
Service Life	Electrical	10,000-50,000 cycles (Depend on part No.)
	Mechanical	1,000,000 cycles
