Mini Waterproof Micro Switch G307
mini waterproof micro switch g307

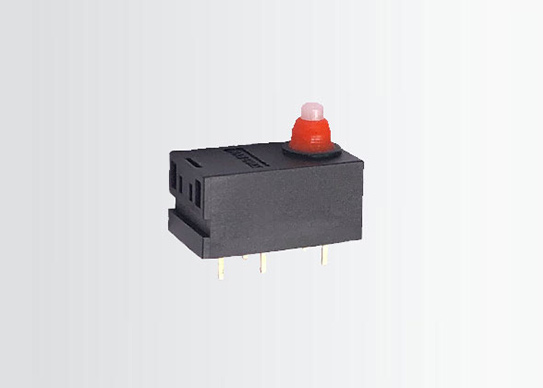

mini waterproof micro switch g307

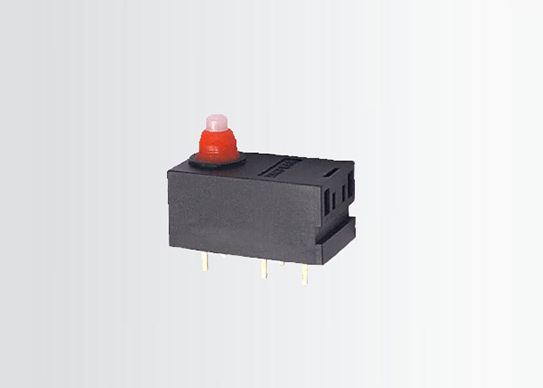

mini waterproof micro switch g307 1

Mini Waterproof Micro Switch G307

  • Highly reliable and capable of withstanding challenging operational conditions

  • Mute structure with double sliding connections

  • With high-temperature resistance (+85 °C) and a waterproof design, it can be used in a variety of situations and provides IP67-level protection (except terminals)

  • Widely used in industrial control, household appliances, and vehicle electronics, among other things

Contact Us Datasheet

Specifications of Mini Sealed Micro Switch G307

Place of OriginGuangdong, China (Mainland)
Brand NameMicro Switch Manufacturer Unionwell
Model NumberG307
Max Operating  Force (at pin plunger)150gf/Others
Terminal TypePCB/Surface Mounted Terminals
Lever TypeNo Lever/#1 Lever
Circuit CodeDPDT/DPST-NO/DPST-NC
CertificationsENEC, UL/cUL, CQC
OEM/ODMAvailable
Operating  Linear Speed1~500mm/s (depending on the actuating method)
Operating  Frequency120cycles/min
Insulation Resistance≥100MΩ (500VDC Insulation Resistance Meter)
Contact Resistance (Initial Value)with terminals≤100mΩ
Voltage Resistancebetween terminalsAC500V, 50/60Hz, 1min.
between terminals and unelectrified metal partsAC1000V, 50/60Hz, Imin.
Vibration Durability10-55Hz Double amplitude 1.5mm
Service LifeElectrical300,000cycles（20 cycles/min）
0.1A 12VDC; 50μA 5VDC
Mechanical300,000cycles（30 cycles/min）
Protection LevelIEC IP67 (Except for the terminals)
Operating  Temperature-40°C~+85°C
Operating  Humidity85%RH Max


Products

Product Drawing of Mini Waterproof Micro Switch G307

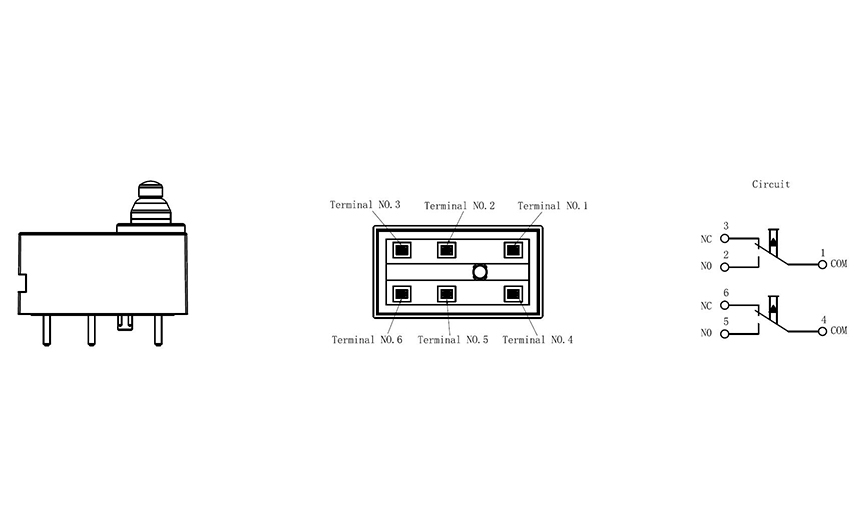

micro switch in car

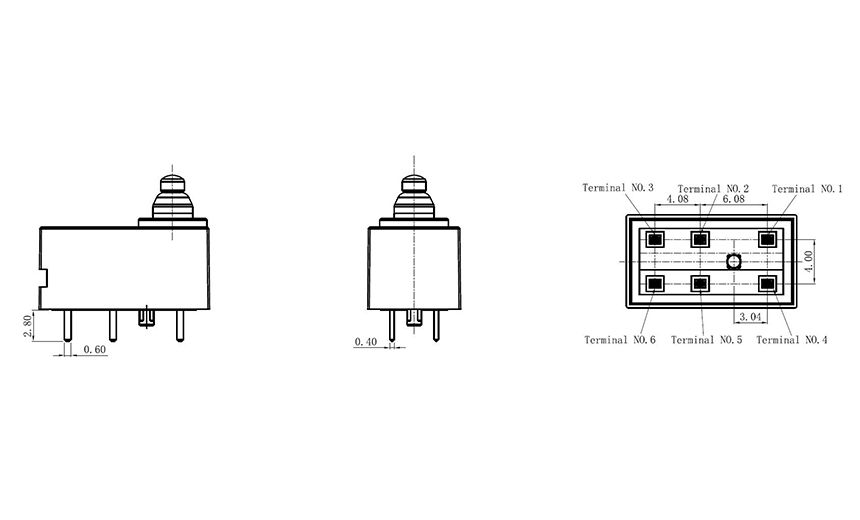

micro switch in car 3

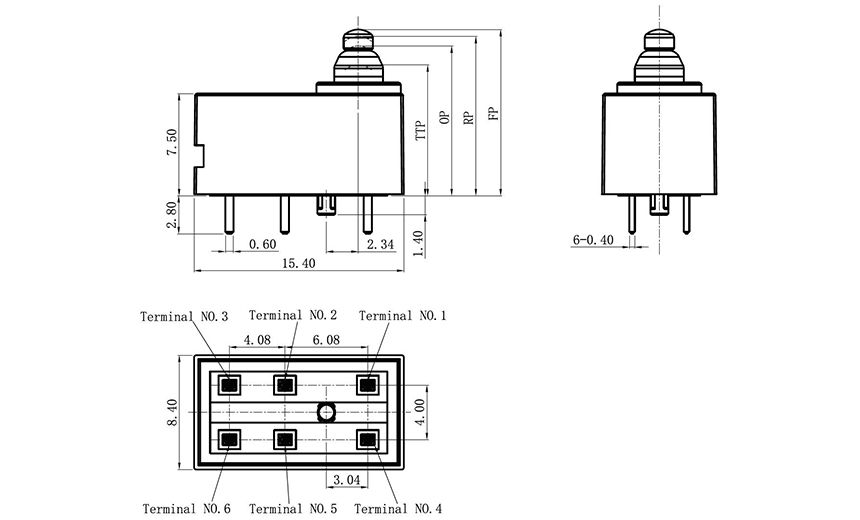

micro switch in car 5

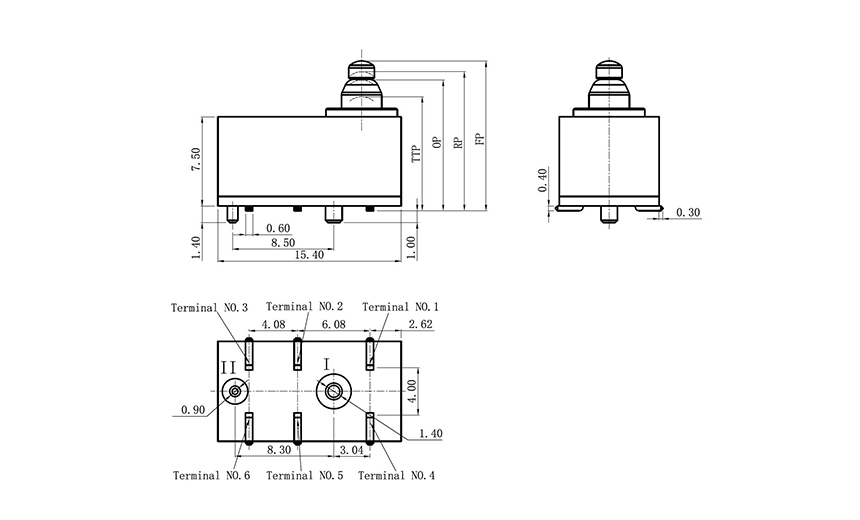

micro switch in car 6

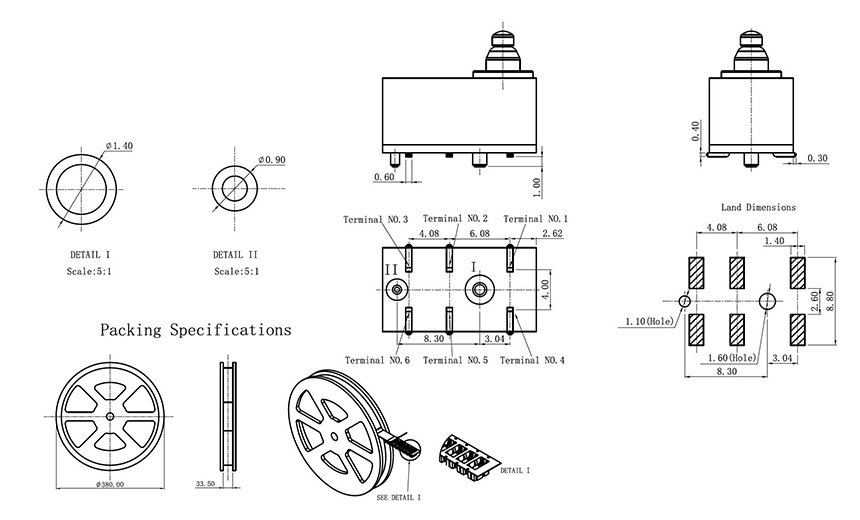

micro switch in car 4

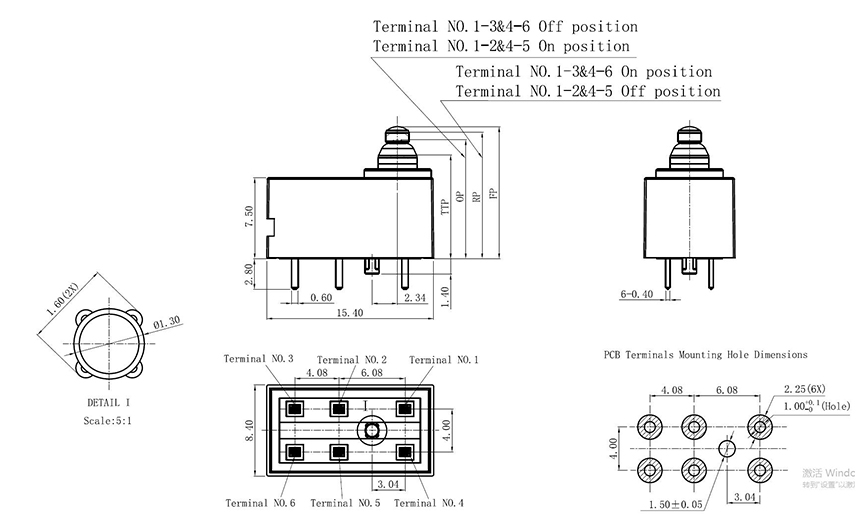

micro switch in car 2

Mini Waterproof Micro Switch G307 Related Applications

Custom Mini Waterproof Micro Switches Used in Automotive Industry
Automotive
