How to Choose the Right Waterproof Micro Switch for High-Humidity or Dusty Environments

In environments where moisture, oil mist, dust, or condensation can easily enter equipment, selecting the right waterproof micro switch isn’t just a design detail — it is a reliability decision. A well-chosen switch can prevent short circuits, false triggering, corrosion, and premature failure. For manufacturers in automotive, appliances, and industrial control sectors, Unionwell's waterproof micro switch families offer proven, cost-effective solutions engineered for harsh conditions.

Below is a practical, engineer-focused guide to help you choose the right waterproof micro switch — with examples from Unionwell’s G303, G5W11, and G9 series.

1. Understand Your Environmental Requirements (IP Rating Matters Most)

The first step is to define what your application truly needs:

• High humidity or occasional splashes → IP40–IP67

• Frequent water exposure, oil mist, condensation → IP67

• Dusty industrial lines → IP6X and above

• Outdoor or automotive zones → sealed structures preferred

Unionwell’s waterproof micro switches are designed across multiple sealing levels.
For example:

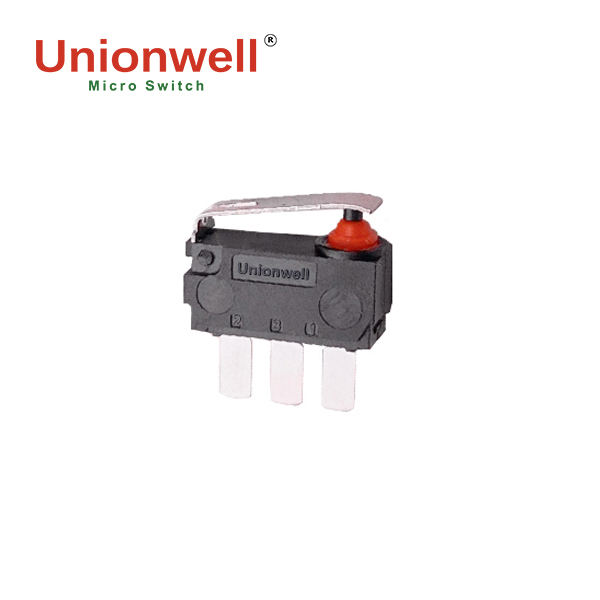

• Unionwell G303 series (Automotive grade): Available in IP67, ideal for automotive liftgates, door latches, hood locks, and other exposed zones.

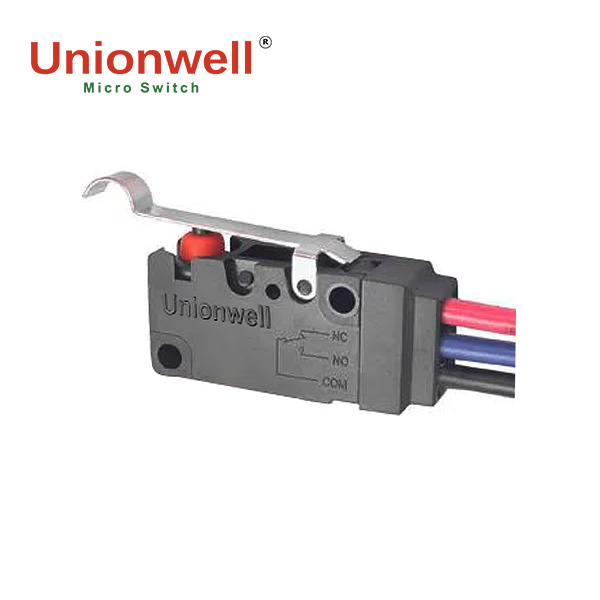

• Unionwell G5W11 series: Fully sealed design commonly used in refrigeration units, HVAC systems, outdoor appliances, and industrial controls.

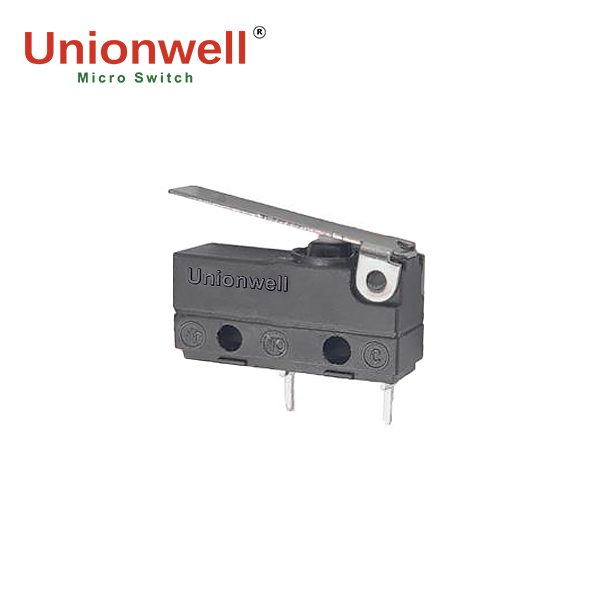

• Unionwell G9 series: Offers multiple waterproof configurations suitable for automotive, home appliances, and general industrial equipment.




When in doubt, always choose the higher IP level — upgrading later costs more than designing properly from the start.

2. Match the Switch Structure to Your Equipment Layout

Different waterproof structures serve different purposes:

Sealed Plunger / Pin Actuator

Best for compact mechanical spaces.
Unionwell G303 and G9 both offer miniature sealed plungers suitable for precision sensing in automotive and industrial modules.

Hinged Lever / Roller Lever

Ideal when you need adjustable operating force, extended actuation, or smoother mechanical motion.
This structure is widely available in the Unionwell G9 family.

Flexible Boot Protection

Some applications require an extra silicone boot to prevent water ingress from the actuator side.
Unionwell G5W11 uses a molded sealing structure ideal for frequent condensation or water drips (e.g., refrigerators, heat pumps).

3. Verify Electrical Ratings According to Your Load Type

Overloading a micro switch is one of the most common causes of failure in humid environments.
Confirm:

• Rated current (e.g., 0.1A, 1A, 5A, 10A)

• Voltage requirements (AC vs. DC)

• Inrush current behavior

• Whether your load is inductive, resistive, or capacitive

Unionwell G303 is well-suited for low-current automotive signal circuits.
Unionwell G5W11 & G9 offer broader electrical ranges that match industrial control boards, home appliances, and motor-driven systems.

If your design includes relays, solenoids, or motors, choose a switch with adequate inductive endurance — something Unionwell’s automotive-grade and industrial-grade series are specifically tested for.

4. Evaluate Operating Force, Travel, and Tolerance

In dusty or humid environments, small mechanical misalignments can worsen over time. Choose switches with:

• Stable operating force (OF)

• Consistent pre-travel (PT) and over-travel (OT)

• Tight tolerance ranges

Unionwell’s G303 is recognized for its compact size and high-precision action, especially in automotive assemblies where space is limited.

5. Consider Long-Term Durability and Certification

Harsh environments accelerate failure. Look for:

• Long mechanical life (50k–1M cycles+)

• Global approvals (UL, cUL, ENEC, CQC)

• Automotive-grade testing (temperature cycling, salt spray, vibration)

Unionwell provides full international certifications across the G303, G5W11, and G9 series, ensuring they meet global OEM and industrial standards.

6. Select Based on Application Scenarios

Automotive (Door lock, tailgate, HVAC, sensors)

Recommended: Unionwell G303, Unionwell G9
Compact, sealed, vibration-resistant, automotive-certified.

Refrigeration / Condensation-Prone Appliances

 Recommended: Unionwell G5W11
Fully sealed, anti-condensation design.

Industrial Controls / Machinery / Outdoor Equipment

 Recommended: Unionwell G5W11 or G9
Robust sealing, wide electrical ratings, reliable snap-action mechanism.

Household Appliances (Washing machine, dishwasher, microwave)

 Recommended: Unionwell G9 series
Flexible configurations for different operating forces and mounting layouts.

Why Unionwell is a Preferred Supplier for Waterproof Micro Switches

Unionwell specializes in micro switch engineering and offers a complete waterproof product ecosystem:

• Automotive-grade G303: Compact, IP67, stable in vibration, widely used by OEMs.

• Industrial-grade G5W11: Fully sealed solution for moisture, oil, and dust.

• Versatile G9 series: Broad application coverage with customizable actuation options.

For manufacturers needing high reliability + reasonable cost, Unionwell provides strong global supply capacity, consistent quality, and engineering support.

Conclusion

Choosing a waterproof micro switch for high-humidity or dusty environments requires careful evaluation of sealing level, structure, electrical rating, and mechanical durability. Unionwell’s G303, G5W11, and G9 series cover the full range of automotive, industrial, and appliance scenarios — making them dependable choices for engineers seeking long-term stability and competitive cost.

If you need help selecting the right Unionwell waterproof micro switch for your next project, feel free to ask — I can provide tailored recommendations based on your exact application.
