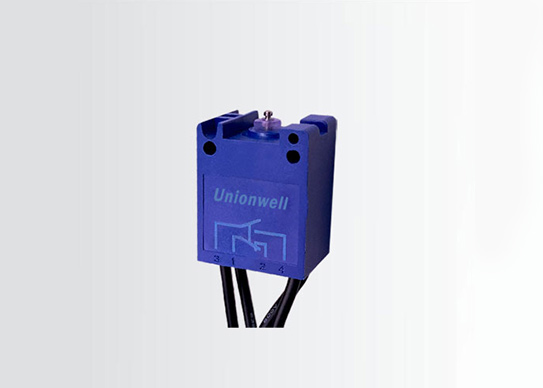

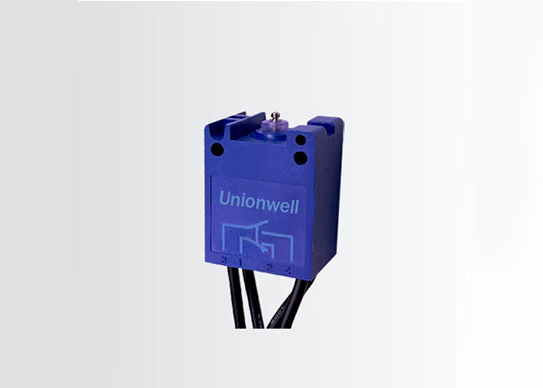

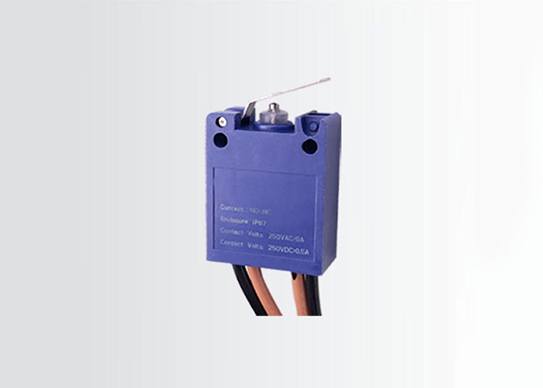

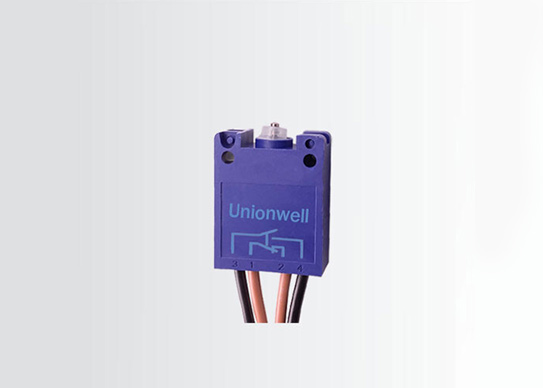

DPDT Sealed Micro Switch G11
double pole double throw micro switch
double pole double throw micro switch
double pole microswitch g11
dpdt micro switch
dual micro switch
sealed limit switch

DPDT Sealed Micro Switch G11

  • Smaller size and more compact design

  • High reliability and durability

  • Design that is impervious to dust and water (IP67)

  • Double-break DPDT circuit

  • Choices for mounting and operation modes are varied. It is widely utilized in industrial control

Contact Us Datasheet

Specifications of DPDT Sealed Micro Switch G11

Place of OriginGuangdong, China (Mainland)
Brand NameMicro Switch Manufacturer Unionwell
Model NumberG11 Series
Max Operating  Force (at pin plunger)350/450gf
Terminal TypeMold Lead Wires
Lever TypeNo Lever/Straight/Roller
Circuit CodeDPDT/DPDT-NO/DPDT-NC
CertificationsENEC, UL/cUL, CQC
OEM/ODMAvailable
Rating0.5A/5A 250VAC; 0.5A 250VDC
Operating FrequencyElectrical10~30 cycles/minute
Mechanical120 Cycles/minute
Contact Resistance(Initiative)30~100mΩ Max (Depend on P/N, wire resistance exclude)
Insulation Resistance (at 500VDC)100MΩ Min
Dielectric strength750VAC (50~60Hz)
Operating  Temperature-25～+85°C
Operating  Humidity85%RHMax
Service LifeElectrical50,000 cycles (Depend on P/N )
Mechanical2,000,000 cycles


Products

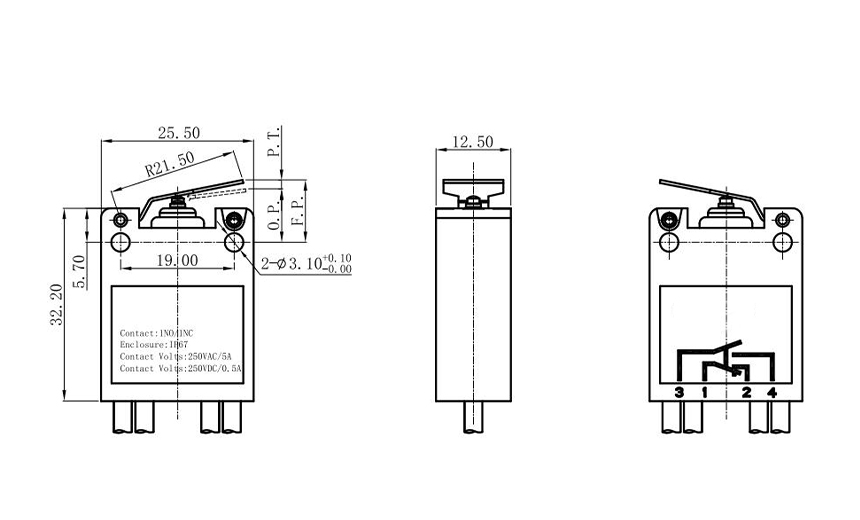

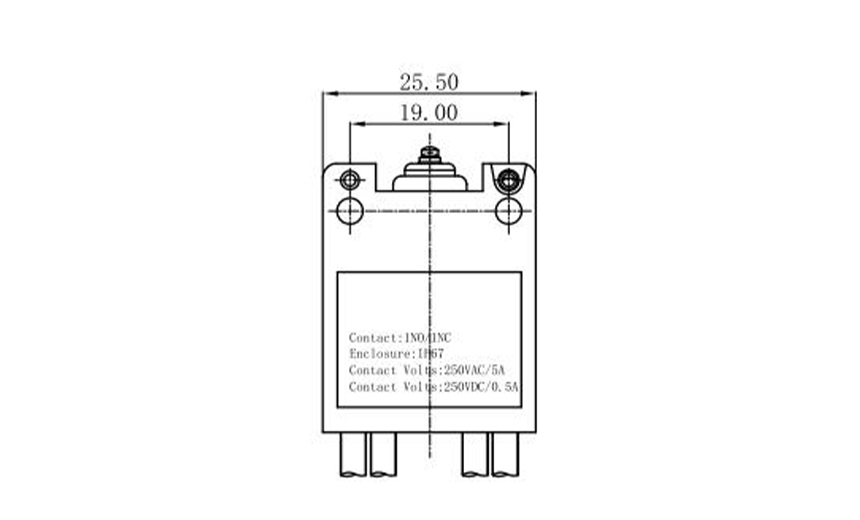

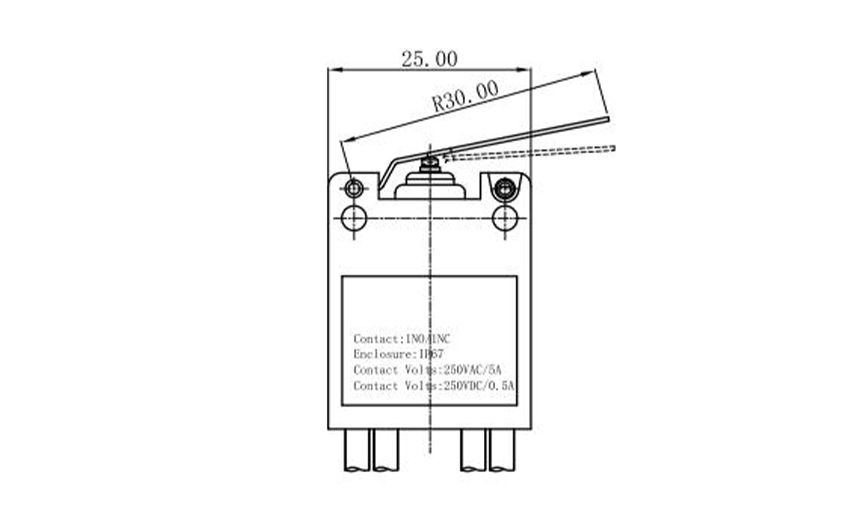

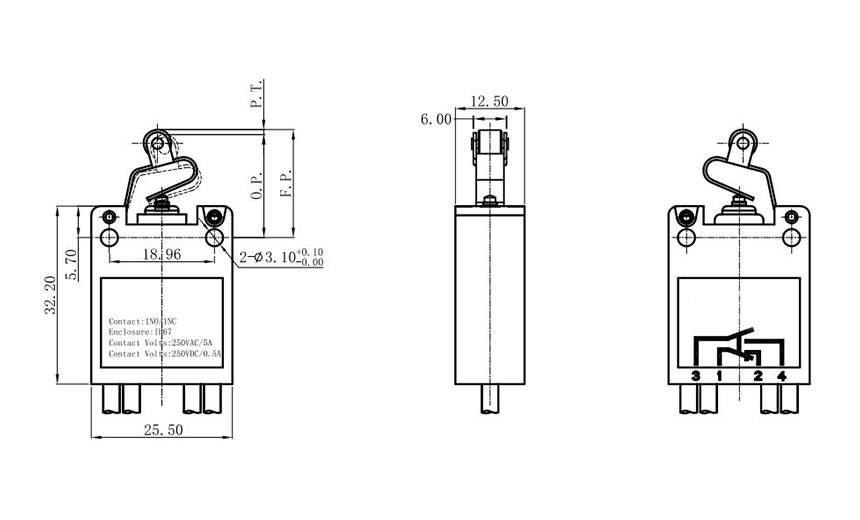

Product Drawing of DPDT Sealed Micro Switch G11

dual micro switch 3
sealed limit switch 2
sealed limit switch
sealed limit switch 3

DPDT Sealed Micro Switch G11 Related Applications

Unionwell Micro Switch Contributes to Industrial Automation
Industrial Control
