Sealed Micro Switch With Spherical Pin Plunger G9
Sealed Micro Switch With Spherical Pin Plunger
Sealed Micro Switch With Spherical Pin Plunger

Sealed Micro Switch With Spherical Pin Plunger G9

  • IP67 Sealed Design: Dust and waterproof for reliable performance in harsh conditions

  • Compact Size: Space-saving design with spherical pin plunger for smooth actuation

  • 5A Electrical Rating: ENEC/CQC: 6A @ 125/250VAC, UL/cUL: 5A @ 125/250VAC

  • SPST-NC Circuitry: Single-pole, single-throw normally closed

  • Long Life & High Reliability: Up to 100,000 electrical cycles, 500,000 mechanical cycles

  • Wide Temperature Range: Operates from –25°C to +120°C

  • Versatile Applications: Ideal for automotive control, appliances, and industrial systems

Contact Us

Micro switches, also known as miniature snap-action switches, are small devices that respond to physical pressure or changes in position. These switches are widely used in various industries such as automotive, telecommunications, and consumer electronics due to their precision, versatility, and reliability.


The Features Of Sealed Micro Switch With Spherical Pin Plunger G9

  • Dust and water proof design (IP67)

  • Small compact size

  • Long life,high reliability

  • Variety of terminals and levers

  • Widely used in auto control,applianceand other industry control


Parameters

  RatingP10.1A 125/250VAC 48VDC 5E4 Gold Plated Contact Optional
05UL: 5A 125/250VAC
ENEC: 6A 125/250VAC 1E4;3A 125/250VAC 30VDC 25T120μ5E4
  Operating FrequencyElectrica


Mechanloa

10~30 cycles/min
120 cycles/min
  Contact Resistance (Initlal Value)100mΩ Max (It depends on the wire length for the type with wire)
  Insulation Resistance (at 500VDC)100MΩ Min
  Dielectric StrengthAC 1,000V RMS(50~60Hz)
  Operating Temperature-25℃~+120℃
  Operating Humidity85%RH Max.
  Service LifeElectrical10,000~100,000 cycles (Depend on P/N)
Mechanical500,000 cycles


Products
Contact with Us
Tel:
+86-20-87713867
E-mail:
inquiry@unionwellgz.com
Add:
RM1311, Renfeng Building, No. 490, Tianhe Road, Tianhe District, Guangzhou, Guangdong, China, 510630.
Unionwell
Switches are us, switch to us. Find quality micro switches at Unionwell

Popular IP67 Waterproof & Dustproof Mini Micro Switch G9 series

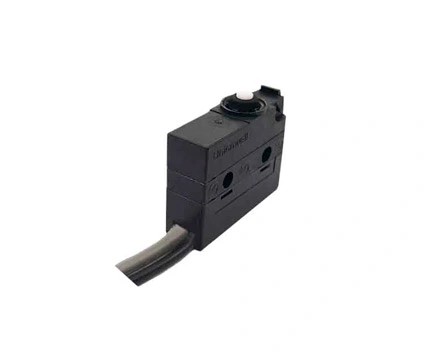

Spherical Pin Plunger Sealed Mini Micro Switch G905
