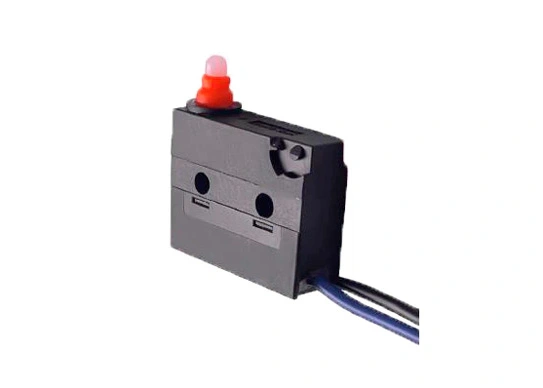

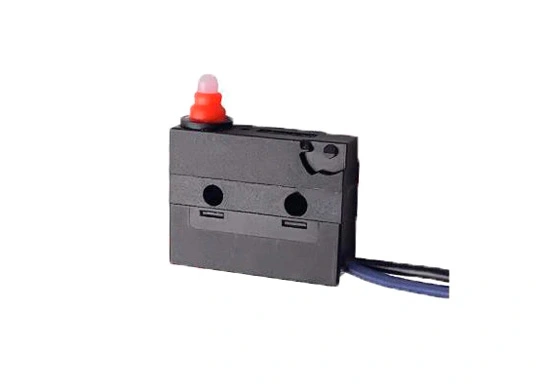

Sealed Mini Micro Switch 200GF IP67
Sealed Mini Micro Switch 200GF IP67
Sealed Mini Micro Switch 200GF IP67
Sealed Mini Micro Switch 200GF IP67

Sealed Mini Micro Switch 200GF IP67

  • Place of Origin: Guangdong, China (Mainland)

  • Brand Name: Unionwell

  • Model Number: G9A05-200F00CF-40-T016

  • Terminal Type: Wires Leads to Side

  • Circuit Code: SPDT

  • Lever Type: No Lever Pin Plunger

Specifications of Sealed Mini Micro Switch 200GF IP67

Rating

P1

0.1A 125/250VAC 48VDC (GoldPlated Contact Optional)

05

UL: 5A 125/250VAC

ENEC: 6A 125/250 1E4; 3A 125/250VAC 30VDC 5E4 µ 25T120

Operating Frequency

Electrical

10~30 cycles/minute

Mechanical

120 cycles/minute

Contact Resistance (Initiative)

100mΩ Max (It depends on the wire length for the type with wire)

Insulation Resistance (at 500VDC)

100MΩ Min

Dielectric Strength

AC1,000V RMS (50~60Hz)

Storage Temperature

-25°C~+120°C

Storage Humidity

85%RH Max

Service Life

Electrical

10,000 cycles (Depend on part No.)

Mechanical

500,000 cycles
