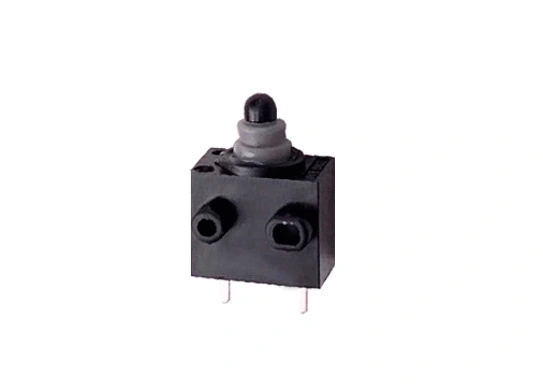

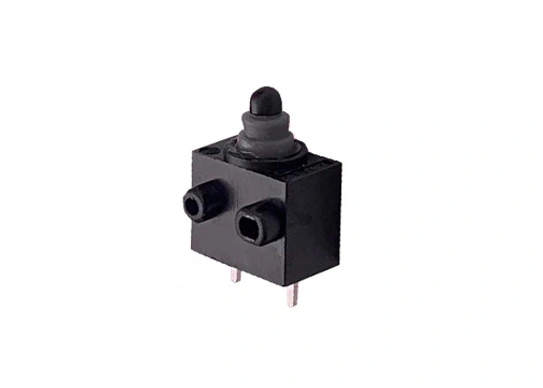

Subminiature Micro Switch PCB Terminals 150GF G304
Subminiature Micro Switch PCB Terminals 150GF
Subminiature Micro Switch PCB Terminals 150GF
Subminiature Micro Switch PCB Terminals 150GF

Subminiature Micro Switch PCB Terminals 150GF G304

  • Place of Origin: Guangdong, China (Mainland)

  • Brand Name: Unionwell

  • Model Number: G304-150P00E42I

  • Rating: 0.1A, 12VDC; 50μA 5VDC; 20μA 12VDC; 20mA 12VDC.

  • Terminal: Straight PCB Terminals

  • Circuit Code: SPST-NO

  • Lever type: No Lever Pin Plunger

Contact Us

Specifications of Subminiature Micro Switch PCB Terminals 150GF

Rating0.1A 125VDC; 50μA 5VDC; 20μA 12VDC: 20mA 12VDC
Operating FrequencyElectrical20 cycles/minute
Mechanical20 cycles/minute
Contact Resistance (Initiative)500mΩ Max
Insulation Resistance (at 500VDC)100mΩ Min
Vibration Durability10-55HZ, move 1.5mm(p-p)
Dielectric Strength500VAC(50~60HZ)
Operating Temperature-40℃~+85℃
Operating Humidity85% RH Max
Service LifeElectricalMin. 300,000/cycles
MechanicalMin. 300,000/cycles


Products
Contact with Us
Tel:
+86-20-87713867
E-mail:
inquiry@unionwellgz.com
Add:
RM1311, Renfeng Building, No. 490, Tianhe Road, Tianhe District, Guangzhou, Guangdong, China, 510630.
Unionwell
Switches are us, switch to us. Find quality micro switches at Unionwell

Popular IP67 Waterproof & Dustproof Clip-type Subminiature Micro Switch G304 series

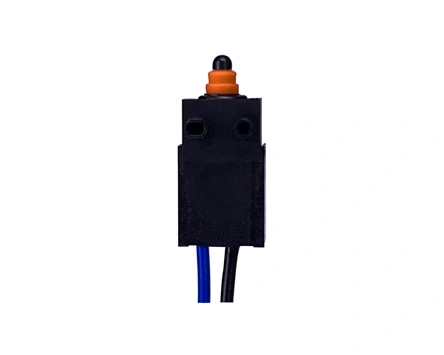

Sealed Subminiature Micro Switch Can Be Customized G304E
