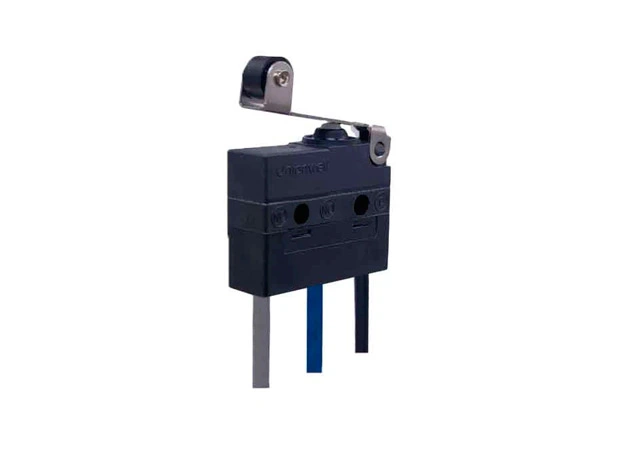

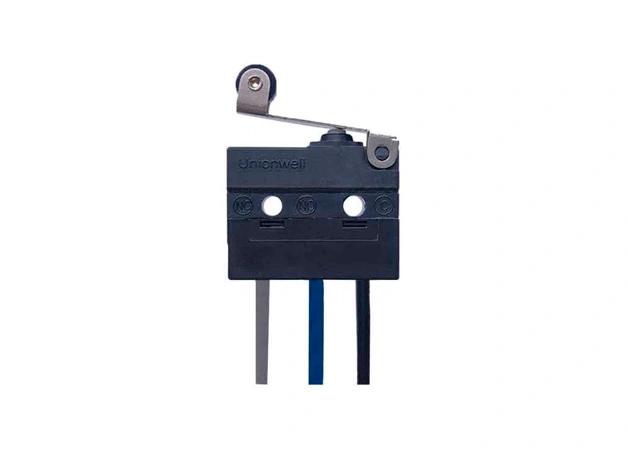

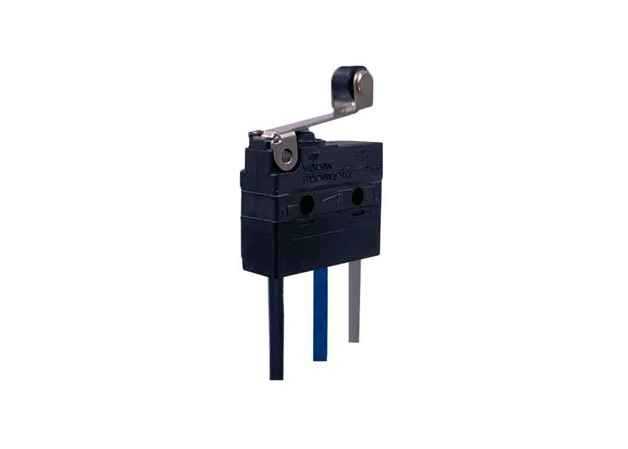

Wires Leadsto Bottom (500mm) Sealed Mini Micro Switch G905
Wires Leadsto Bottom (500mm) Sealed Mini Micro Switch G905
Wires Leadsto Bottom (500mm) Sealed Mini Micro Switch G905
Wires Leadsto Bottom (500mm) Sealed Mini Micro Switch G905
Wires Leadsto Bottom (500mm) Sealed Mini Micro Switch G905

Wires Leadsto Bottom (500mm) Sealed Mini Micro Switch G905

  • IP67 Sealed Housing: Dust- and waterproof for reliable use in harsh environments

  • 500 mm Bottom Wire Leads: Flexible installation without extra adapters

  • Compact SPDT Design: Single-pole, double-throw switching in a mini form factor

  • Robust Electrical Ratings: ENEC/CQC: 6 A @ 125/250 VAC (1E4), 3 A @ 125/250 VAC / 30 V DC (5E4); UL/cUL: 5 A @ 125/250 VAC

  • Long Service Life: Up to 100,000 electrical and 500,000 mechanical cycles

  • Wide Temperature Range: –25 °C to +120 °C operation and storage

  • Versatile Applications: Perfect for automotive controls, household appliances, and industrial automation systems

Contact Us

The Features Of Wires Leadsto Bottom (500mm) Sealed Mini Micro Switch G905

  • Dust and water proof design (IP67)

  • Small compact size

  • Long life,high reliability

  • Variety of terminals and levers

  • Widely used in auto control,applianceand other industry control


Parameters

  RatingP10.1A 125/250VAC 48VDC 5E4 Gold Plated Contact Optional
05UL: 5A 125/250VAC
ENEC: 6A 125/250VAC 1E4;3A 125/250VAC 30VDC 25T120μ5E4
  Operating FrequencyElectrica


Mechanloa

10~30 cycles/min
120 cycles/min
  Contact Resistance (Initlal Value)100mΩ Max (It depends on the wire length for the type with wire)
  Insulation Resistance (at 500VDC)100MΩ Min
  Dielectric StrengthAC 1,000V RMS(50~60Hz)
  Operating Temperature-25℃~+120℃
  Operating Humidity85%RH Max.
  Service LifeElectrical10,000~100,000 cycles (Depend on P/N)
Mechanical500,000 cycles
