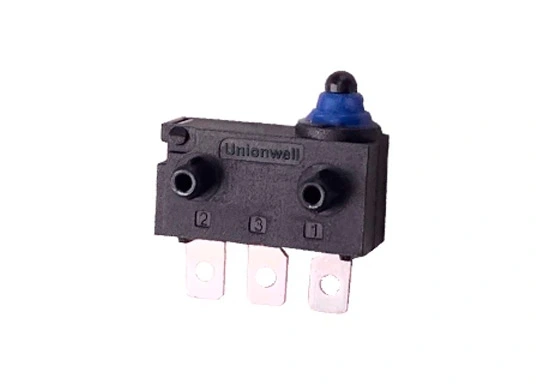

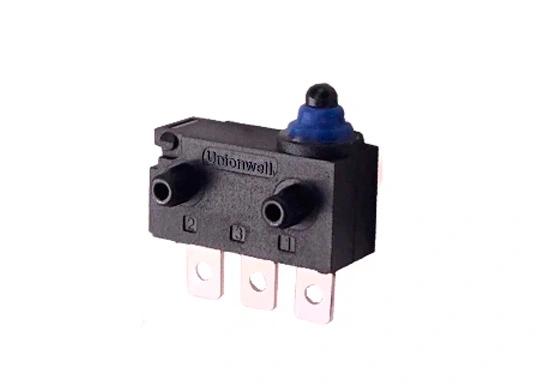

Subminiature Micro Switch 130GF No Lever Pin Plunger G303
Subminiature Micro Switch 130GF No Lever Pin Plunger
Subminiature Micro Switch 130GF No Lever Pin Plunger
Subminiature Micro Switch 130GF No Lever Pin Plunger

Subminiature Micro Switch 130GF No Lever Pin Plunger G303

  • Place of Origin: Guangdong, China (Mainland)

  • Brand Name: Unionwell

  • Model Number: G303-130K00A54CU

  • Terminal: Long Solder Terminals

  • Circuit Code: SPDT

  • Lever type: No Lever Pin Plunger

  • Designed for Water and Dust Tight (IP67)

  • Widely used in Automotive Electronics, Appliance control, Industrial Control, etc

Quote

Subminiature Micro Switch, a kind of electronic component, is widely applied in various industries and fields, such as automotive control systems, electrical tools and devices, medical machines, electronic products and equipment, industry control etc.


Specifications of Subminiature Micro Switch 130GF No Lever Pin Plunger

Rating0.1A, 125/250VAC; 3A/12VDC; 0.1A/48VDC; μ1E5
Operating FrequencyElectrical0.1A, 120 cycles/min 3A; 10~30 cycles/min
Mechanical120 cycles/minute
Contact Resistance (Initiative)100mΩ Max.(without wire type)
Insulation Resistance (at 500VDC)100mΩ Min.
Vibration Durability10~55Hz, move 0.75mm(p-p)
Dielectric Strength500VAC (50~60Hz)
Operating Temperature-40℃~+85℃
Operating Humidity85% RH Max
Service LifeElectricalMin.100,000 cycles(Depend on part NO.)
MechanicalMin.500,000 cycles
