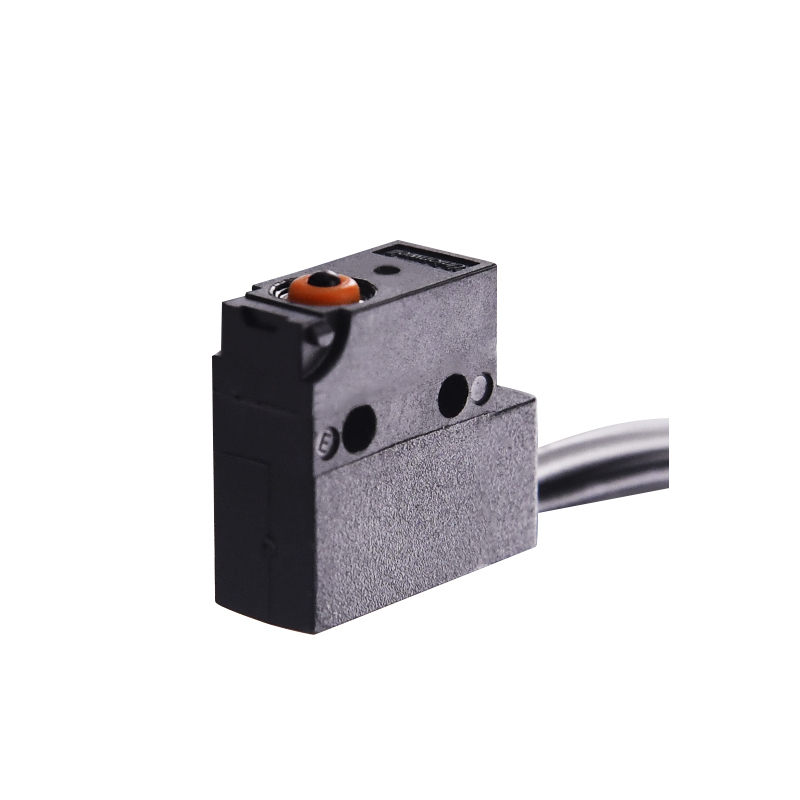

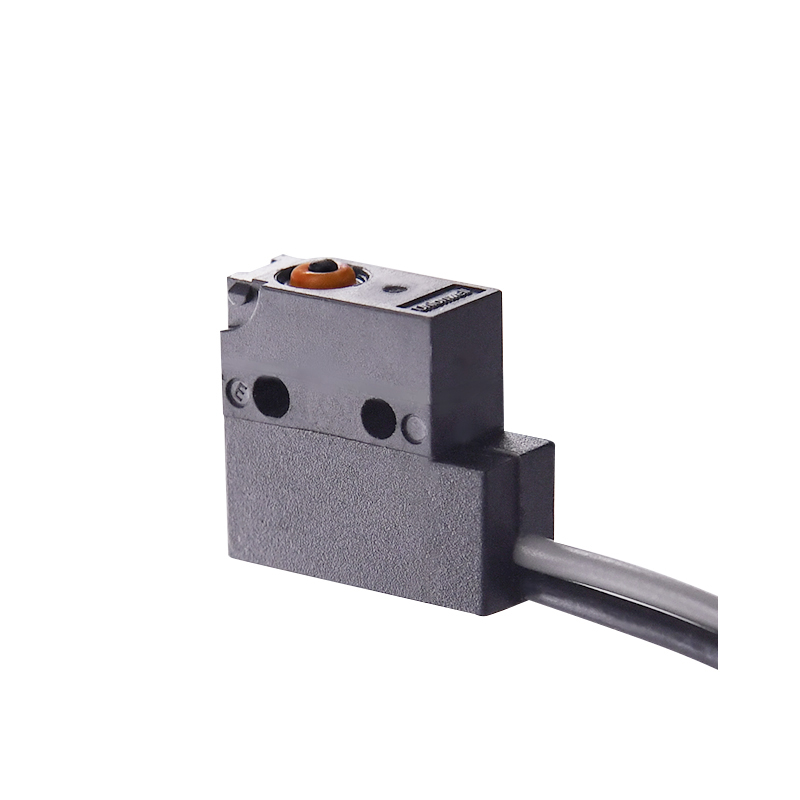

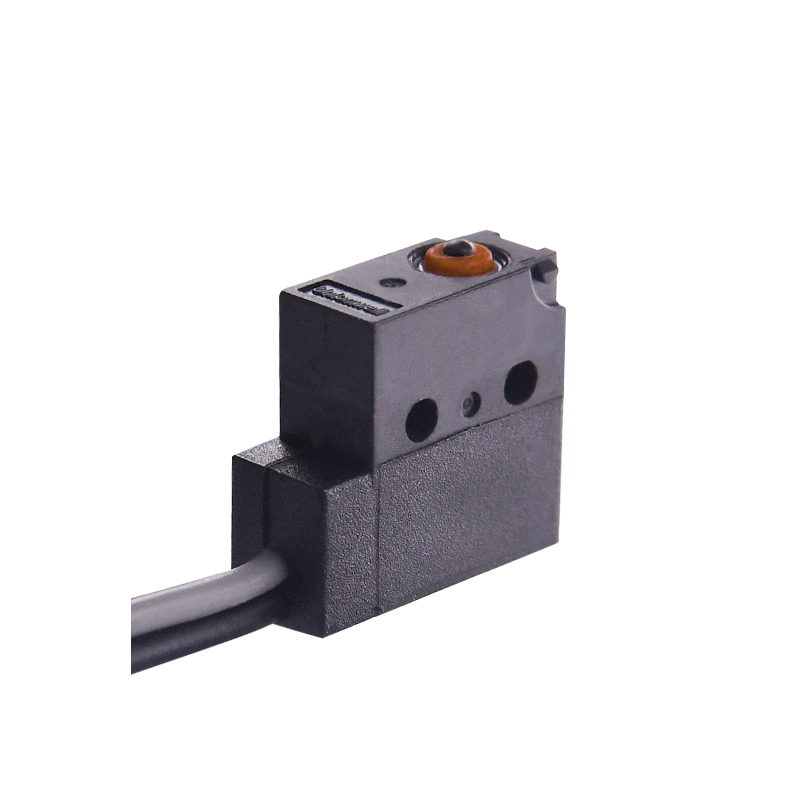

Subminiature Microswitch No Lever G10B
subminiature microswitch no lever
subminiature microswitch no lever
subminiature microswitch no lever g10b
subminiature microswitch no lever g10

Subminiature Microswitch No Lever G10B

  • Model Number: G10B03-150F00B-T085U

  • Electrical Rating:

    ENEC/CQC
    3A 125/250VAC 30VDC, 1E4 μ 40T85
    UL/cUL
    3A  125/250VAC 30VDC

  • Operating Force: 150gf Max

  • Terminal Style: Molded Lead Wires Lead To The Right Side(Opposite To Plunger Side)

  • Lever Type: No Lever Pin Plunger

  • Circuit Code: SPST-NC

Quote

The Features Of Subminiature Microswitch No Lever

  • Small Compact Size

  • Long Life And High Reliability

  • Designed For Water And Dust Tight(IP67)

  • Variety Of Levers Optional

  • Widely Used In Appliance And Industry Control



The Parameters Of Subminiature Microswitch No Lever

RatingP10.1A 125/250VAC 30VDC
033A  125/250VAC 30VDC
Operating FrequencyElectrical10~30  cycles/minute
Mechanical120 cycles/minute
Contact Resistance(initial value)100mΩ Max
Insulation Resistanceat 500VDC,100MΩ Min.
Dielectric StrengthAC 600VAC RMS (50-60HZ)
Storage Temperature-40°C~+85°C
Storage Humidity85%RH Max
Service LifeElectrical10,000 cycles
Mechanical300,000 cycles


Products
Contact with Us
Tel:
+86-20-87713867
E-mail:
inquiry@unionwellgz.com
Add:
RM1311, Renfeng Building, No. 490, Tianhe Road, Tianhe District, Guangzhou, Guangdong, China, 510630.
Unionwell
Switches are us, switch to us. Find quality micro switches at Unionwell

Popular IP67 Waterproof & Dustproof Subminiature Micro Switch G10B series

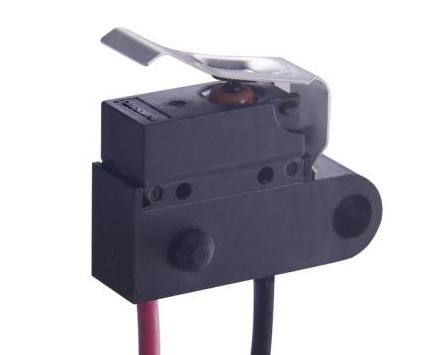

Micro Push Button Custom Lever G10B
