Almost 100% of automotive industry customers prefer Unionwell G3 Series automotive waterproof micro switches, thanks to their compact design, IP67 waterproof sealing, and long-term stable performance in harsh environments.
The G3 series is designed for space-constrained automotive applications, such as door locks, seat systems, and charging actuators, combining miniaturization with stable and reliable performance. As an experienced manufacturer of automotive micro switches, Unionwell supplies the G3 series to numerous Tier 1 and Tier 2 automotive suppliers, indirectly supporting many globally renowned OEM car switch manufacturers.
Furthermore, Unionwell offers a diverse range of automotive micro switches with global safety certifications such as ISO 9001, UL, cUL, and ENEC.
In automotive applications, customizing automotive micro switch begins with defining key technical parameters based on actual installation and operating conditions. Taking Unionwell's G3 series automotive micro switches as an example, purchasing engineers typically focus on dimensions, electrical ratings, sealing class, terminals, and mechanical life.
Unionwell's G3 series of compact automotive micro switch are specifically designed for automotive applications, featuring small size, IP67 waterproof rating, reliable electrical voltage, and a variety of external terminals. This meets the needs of various automotive applications.

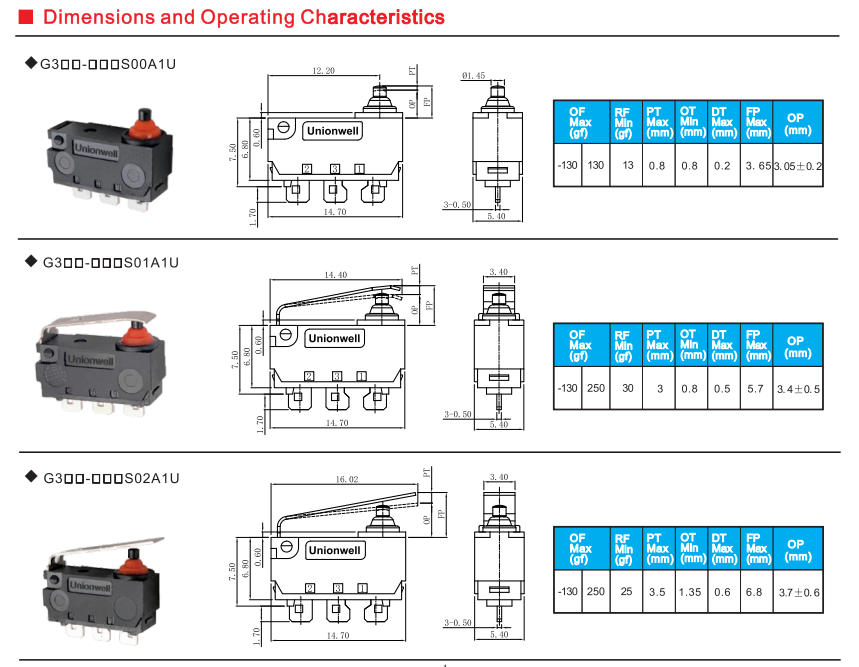

The image below shows Unionwell's G303 series micro switches, one of the most widely used automotive micro switches. In automotive applications, switch selection should focus on mounting dimensions, actuator travel, terminal orientation, and electrical ratings to ensure compatibility with existing automotive systems.
The G303 series is compact, IP67 protected, and suitable for door lock systems, car seats, gear shift switches, and charging port actuators. Below are reference values for evaluating automotive micro switch designs using the G303 as an example. For more information on other models and to obtain free samples for testing, please contact Unionwell!
Item | Specification | |
Rating | 0.1A 125/250VAC; 3A 12VDC; 0.1A 48VDC, μ 1E5 | |
Operating Frequency | Electrical | 0.1A: 120 cycles/min; 3A: 10–30 cycles/min |
Mechanical | 120 cycles/min | |
Contact Resistance (Initial) | Max. 100 mΩ (without wire type) | |
Insulation Resistance | Min. 100 MΩ | |
Vibration Durability | 10–50 Hz, 0.75 mm (p-p) | |
Dielectric Strength | 500 VAC (50–60 Hz) | |
Storage Temperature | −40°C to +85°C | |
Storage Humidity | Max. 85% RH | |
Service Life | Electrical | Min. 100,000 cycles (depending on part number) |
Mechanical | Min. 500,000 cycles | |

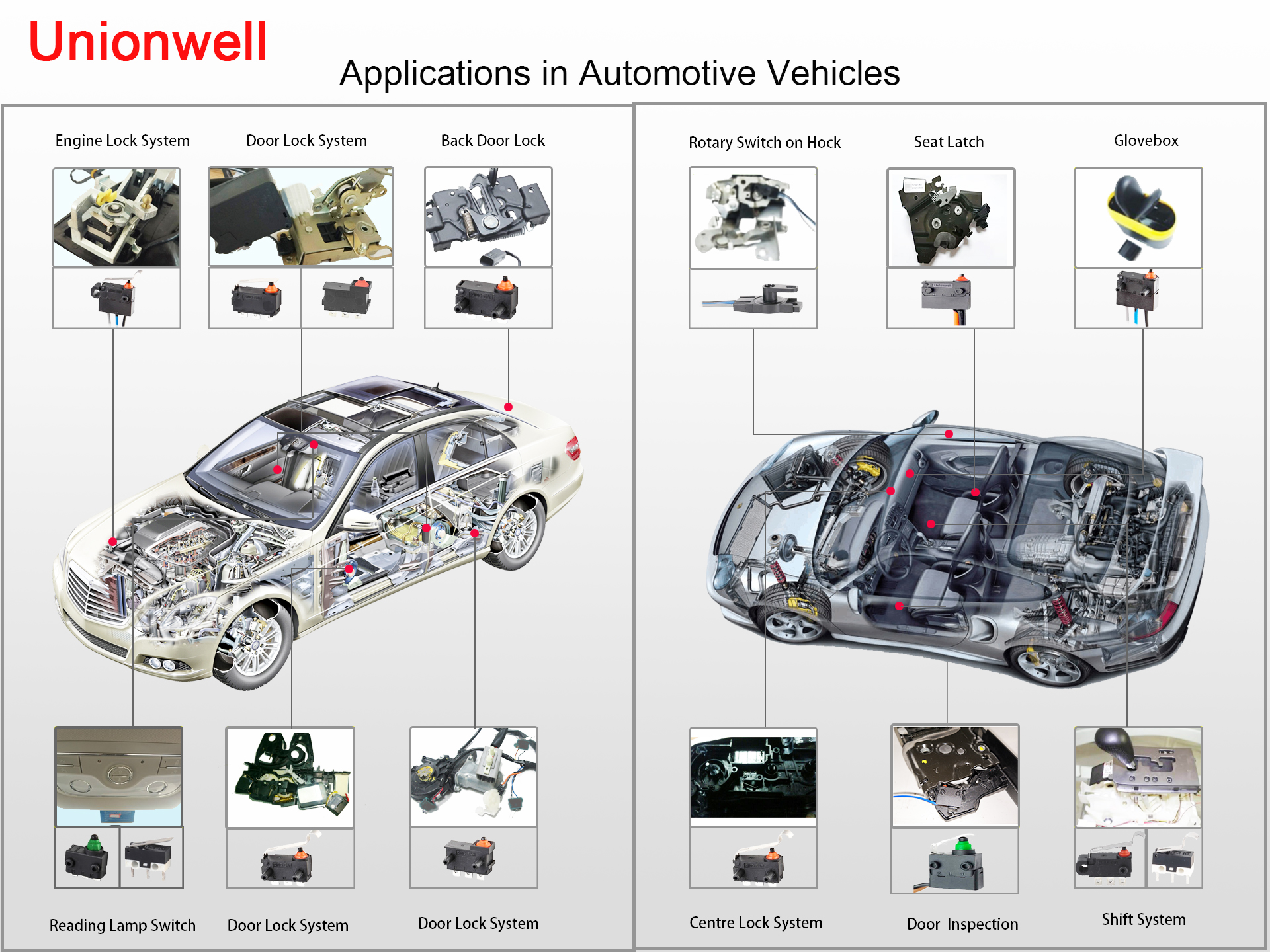

Unionwell's G3/G9/G19/G20 series micro switches are ultra-small in size, IP67 waterproof, and offer stable performance. They have obtained all necessary safety certifications in major global markets and are widely used in various automotive systems, such as door lock switches, trunk release switches, seat adjustment switches, and seat belt reminder switches.

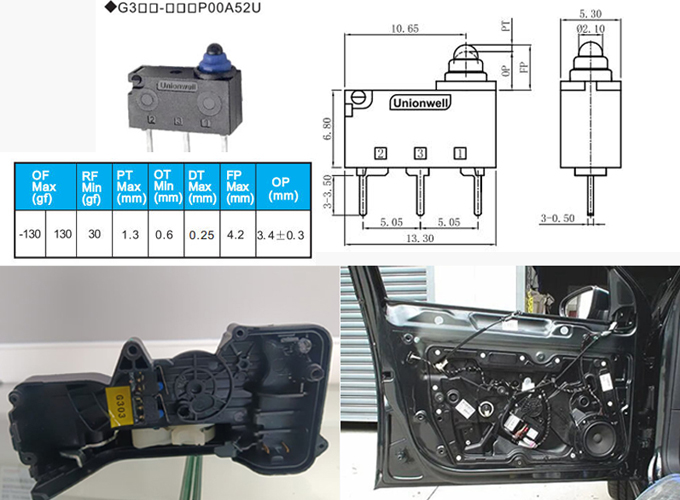

 | Automotive Door Lock Switch ApplicationsIn automotive door lock systems, micro switches are primarily used for door lock status detection and signal feedback, directly impacting the accuracy of central locking, anti-theft systems, and in-vehicle security logic. Unionwell waterproof micro switches feature a compact design and stable trigger consistency, enabling long-term reliable operation under frequent opening and closing and vibration environments. Their IP67 protection rating effectively resists rain, dust, and cleaning fluid intrusion, ensuring accurate response of the door lock system under complex operating conditions and meeting automotive-grade reliability requirements.
|

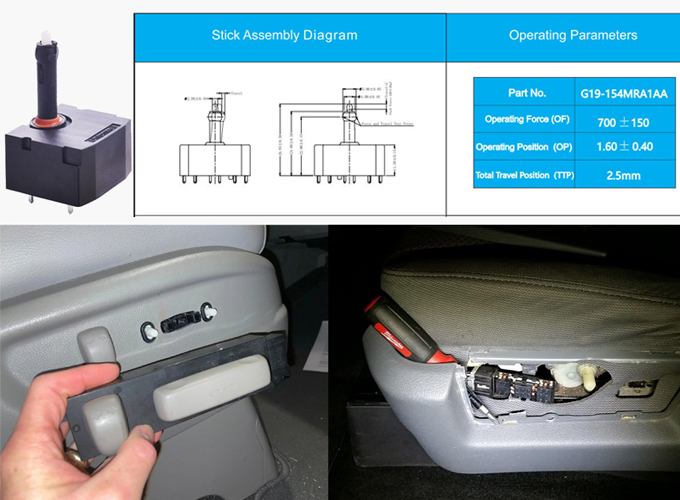

Seat Adjustment Switch ApplicationsAutomotive seat adjustment systems place extremely high demands on the size, durability, and stability of switches. Unionwell automotive micro switches are widely used for seat fore-aft, height, and backrest angle adjustments, responsible for position detection and action confirmation. This series of waterproof micro switches offers advantages in miniaturization and long mechanical life, maintaining stable performance even under high-frequency operation and long-term load conditions. The IP67 micro switch design effectively prevents liquid ingress, improving the lifespan and safety of the entire seat system.  |  |

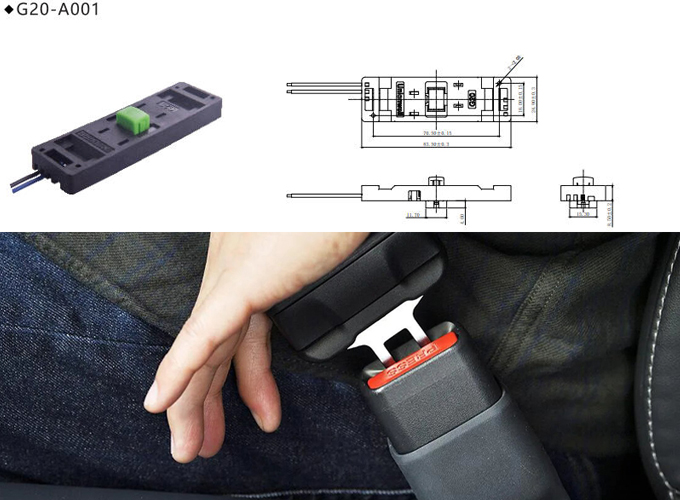

 | SeatBelt Reminder Switch ApplicationsSeat belt reminder systems are a crucial component of vehicle active safety, requiring extremely stringent signal reliability. Unionwell automotive micro switches are installed inside the seat belt buckle to accurately detect seat belt insertion and send a stable signal to the ECU. Utilizing a highly reliable contact structure and waterproof micro switch design, false triggering issues caused by dust, moisture, or prolonged use are effectively avoided. The IP67 micro switch performance ensures continuous stable operation in high-temperature and humid in-vehicle environments.
|
Sun Mirror Switch ApplicationIn automotive sun visor systems, micro switches are used to detect the open and closed status of the mirror cover, enabling automatic control of the vanity mirror illumination. Unionwell waterproof micro switches, with their ultra-small size and sensitive triggering characteristics, are suitable for space-constrained sun visor structures. The IP67 micro switch design effectively withstands changes in humidity and temperature inside the vehicle, ensuring long-term reliability. Application details and installation methods can be intuitively understood through the YouTube video below, helping engineers quickly evaluate the practical application effect. |
Pickup Truck Automatic Transmission SystemSwitch Model: Unionwell G905 Waterproof Mini Switch Features: IP67 waterproof, Long Life, High Reliability Applications:G905 Micro switches are used in pickup truck automatic transmission systems to precisely control shift signals, ensuring smooth shifting, timely response, and improved driving comfort and system reliability. Brand: A well-known pickup truck manufacturer in the US market. Annual Usage: 900K |  |

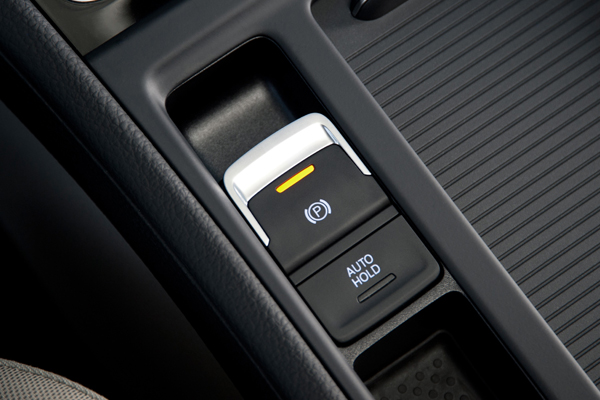

 | Automotive Electronic Parking Brake SystemSwitch Model: Unionwell G307 Sealed Mini Switch Features: IP67 waterproof, Long Life, High Reliability, Dual-Circuit Synchronization Time <15ms; Application: In the EPB (Electronic Parking Brake), the micro switch is integrated into the actuator to detect the limit positions of the parking motor and mechanical locking mechanism, providing the ECU with an accurate positioning signal. Brand: Internationally renowned automotive brand |
Light Truck Door Locking SystemSwitch Model: Unionwell G10 Small Micro Switch Features: One million mechanical cycles, multiple terminal types, compact structure Application: The G10 Small Micro Switch is installed inside the door lock actuator to detect the latch's open/closed and engaged status, feeding back the actual mechanical position to the vehicle control module. Brand: Chinese state-owned automotive brand Annual Usage: 200K |  |
