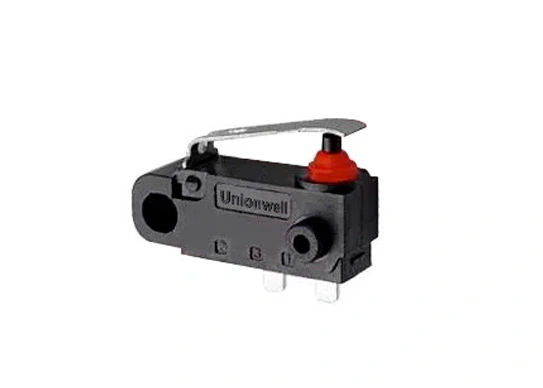

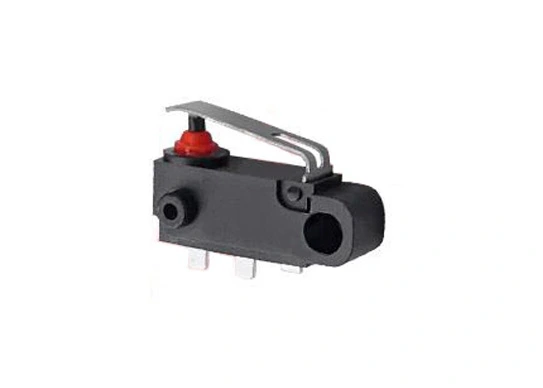

Subminiature Micro Switch for Auto Car
Subminiature Micro Switch for Auto Car
Subminiature Micro Switch for Auto Car
Subminiature Micro Switch for Auto Car

Subminiature Micro Switch for Auto Car

  • Place of Origin: Guangdong, China (Mainland)

  • Brand Name: Unionwell

  • Model Number: G303-130W01C7U

  • Rating: 0.1A, 125/250VAC 48VDC; 3A 12VDC 40T85 μ 1E5

  • Circuit Code: SPST-NO

  • Lever Type: Leaf Lever

  • Safety Certificates: Products are approved by global main market.

  • Company Assurance System: ISO9001 & IATF16949 & ISO14001

  • Applications: Car, Air conditioner, Auto Electronics, Communication, Electric Toothbrush, Home Appliance, Motor Control, etc.

Contact Us

Specifications of Subminiature Micro Switch for Auto Car

Rating0.1A, 125/250VAC; 3A 12VDC; 0.1A 48VDC μ1E5
Operating FrequencyElectrical0.1A,120 cycles/min 3A,10~30 cycles/min
Mechanical120 cycles/minute
Contact Resistance (Initiative)100mΩ Max.(without wire type)
Insulation Resistance (at 500VDC)100mΩ Min.
Vibration Durability10~55Hz, move 0.75mm(p-p)
Dielectric Strength500VAC (50~60Hz)
Operating Temperature-40℃~+85℃
Operating Humidity85% RH Max
Service LifeElectricalMin.100,000 cycles (Depend on part NO.)
MechanicalMin.500,000 cycles
