The Hidden Guardian of Transmission Safety: Micro Switches in Automotive Gearbox Shifters

Introduction

The automotive transmission system is the heart of a vehicle's kinetic control, and the gearbox shifter is the driver's direct link to it. With the global automotive transmission market projected to reach 1,017.6 billion RMB by 2025 (growing at a CAGR of 10.6%), the demand for reliable, high-precision components is surging. Among these, the micro switch plays a pivotal role in ensuring that every gear shift is safe and accurate.

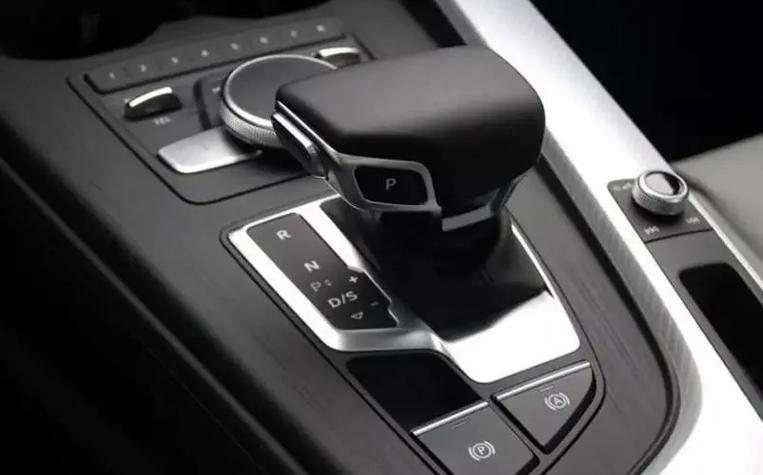

The Role of the Gearbox Shifter

The gearbox shifter controls the transmission mechanism to change the gear ratio, allowing the vehicle to adjust speed and torque according to driving conditions. But how does the car know which gear it is in, or when it is safe to shift out of Park?

How Micro Switches Work in Shifters

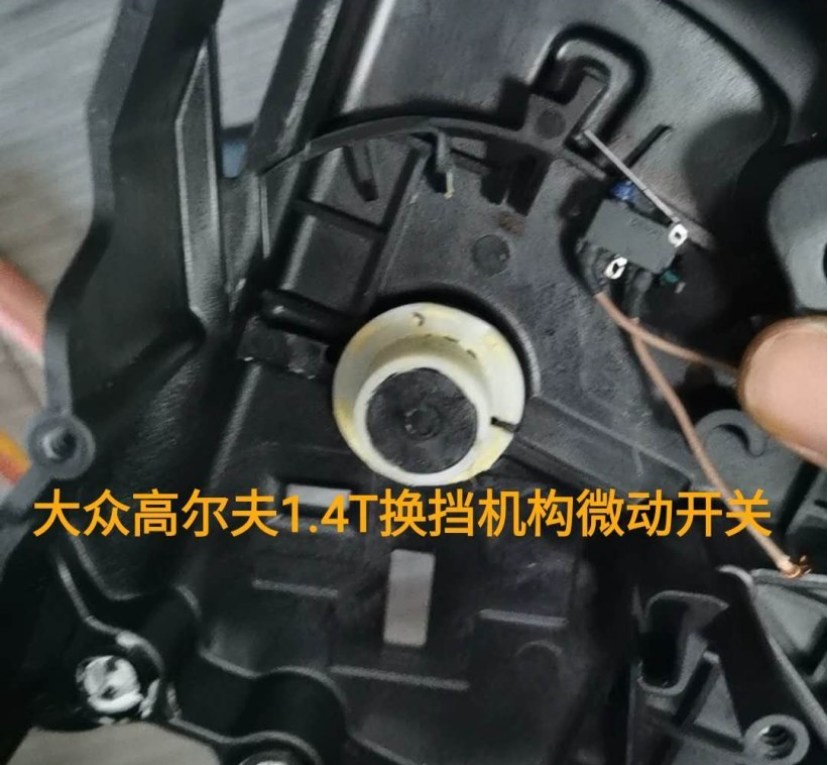

Inside the shifter assembly (often located in the center console armrest area ), micro switches perform two critical functions:

1. Position Detection & Signal IndicationTypically, 2 to 4 micro switches are integrated into the shift mechanism.

• Function: They detect the physical position of the gear lever.

• Feedback: This signal is transmitted to the Transmission Control Unit (TCU) and displayed on the dashboard, letting the driver know if they are in Drive, Reverse, or Neutral.




2. Ensuring Shift Safety (Shift-Lock Mechanism)This is perhaps the most critical safety feature.

• P-Gear Lock: When the vehicle is in "Park" (P), the micro switch remains connected. It allows the shift lock solenoid to energize only when the brake pedal is pressed, releasing the lever from the P position.

• Driving Safety: Once shifted out of P, the micro switch disconnects. This ensures the solenoid does not energize while driving, preventing accidental locking or shifting errors.




Why Water Resistance is Crucial?

Since shifters are usually located near cup holders in the center console, they are prone to accidental spills (coffee, water, soda). A standard switch might fail under these conditions.Unionwell recommends the G3 Series Waterproof Micro Switch for this application. Its sealed design ensures that liquid spills do not compromise the critical safety signals of the transmission.

Market Outlook & PotentialAs the market grows, top-tier manufacturers like ZF, Aisin, BorgWarner, and Getrag continue to set high standards for component durability. Unionwell is positioned to meet these demands.

Why Choose Unionwell?

• Global Certification: Our switches are UL, cUL, ENEC, and CQC certified, ensuring compliance with international automotive standards.

• Reliability: We offer high-life, high-reliability switches comparable to first-tier brands but at a competitive price.

• Customization: We provide various terminal configurations and can engineer custom wire harness solutions for complex shifter assemblies.




Conclusion

From indicating gear position to preventing accidental shifts, the micro switch is a small component with a massive impact on driving safety. Unionwell’s G3 series delivers the precision and waterproof protection modern vehicles require.

Developing a new shifter module?

Contact Unionwell for a certified, waterproof switching solution tailored to your design.
