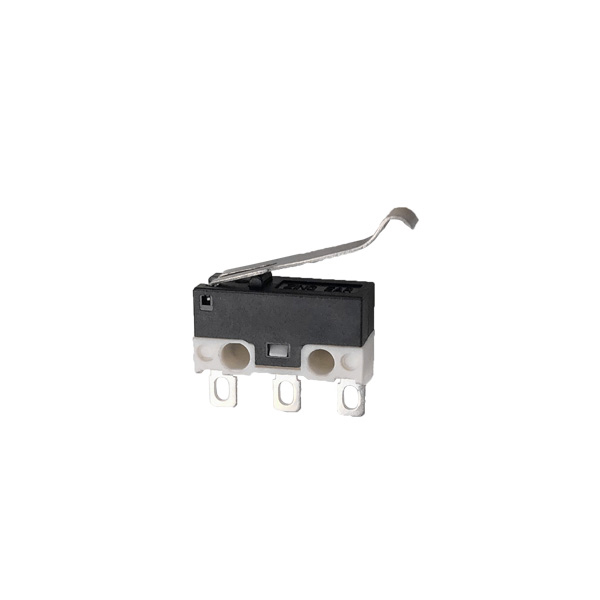

Micro Switch Solder Terminals For Vacuum Cleaner

Micro Switch Solder Terminals For Vacuum Cleaner

Model Number: G10A03-150S07A-T009U

Electrical Rating:

ENEC/CQC
3A 125/250VAC 30VDC, 1E4 μ 40T85
UL/cUL
3A  125/250VAC 30VDC

Operating Force: 150gf Max

Terminal Style: Solder Terminals

Circuit Code: SPDT

Quote

The Parameters Of Micro Switch Solder Terminals

RatingP10.1A 125/250VAC 30VDC
033A 125/250VAC 30VDC
Operating FrequencyElectrical10~30   cycles/minute
Mechanical120 cycles/minute
Contact Resistance(initial value)100mΩ Max (without wire type)
Insulation Resistanceat 500VDC,100MΩ Min.
Dielectric StrengthAC 600VAC RMS (50-60HZ)
Storage Temperature-40°C~+85°C
Storage Humidity85%RH Max
Service LifeElectrical10,000 cycles
Mechanical1,000,000 cycles
