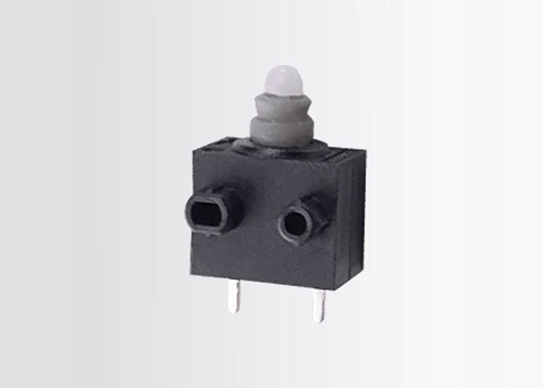

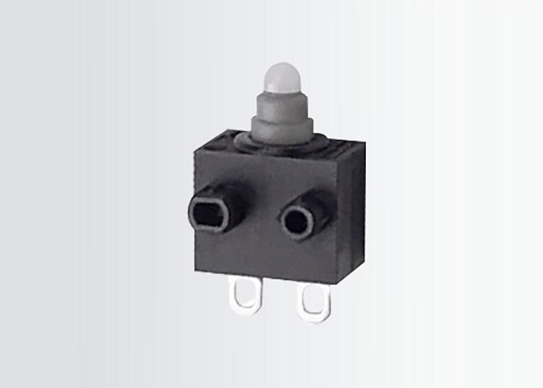

Mini Waterproof Micro Switch G309
mini waterproof micro switch g309
mini waterproof micro switch g309
mini waterproof micro switch g309 2

Mini Waterproof Micro Switch G309

  • Waterproof and dustproof design (IP67)

  • Small compact size

  • Long life and high reliability

  • Variety of levers and terminals

  • Widely used In automotive electronics, appliances, industrial control, etc.

  • Customized manufacturing service available

Quote Datasheet

Specifications of Mini Sealed Micro Switch G309

Place of OriginGuangdong, China (Mainland)
Brand NameMicro Switch Manufacturer Unionwell
Model NumberG309
Max Operating  Force (at pin plunger)80gf/150gf
Terminal TypeSolder/PCB
Lever TypeNo Lever/Others
Circuit CodeSPST-NO/SPST-NC
CertificationsENEC, UL/cUL, CQC
OEM/ODMAvailable
Operating  Linear Speed1~500mm/s
Operating  Frequency120 cycles/min
Insulation Resistance≥100MΩ（DC 500V by insulating-resistance meter）
Contact Resistance (Initial Value)with terminals≤100mΩ
with wires≤500mΩ（Wire length 300mm）
Voltage Resistancebetween terminalsAC500V, 50/60Hz, 1min.
between terminals and unelectrified metal partsAC1000V, 50/60Hz, 1min.
Vibration Durability10~55Hz, move 1.50mm(p-p)
Service LifeElectrical300,000 cycles (20 cycles/min)
DC12V 0.1A  50μA  3VDC
Mechanical300,000 cycles (30 cycles/min)
Protection LevelIEC IP67 (Except for terminals)
Operating  Temperature-40～+85°C
Operating  Humidity95%RH Max（+5～+35°C）


Products

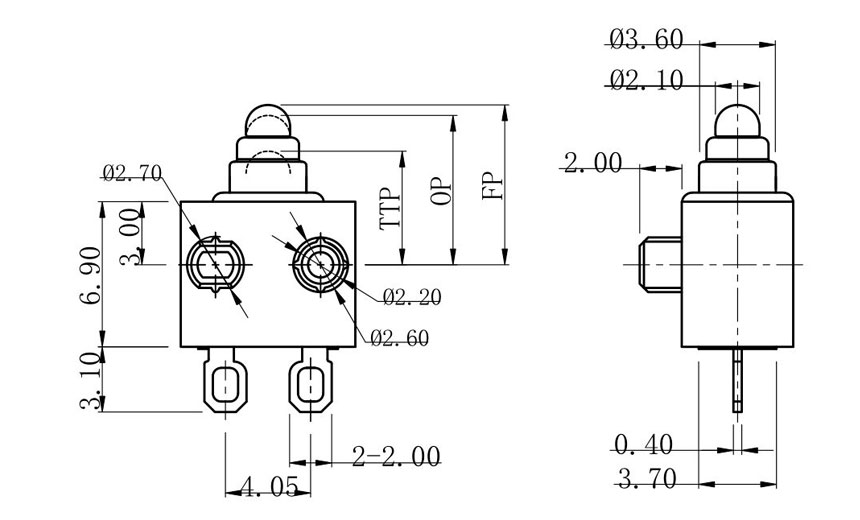

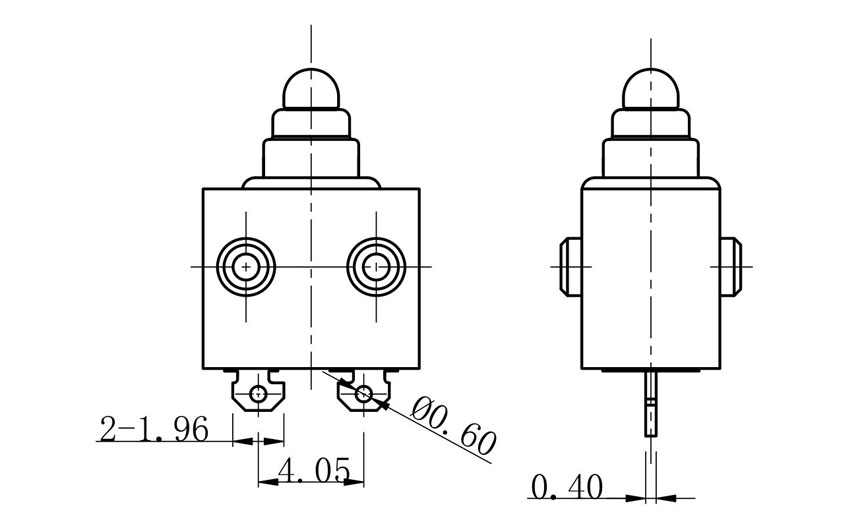

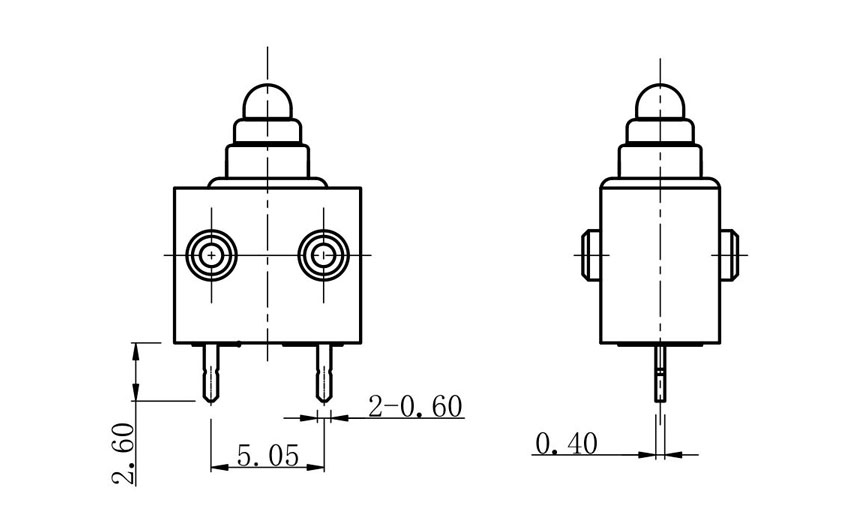

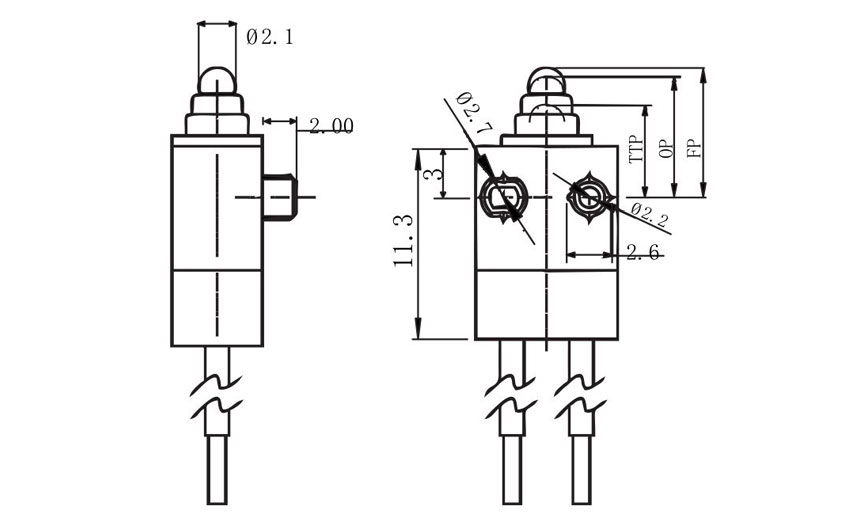

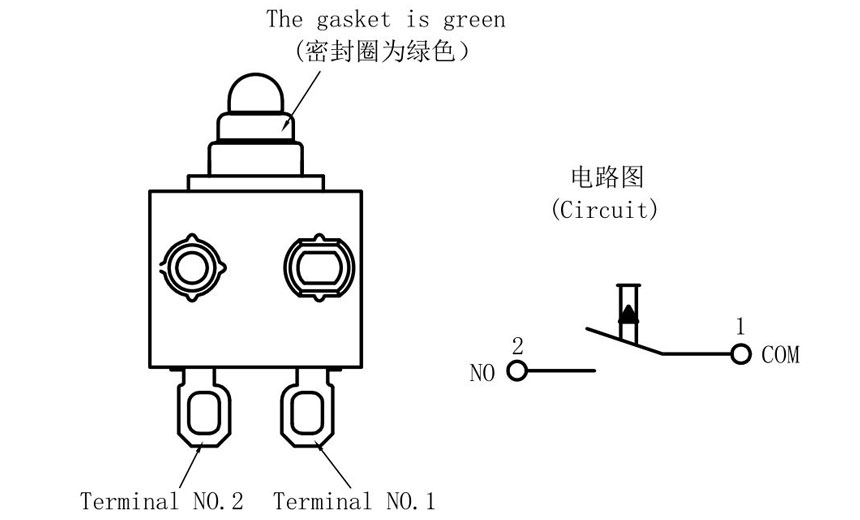

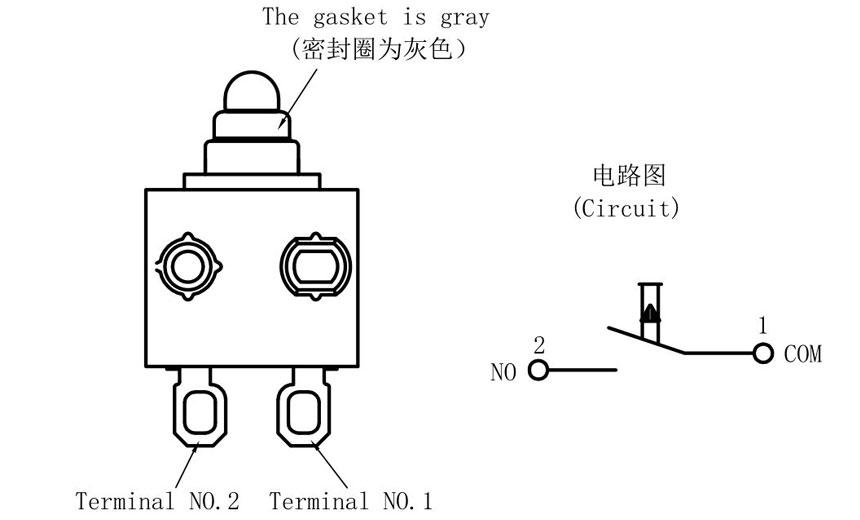

Product Drawing of Mini Waterproof Micro Switch G309
