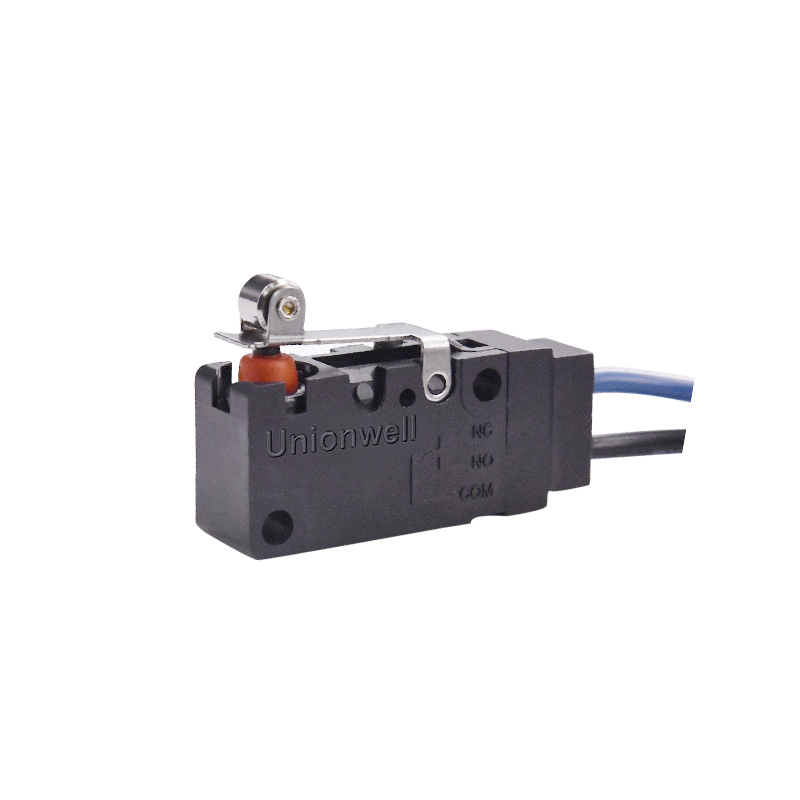

Waterproof Micro Switch Wiring G5W11

Waterproof Micro Switch Wiring G5W11

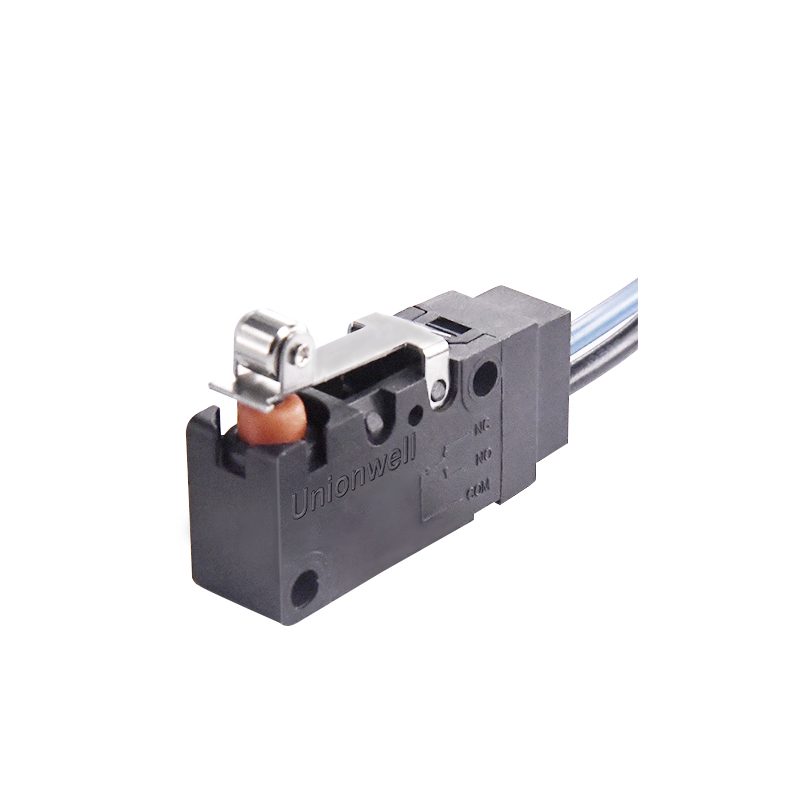

  • Model Number: G5W11-WP200A07-W21200U

  • Temperature Grade: 40T85 IEC IP67

  • Terminal Style: Wire Outside(For G5W11 Series Only)

  • Circuit Code: SPST-NO

  • Operating Force At Pin Plunger Max 200gf

  • Lever Position: Far From Pin Plunger

  • Special Designator: Rating 2(Standard Wire:UL1015,20#,300mm)


Quote

The Parameters Of Waterproof Micro Switch Wiring

RatingW1ENEC： 0.1A 48VDC, 0.1A 125/250VAC,40T85,5E4,u
UL：0.1A 48VDC,0.1A 125/250VAC,T85
W2ENEC： 5A 125/250VAC,5A, 30VDC,40T85,5E4, u
UL：5A 125/250VAC,T85
W3ENEC：10(2)A 125/250VAC, 0.5A 125VDC, 0.25A 250VDC,40T85,u,2E4
UL：10.1A 1/10HP 125/250VAC,0.5A 125VDC, 0.25A 250VDC, T85
Operating FrequencyElectrical10~30 times/min
Mechanical60 times/min
Contact Resistance(initial value)With Terminal50mΩ Max
With Wire100mΩ Max(Depends on the length of the wire)
Insulation Resistanceat 500VDC,100MΩ Min.
Dielectric StrengthBetween TerminalsAC 1000V 50-60Hz 1min
Between Terminals And HousingAC 1500V 50-60Hz 1min
Storage Temperature-40°C~+85°C
Storage Humidity85%RH Max
Protection GradeWith TerminalIEC IP67(Terminal not included)
With WireIEC IP67
(PTI)Electric-shock Safeguard GradeClass I
LifeE-life2E4~10E4 cycles(depends on P/Ns)
M-lifeover 1,000,000 cycles(60 cycles/min)
WeightApprox.7g(with terminal and without lever)
