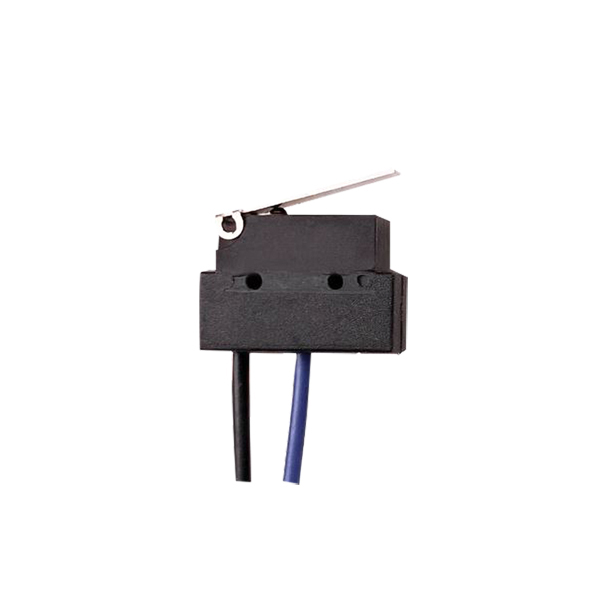

IP67 Micro Switch Molded Lead Wires Downwards G10B

IP67 Micro Switch Molded Lead Wires Downwards G10B

Model Number: G10B03-150E03C-150U

Electrical Rating:

ENEC/CQC
3A 125/250VAC 30VDC, 1E4 μ 40T85
UL/cUL
3A  125/250VAC 30VDC

Operating Force: 150gf Max

Terminal Style: Molded Lead Wires Downwards

Lever Type: 03# Straight Lever

Circuit Code: SPST-NO

Contact Us

The Features Of IP67 Micro Switch Molded Lead Wires Downwards

  • Small Compact Size

  • Long Life And High Reliability

  • Designed For Waterproof(IP67) And Dustproof

  • Widely Used In Appliance And Industry Control



The Parameters Of IP67 Micro Switch Molded Lead Wires Downwards

RatingP10.1A 125/250VAC 30VDC
033A  125/250VAC 30VDC
Operating FrequencyElectrical10~30  Cycles/minute
Mechanical120 Cycles/minute
Contact Resistance(initial value)100mΩ Max
Insulation Resistanceat 500VDC,100MΩ Min.
Dielectric StrengthAC 600VAC RMS (50-60HZ)
Storage Temperature-40°C~+85°C
Storage Humidity85%RH Max
Service LifeElectrical10,000 Cycles
Mechanical300,000 Cycles
