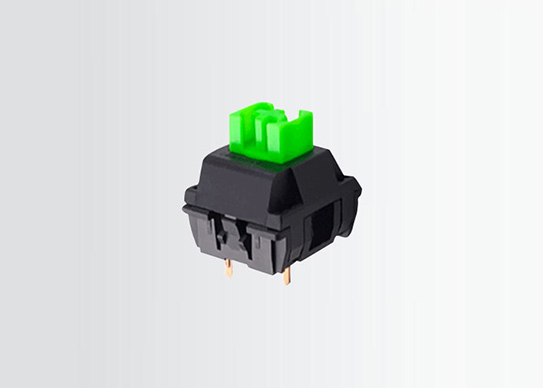

Mechanical Keyboard Switch GT06
clicky tactile switches gt06
clicky tactile switches gt06

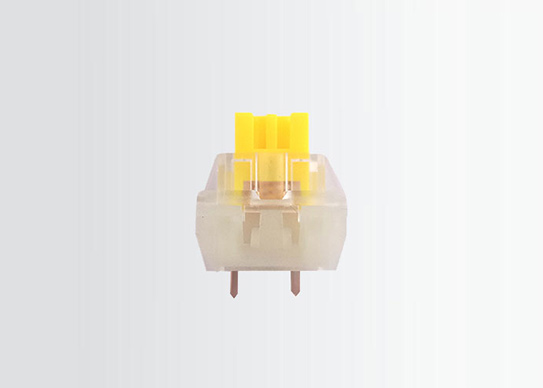

clicky mechanical switches

Mechanical Keyboard Switch GT06

  • Standard profile, 0.6 inches (15.2 mm) from the PCB (no keycap)

  • Linear, soft tactile, and click tactile touch textures are available.

  • mount frames

  • Extended lifespan of up to 100 million operating cycles

  • Light guiding column, switch light that is gentle but not blinding •12V AC/DC Maximum

  • As of Right Now: 10mA

100MQ under 100VDC for Insulation Resistance


Contact Us PDF download

Specifications of Mechanical Keyboard Switch GT06

Place of OriginGuangdong, China (Mainland)
Brand NameUnionwell
Model NumberGT06
Electrical
Characteristics		Rating12V DC/AC Max.10mA AC/DC Max.
Contact Resistance200mΩ Max. (25mΩ typical) (Initial Value)
Insulation Resistance100MΩ Min.
Voltage ResistanceAC 500V (50/60Hz) 1Minute
Electrical lifeOver 80,000,000 Cycles (Load)
Bounce Time5msec Operation speed at ＜400mm/sec
ParametersOperating ForceSee Detailing Spec
Pre-travel2.0±0.4mm
Total Travel4.0+0     mm
      -0.3
Mechanical LifeOver 20,000,000cycles (No Load)
Operating Temperature Range-40°C~+80°C
Ambient Humidity≤85%RH


Products

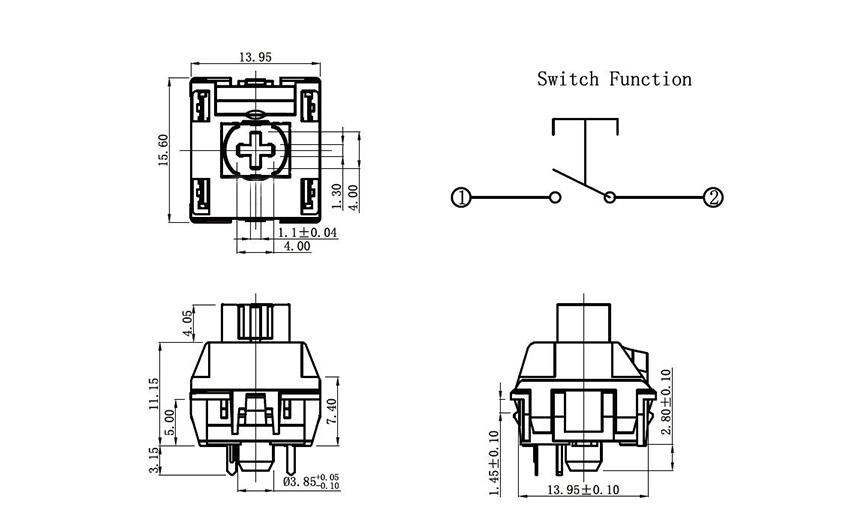

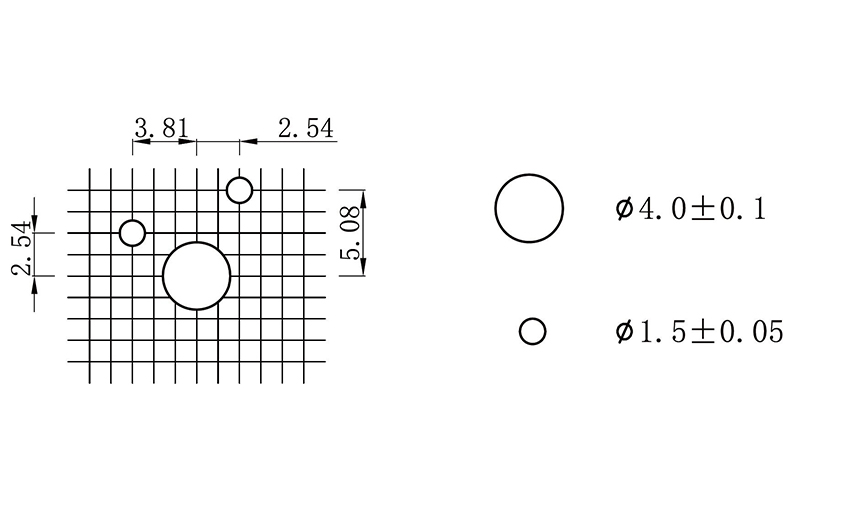

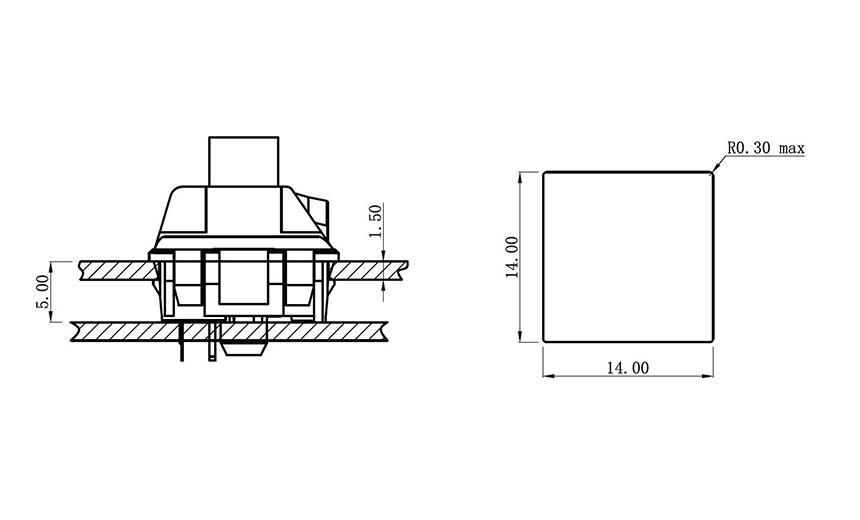

Product Drawing of Mechanical Keyboard Switch GT06

clicky keyboard switches
clicky switches
linear and tactile switches
