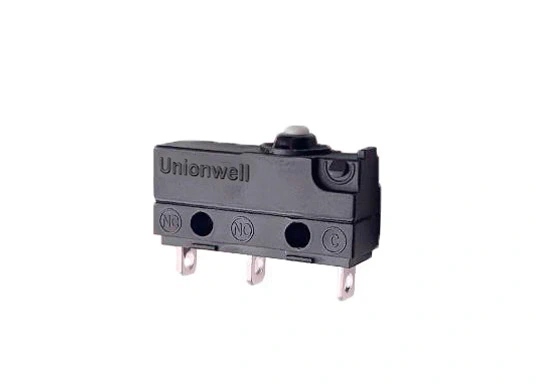

Place of Origin: China (Mainland)
Brand Name: Unionwell
Model Number: G9P1-200S00D1A
Terminal Type: Solder Terminals
Circuit Code: SPDT
Lever Type: Spherical Pin Plunger
Microswitches are innovative electrical components that are widely used in various applications, including consumer electronics, industrial automation, and automotive systems. They are made from high-quality materials that ensure durability, strength, and long-lasting performance.
| Rating | P1 | 0.1A 125/250VAC 48VDC 5E4 Gold Plated Contact Optional |
| 05 | UL: 5A 125/250VAC | |
| ENEC: 6A 125/125 1E4; 3A 125/250VAC 30VDC 25T120 μ 5E4 | ||
| Operating Frequency | Electrical | 10~30 cycles/min |
| Mechanical | 120 cycles/min | |
| Contact Resistance (Initiative) | 100mΩ Max (lt depends on the wire length for the type with wire) | |
| Insulation Resistance (at 500VDC) | 100mΩ Min | |
| Dielectric Strength | AC 1,000V RMS(50-60Hz) | |
| Storage Temperature | -25℃~+120℃ | |
| Storage Humidity | 85% RH Max. | |
| Service Life | Electrical | 10,000~100,000 cycles (Depend on P/N) |
| Mechanical | 500,000 cycles | |
