Sealed Micro Switch 300GF Wires Leads To Side G905
Sealed Micro Switch 300GF Wires Leads To Side
Sealed Micro Switch 300GF Wires Leads To Side
Sealed Micro Switch 300GF Wires Leads To Side

Sealed Micro Switch 300GF Wires Leads To Side G905

  • Water‐Tight IP67 Design: Fully dust‑ and water‑proof for outdoor or harsh‑environment applications

  • High Reliability & Long Life: Up to 100,000 electrical cycles and 500,000 mechanical cycles

  • Robust Electrical Ratings:

  •     ENEC/CQC: 6 A @ 125/250 VAC (1E4) or 3 A @ 125/250 VAC, 30 VDC (5E4)

        UL/cUL: 5 A @ 125/250 VAC

  • Simulated Roller Lever Actuator: Smooth, low‑friction operation with max 300 gf operating force

  • Side‑Lead Wiring: 500 mm leads for easy panel integration

  • SPDT Circuit Code: Single‑pole, double‑throw for versatile switching

  • Ideal For: Automotive control, household appliances, industrial machinery, and automation systems

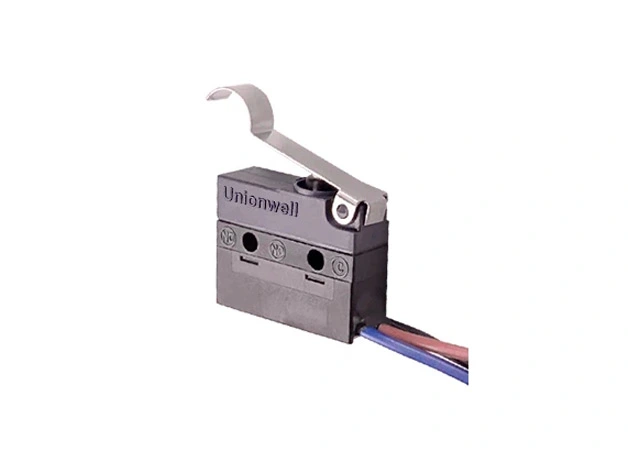

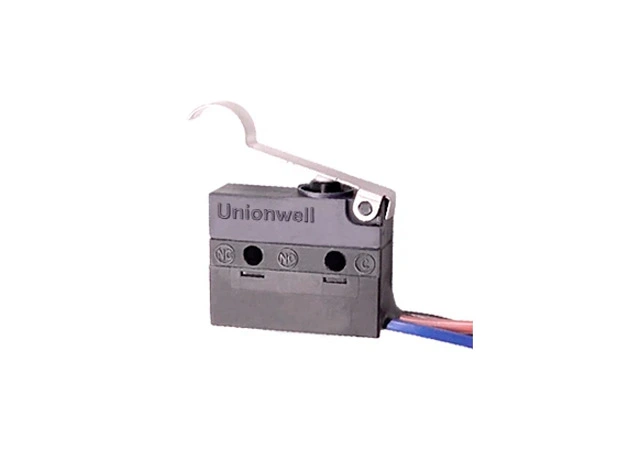

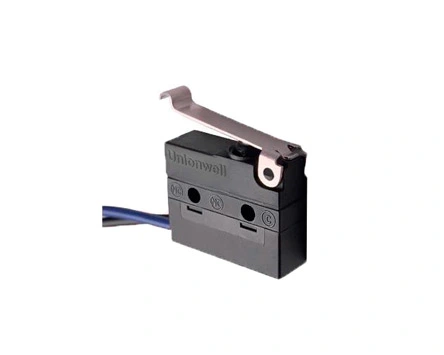

The Unionwell G905‑300G59W1‑T169U is a rugged, IP67‑rated sealed micro switch designed to deliver dependable performance in extreme environments. Its simulated roller lever actuator ensures consistent actuation with minimal wear, while the watertight housing keeps out dust, moisture, and contaminants—making it perfect for outdoor controls, automotive assemblies, and heavy‑duty industrial equipment.


Built for longevity, this micro switch offers up to 100,000 electrical cycles (depending on part number) and 500,000 mechanical cycles, ensuring years of maintenance‑free operation. With both ENEC/CQC and UL/cUL approvals, it meets stringent international safety standards and supports electrical loads up to 6 A at 125/250 VAC.


Installation is simplified by 500 mm side‑lead wires, and the SPDT circuit provides flexible on‑off or changeover switching. Whether you’re designing a control panel, appliance, or automated system, the G905 delivers compact size, high reliability, and superior environmental protection—all in one cost‑effective package.


Parameters

Ratingp10.1A 125/250VAC 48VDC/Gold Plated Contact Optional
05UL:5A 125/250VAC
ENEC:6A 125/250 1E4;3A 125/250VAC 30VDC 5E4 µ 25T120
Operating FrequencyElectrical10~30 Cycles/Minute
Mechanical120 Cycles/Minute
Contact Resistance(Initiative)100mΩ Max/It depends on the wire length for the type of wire
Insulation Resistance (at 500VDC)100MΩ Min
Dielectric StrengthAC1,000V RMS (50~60Hz)
Storage Temperature-25°C~+120°C
Storage Humidity85%RH Max
Service LifeElectrical10,000~100,000 Cycles/Depend on part NO.
Mechanical500,000 Cycles
