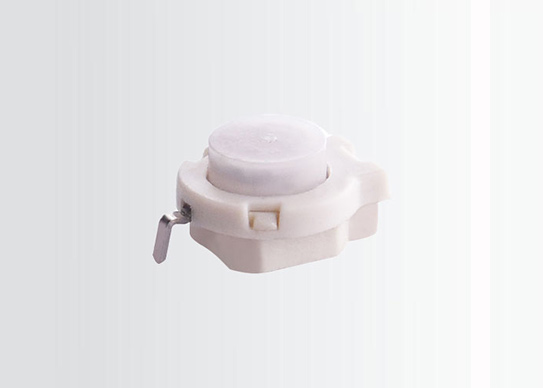

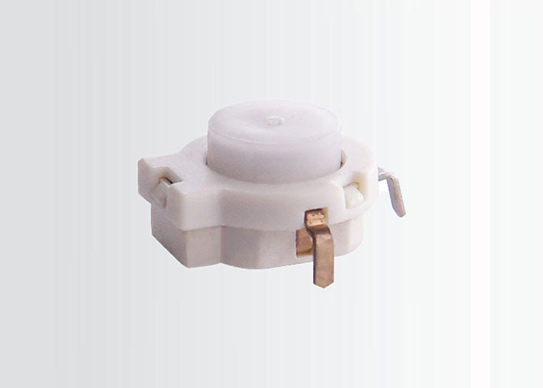

Name: Mechanical Keyboard Switch GT08
Brand: Guangzhou Unionwell Sensing & Control Technology Co., Ltd.

RM1311, Renfeng Building, No. 490, Tianhe Road, Tianhe District, Guangzhou, Guangdong, China, 510630.

Switches are us, switch to us. Find quality micro switches at Unionwell

RM1311, Renfeng Building, No. 490, Tianhe Road, Tianhe District, Guangzhou, Guangdong, China, 510630.

Place of Origin		Guangdong, China (Mainland)
Brand Name		Unionwell
Model Number		GT08
Electrical Characteristics	Rating	12V DC/AC Max.10mA AC/DC Max.
	Contact Resistance	200mΩ Max. (Initial Value)
	Insulation Resistance	100MΩ Min.
	Voltage Resistance	AC 100V (50/60Hz) 1Minute
	Electrical life	over 20,000,000 cycles (Load)
	Bounce Time	5msec operation speed at ＜400mm/sec
Parameters	Tactile Force (TF)	70 ± 15gf
	Tactile Position (TP)	0.65±0.2mm
	Operating Position (OP)	(TP±0.05) ≤OP≤1.2mm
	Total Travel (TT)	1.6 ± 0.3mm
	Return Force (RF)	20gf Min
	Mechanical Life	Over 20,000,000 cycles (No Load)
	Operating Temperature	-40°C~+80°C
	Ambient Humidity	≤85%RH
	Hand Solder Condition	3sec Max. 360°C ± 10°C

Mechanical Keyboard Switch GT08

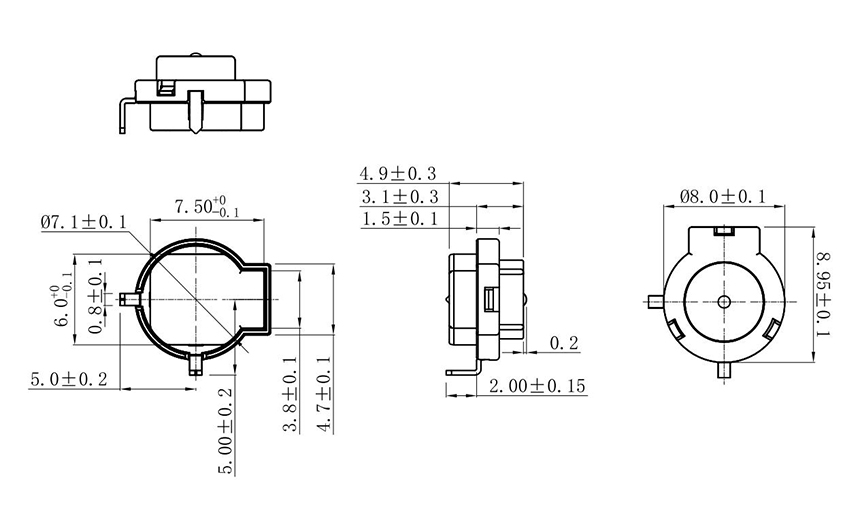

Specifications of Mechanical Keyboard Switch GT08
