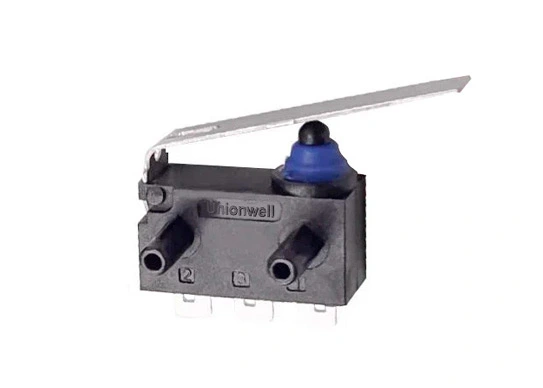

Subminiature Micro Switch 130GF Waterproof
Subminiature Micro Switch 130GF Waterproof
Subminiature Micro Switch 130GF Waterproof
Subminiature Micro Switch 130GF Waterproof

Subminiature Micro Switch 130GF Waterproof

  • Place of Origin: Guangdong, China (Mainland)

  • Brand Name: Unionwell

  • Model Number: G303-130S28A54U

  • Rating: 0.1A 125/250VAC; 3A 12VDC; 0.1A 48VDC, μ 1E5

  • Terminal: Solder Terminals

  • Circuit Code: SPDT

  • Lever Type: 54# Lever

  • Global Safety Approval: ENEC, CQC, UL/cUL, etc.

Contact Us

Specifications of Subminiature Micro Switch 130GF Waterproof

Rating0.1A, 125/250VAC; 3A/12VDC; 0.1A/48VDC; μ1E5
Operating FrequencyElectrical0.1-120 cycles/minute; 3-10~30 cycles/minute
Mechanical120 cycles/minute
Contact Resistance (Initiative)100mΩ Max.(without wire type)
Insulation Resistance (at 500VDC)100mΩ Min.
Vibration Durability10~55Hz, move 0.75mm(p-p)
Dielectric Strength500VAC (50~60Hz)
Operating Temperature-40℃~+85℃
Operating Humidity85% RH Max
Service LifeElectricalMin.100,000 cycles(Depend on part NO.)
MechanicalMin.500,000 cycles
