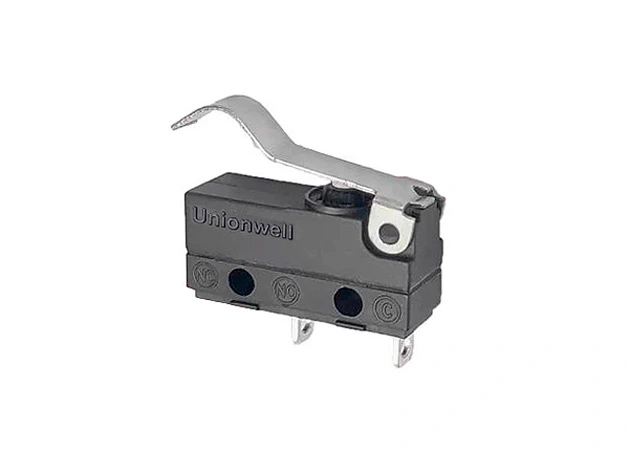

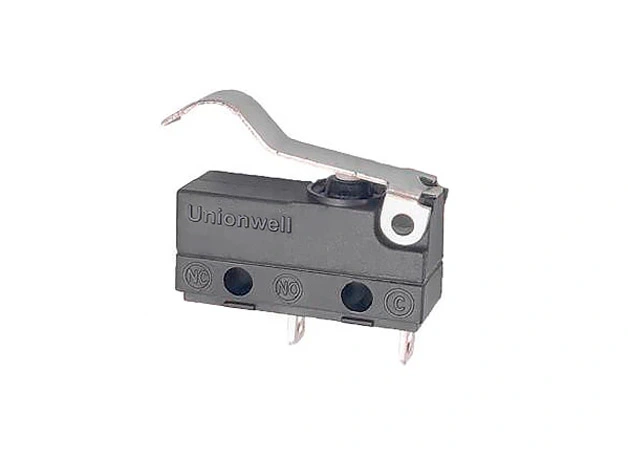

Name: Subminiature Micro Switches Solder Terminal With Lever G9
Brand: Guangzhou Unionwell Sensing & Control Technology Co., Ltd.

Descriptions of Subminiature Micro Switches Solder Terminal With Lever G9

The Subminiature Micro Switch with Solder Terminal and Lever G9 is a compact yet robust solution for applications requiring precise control and reliability in limited spaces. This switch is designed with a small footprint, making it ideal for electronic devices, home appliances, and automotive systems where space is at a premium. The lever actuator provides smooth and consistent operation, allowing for easy engagement and precise actuation, which is crucial for applications requiring accurate response times.

The G9 switch features solder terminals, ensuring secure and stable connections that facilitate straightforward installation on printed circuit boards. Its durable construction is built to withstand frequent use and harsh conditions, offering long-lasting performance and reliability. The switch is well-suited for various applications, including communication equipment, instrumentation, and industrial controls, where dependable switching and compact size are critical. The G9 subminiature micro switch combines precision, ease of use, and durability, making it a preferred choice for engineers and designers.

Specifications of Subminiature Micro Switches Solder Terminal With Lever G9

Rating	p1	0.1A 125/250VAC 48VDC/GoldPlated Contact Optional
	05	UL: 5A 125/250VAC ENEC: 6A 125/250 1E4; 3A 125/250VAC 30VDC 5E4 µ25T120
Operating Frequency	Electrical	10~30cycles/minute
	Mechanical	120cycles/minute
Contact Resistance(Initiative)		100mΩ Max/It depends on the wire length for the type with wire
Insulation Resistance (at 500VDC)		100mΩ Min
Dielectric Strength		AC1,000V RMS (50~60Hz)
Storage Temperature		-25°C~+120°C
Storage Humidity		85%RH Max
Service Life	Electrical	10,000cycles/Depend on part No.
	Mechanical	500,000cycles
