Mini Waterproof 24 Volt Micro Switch G305
24 volt micro switch
24 volt micro switch
24 volt micro switch g305
g305 24 volt micro switch
24 volt g305 switches
g305 micro switch 24v
micro switch 24v g305 switches
micro switch g305 24v
micro switch g305

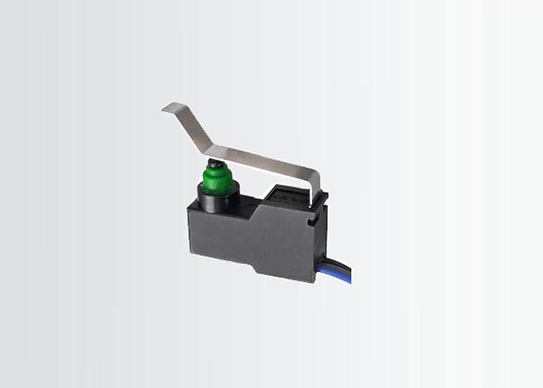

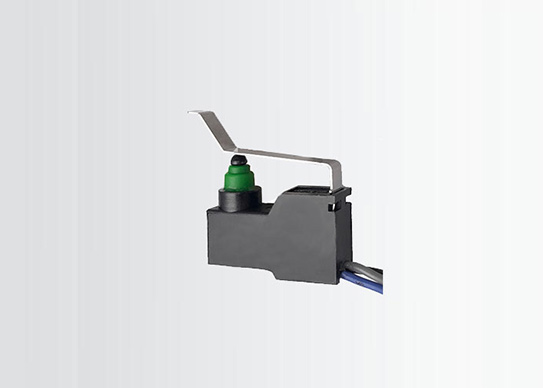

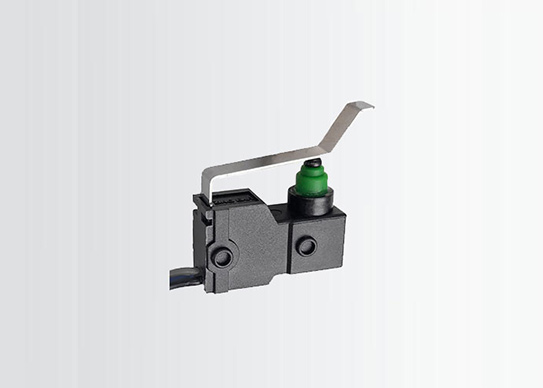

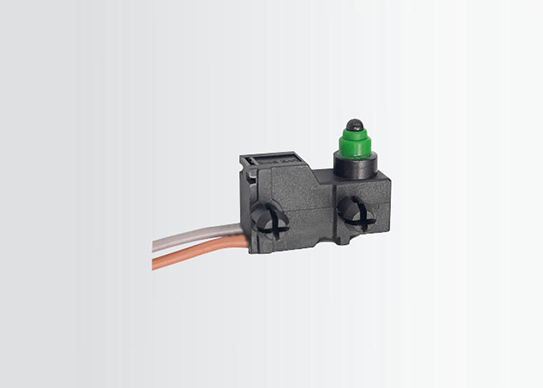

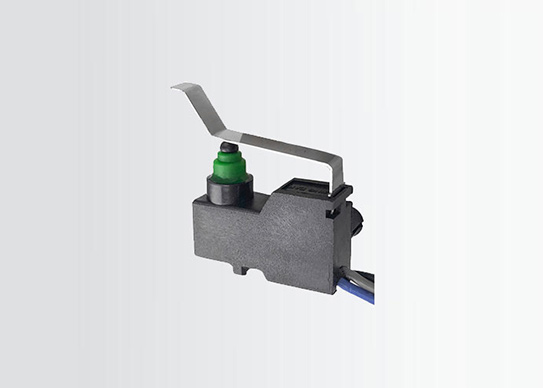

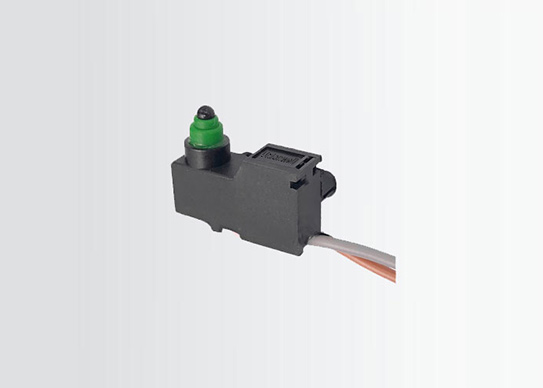

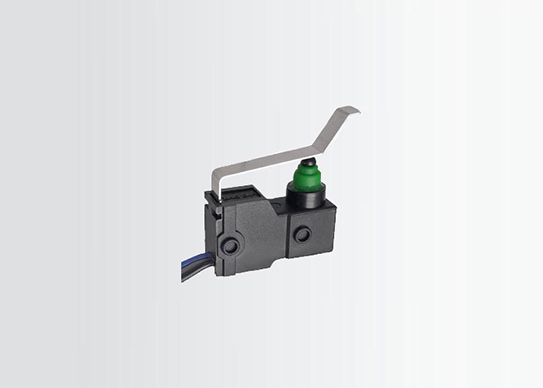

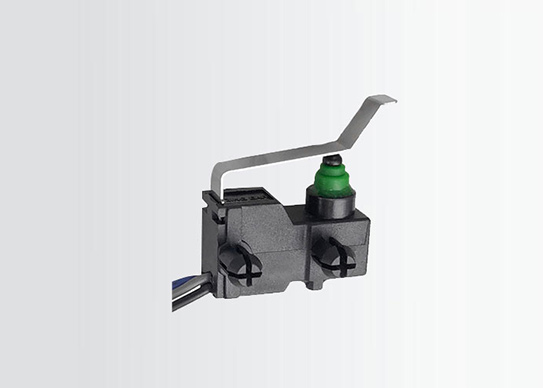

Mini Waterproof 24 Volt Micro Switch G305

  • Designed for water and dust tight (IP67)

  • Small compact size

  • Long life and high reliability

  • Widely used in automotive electronics, appliances, industrial control, etc.


Quote Datasheet

Mini Sealed 24 Volt Micro Switch G305 Specifications

Place of OriginGuangdong, China (Mainland)
Brand NameMicro Switch Manufacturer Unionwell
Model NumberG305
Max Operating  Force (at pin plunger)130gf
Terminal TypeMold Lead Wires on Right Side
Lever TypeNo Lever/#13 Special Lever
Circuit CodeSPDT/SPST-NO/SPST-NC
CertificationsENEC, UL/cUL, CQC
OEM/ODMAvailable
Rating2A 24VDC; 4A 12VDC μ 40T85 10E4
Operating  FrequencyElectrical0.1A 120cycles/min; 4A 10~30 cycles/min
Mechanical120 cycles/min
Contact Resistance (Initial Value)≤100mΩ
Insulation Resistance≥100MΩ
Vibration Durability10~55Hz, move 0.75mm (p-p)
Dielectric Strength500VAC (50~60Hz)
Operating  Temperature-40~+85°C
Operating  Humidity85%RHMax
Service LifeElectrical100, 000cycles
Mechanicalmin 500,000cycles


Products

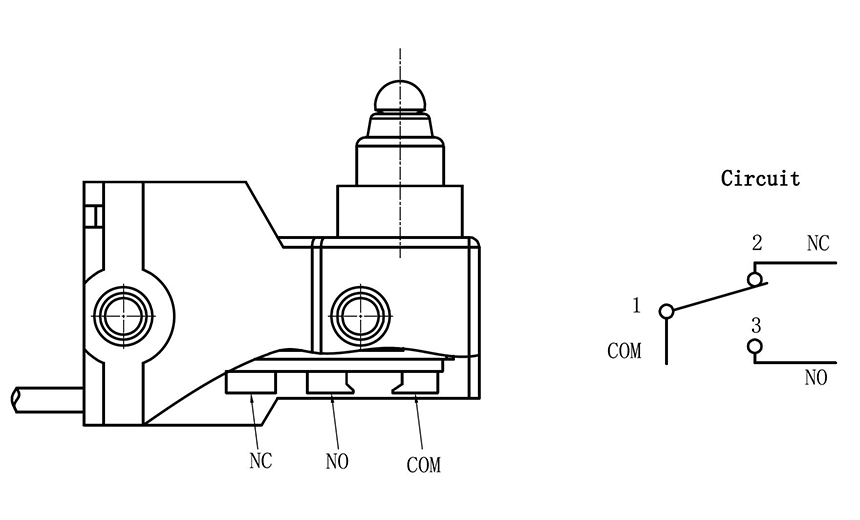

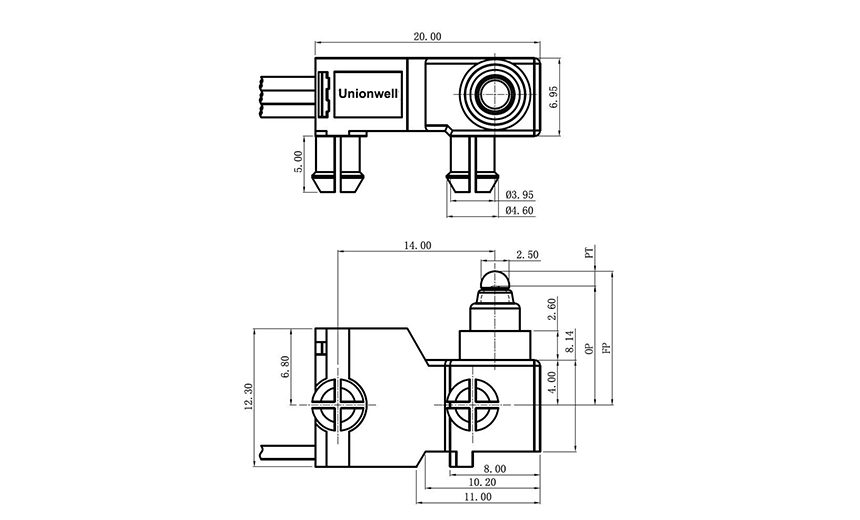

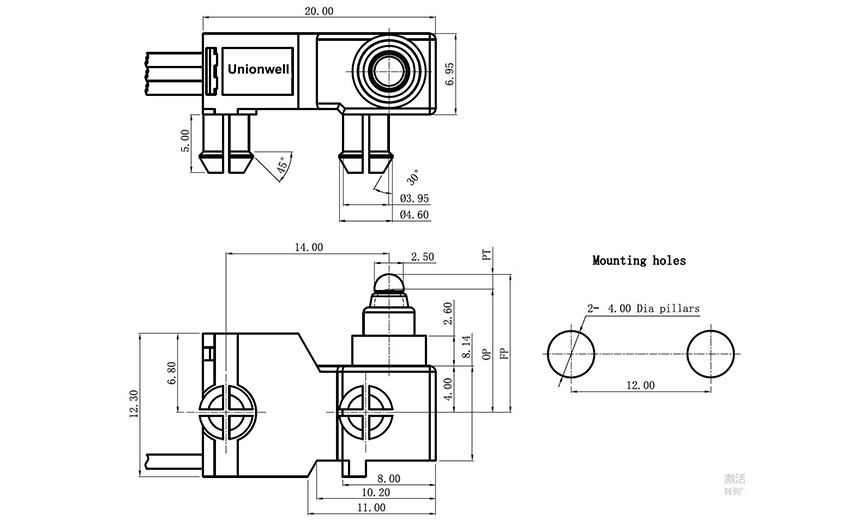

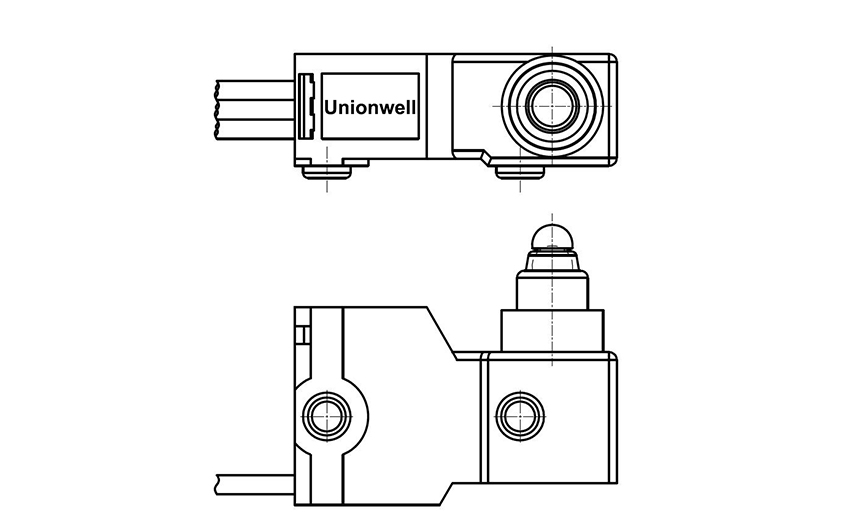

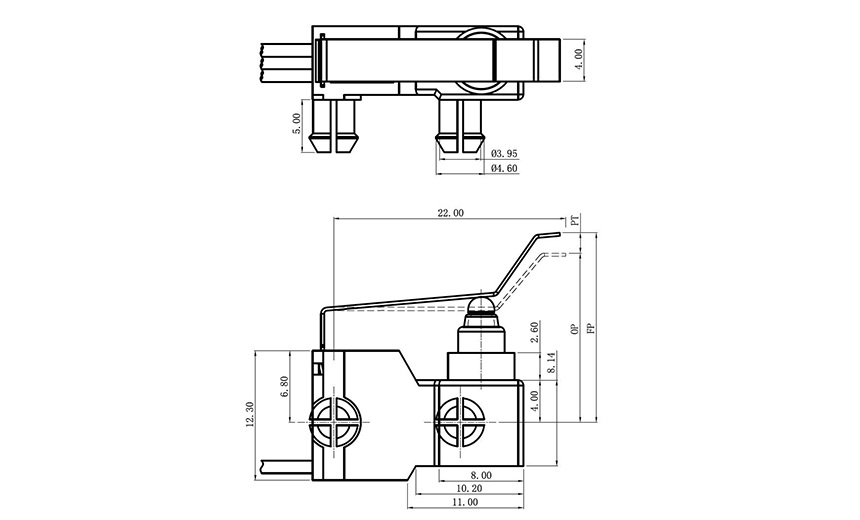

Mini Waterproof Sealed 24 Volt Micro Switch G305 Drawings

24 volt micro switch
g305 switches
24 volt micro switch g305
24 volt g305 micro switch
g305 switches 24 volt micro switch
g305 24 volt micro switch

Mini Waterproof Sealed Micro Switch G305 Related Applications

The Micro Switch G305 is found in various automotive applications such as seat belt buckle switch, door locks, and trunk release mechanisms.

Custom Mini Waterproof Micro Switches Used in Automotive Industry
Automotive
Contact with Us
Tel:
+86-20-87713867
E-mail:
inquiry@unionwellgz.com
Add:
RM1311, Renfeng Building, No. 490, Tianhe Road, Tianhe District, Guangzhou, Guangdong, China, 510630.
Unionwell
Switches are us, switch to us. Find quality micro switches at Unionwell

Popular IP67 Waterproof & Dustproof Clip-type Subminiature Micro Switch G305 series

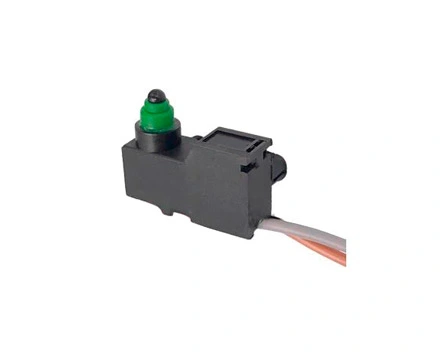

Subminiature Sealed Micro Switch Small Compact Size G305
