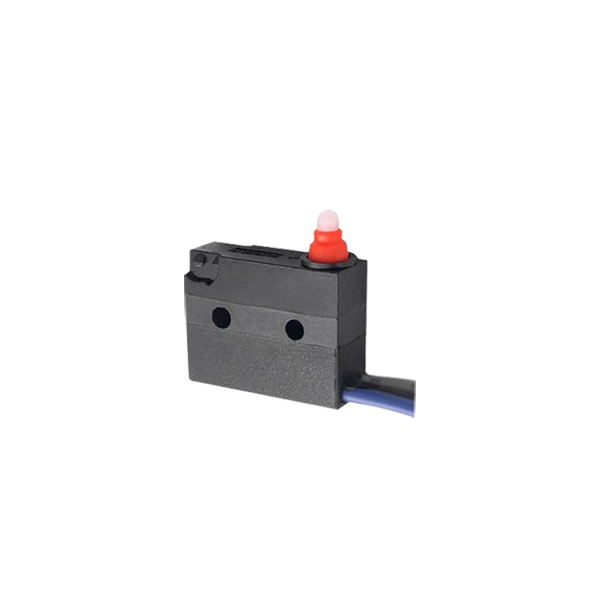

Waterproof Sealed Mini Micro Switch Wires SPDT G9A

Waterproof Sealed Mini Micro Switch Wires SPDT G9A

  • Model Number: G9A05-200G00A-300U

  • Electrical Rating:

    ENEC/CQC:

    5(2)A 125/250VAC 30VDC 40T85 5E4 μ

    UL/cUL:
    5A 125/250VAC 30VDC

  • Operating Force: 200gf Max

  • Terminal Style: Molded Lead Wires Leads To Left Side(Pin Plunger Side)

  • Lever Type: No Lever Pin Plunger

  • Circuit Code: SPDT

  • Wires Length: 300mm wires length

Contact Us

The Features Of Waterproof Sealed Mini Micro Switch Wires SPDT

  • G9A dust and waterproof(IP67)

  • G9B dust proof(IP40)

  • Small compact size

  • Long life and high reliability

  • Variety of terminals

  • Variety of levers optional

  • Custom micro switch design

  • Widely used in auto control, appliances, and other industrial control.



The Parameters Of Waterproof Sealed Mini Micro Switch Wires SPDT

Ratingp10.1A 125/250VAC,0.1A  30VDC
055(2)A 125/250VAC,5A 30VDC
Operating FrequencyElectrical10~30 cycles/minute
Mechanical120 cycles/minute
Contact Resistance(Initiative)With terminals type100mΩ Max
With wires type200mΩ Min
Insulation Resistance (at 500VDC)100MΩ Min
Voltage ResistanceBetween terminalsAC 500V, 50/60HZ,1 Min
Between terminals and uncharged metal partsAC 1000V, 50/60HZ,1 Min
Service  LifeElectrical50,000 cycles
Mechanical200,000 cycles(IP67) 2,000,000 cycles(IP40)
Storage Temperature -40°C~+85°C
Storage Humidity95% RH Max
