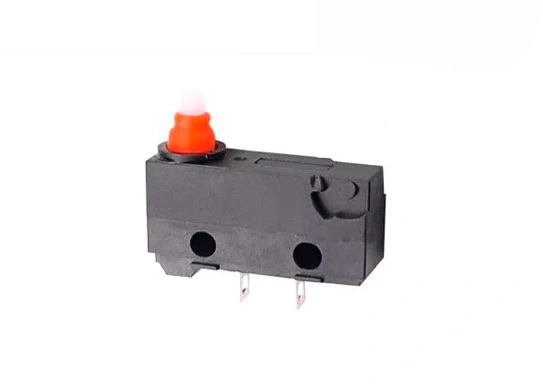

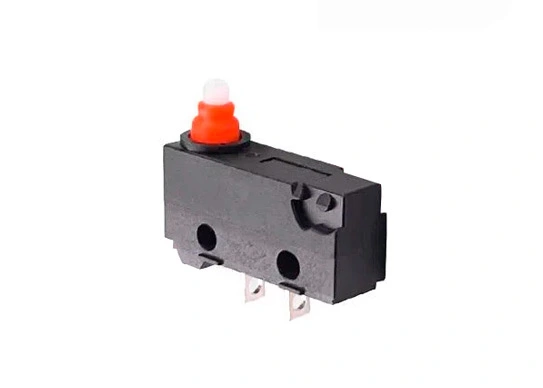

Miniature Micro Switch Solder Terminals 200GF G9A
Miniature Micro Switch Solder Terminals 200GF
Miniature Micro Switch Solder Terminals 200GF
Miniature Micro Switch Solder Terminals 200GF

Miniature Micro Switch Solder Terminals 200GF G9A

  • IP67 Sealed: Dust‑ and waterproof for harsh environments

  • Miniature Design: Compact size with solder terminals for easy PCB mounting

  • 5 A Rating: ENEC/CQC & UL/cUL certified at 125/250 VAC, 30 V DC

  • 200 gf Plunger: Direct‑drive, no‑lever SPST‑NO actuation

  • Long Life: 50,000 electrical cycles; 200,000 mechanical (IP67)

  • Wide Temp Range: –40 °C to +85 °C storage and operation

Quote

Microswitches are small, high precision electronic switches that are used in a wide range of applications. These switches are highly reliable and offer great performance at a low cost.


The Features Of Miniature Micro Switch Solder Terminals 200GF G9A

G9A dust and waterproof(IP67)

G9B dust proof(IP40)

Small compact size

Long life and high reliability

Variety of terminals

Variety of levers optional

Custom micro switch design

Widely used in auto control, appliances, and other industrial control.


Parameters

Ratingp10.1A 125/250VAC,0.1A  30VDC
055(2)A 125/250VAC,5A 30VDC
Operating FrequencyElectrical10~30 cycles/minute
Mechanical120 cycles/minute
Contact Resistance(Initiative)With terminals type100mΩ Max
With wires type200mΩ Min
Insulation Resistance (at 500VDC)100MΩ Min
Voltage ResistanceBetween terminalsAC 500V, 50/60HZ,1 Min
Between terminals and uncharged metal partsAC 1000V, 50/60HZ,1 Min
Service  LifeElectrical50,000 cycles
Mechanical200,000 cycles(IP67) 2,000,000 cycles(IP40)
Storage Temperature -40°C~+85°C
Storage Humidity95% RH Max
