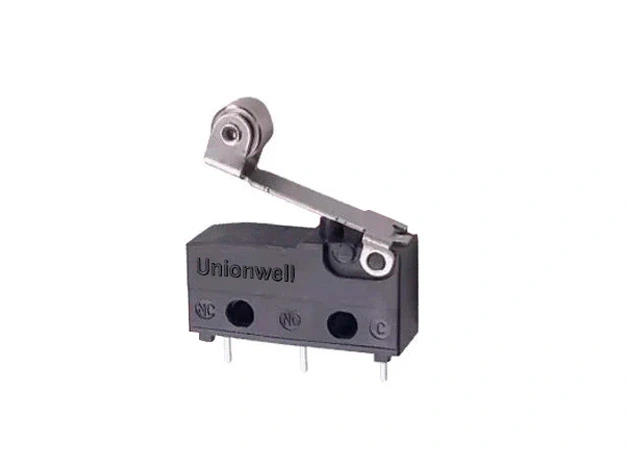

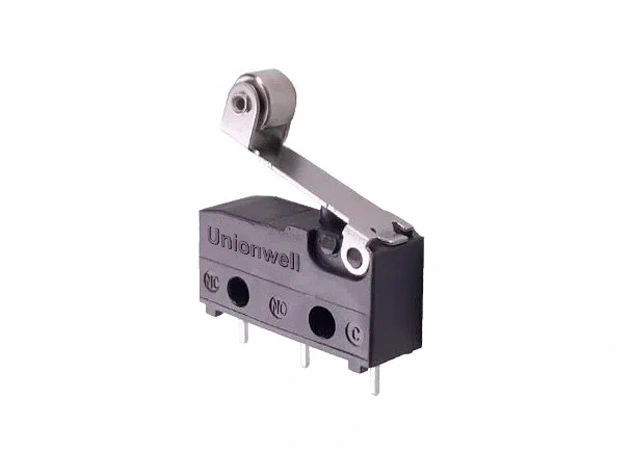

Mini Micro Switch SPDT With Roller Lever G91
Mini Micro Switch SPDT With Roller Lever
Mini Micro Switch SPDT With Roller Lever
Mini Micro Switch SPDT With Roller Lever

Mini Micro Switch SPDT With Roller Lever G91

  • Place of Origin: Guangdong, China (Mainland)

  • Brand Name: Unionwell

  • Model Number: G9105-150P06D1U

  • Terminal Type: Straight PCB Connect Terminals

  • Circuit Code: Mouting Hole 2.30 mm SPDT

  • Lever Type: Roller Lever

  • Quality System Certificates: ISO9001 & IATF16949 & ISO14001

Quote

Features of SPDT Mini Micro Switch with Roller Lever

  • Small Compact Size

  • Long Life, High Reliability

  • Variety of Terminals and Levers

  • Wide Range Operating Force

  • Widely used in Auto Control, Appliance and Other Industry Control


Specifications of Mini Micro Switch SPDT With Roller Lever

RatingP10.1A 125/250VAC 48VDC Gold Plated Contact Optional
05UL: 5A 125/250VAC
ENEC: 6A 125/125VAC 1E4; 3A 125/250VAC 30VDC 5E4 μ25T120
Operating FrequencyElectrical10~30 cycles/min
Mechanical120 cycles/min
Contact Resistance (Initiative)100mΩ Max (lt depends on the wire length for the type with wire)
Insulation Resistance (at 500VDC)100mΩ Min
Dielectric StrengthAC 1,000V RMS(50-60Hz)
Storage Temperature-25℃~+120℃
Storage Humidity85% RH Max.
Service LifeElectrical10,000 cycles (Depend on part No.)
Mechanical500,000 cycles


Products
Contact with Us
Tel:
+86-20-87713867
E-mail:
inquiry@unionwellgz.com
Add:
RM1311, Renfeng Building, No. 490, Tianhe Road, Tianhe District, Guangzhou, Guangdong, China, 510630.
Unionwell
Switches are us, switch to us. Find quality micro switches at Unionwell

Popular Dustproof Mini Micro Switch G91 series

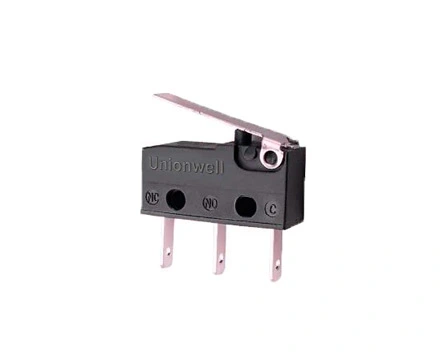

Dustproof Micro Switches Solder Terminals G91
Dustproof Micro Switches Solder Terminals G91

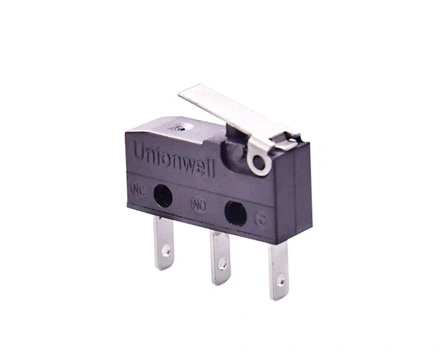

Dustproof Subminiature Switch Solder Terminals G91
Dustproof Subminiature Switch Solder Terminals G91
Refrigerator Micro Switch G91P1
Refrigerator Micro Switch G91P1

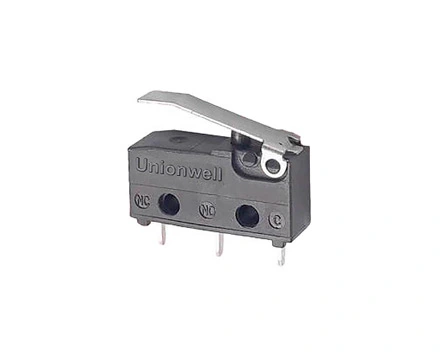

Dustproof Micro Switch Right Side PCB Terminals G91
