Name: Ultra-miniature Micro Switches G15E
Brand: Guangzhou Unionwell Sensing & Control Technology Co., Ltd.

The G15E series ultra-miniature micro switch is designed to meet the growing demand for compact, high-performance components in intelligent electronics and industrial controls. With a body width of just 2.7mm, it provides space-saving installation without compromising reliability or feel.

Equipped with a 30gf operating force and a molded plastic lever (lever type 02), this switch delivers quick response and excellent tactile feedback, making it suitable for low-current switching applications up to 0.1A at 30V DC.

Its integrated molded terminal structure prevents flux wicking and allows easy and secure PCB mounting. Available with silver alloy or gold-plated contacts, the G15E also offers flexible options for different durability and conductivity requirements.

Whether you're designing smart devices, compact automation systems, or precision instruments, the G15E is built to perform with reliability and ease of integration. It meets RoHS standards and is engineered for long mechanical and electrical life.

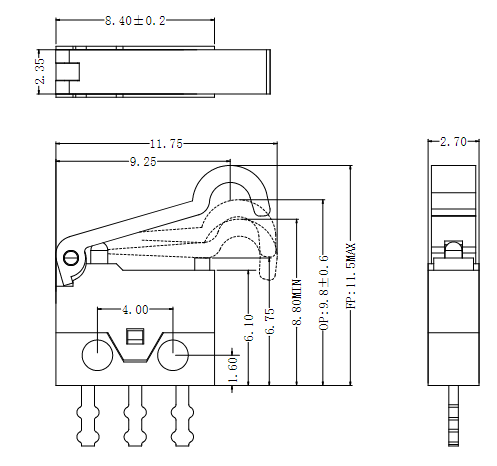

Parameters

Series No.	G15EP1		G15E01
Operating Force	60gf Max.
Contacts	Silver Alloy	Gold Plated
Electrical Rating	O.1A DC30V		1A DC15V
Contact Resistance(Initial value)	100mΩ Max
Operating Frequency	Mechanical: 60 cycles max Electrical: 20 cycles max
Insulation Resistance	100MΩ（DC 500V) Min
Voltage Resistance	AC250V 50/60Hz 1min
Mechanical Life	20,000 cycles	300,000 cycles	300,000 cycles
Electrical Life	20,000 cycles	300,000 cycles	10,000 cycles
Storage Humidity	85%RH max at +40°C
Operating Temperature Range	-40～+85°C
Solder Ability	255±5°C 5s
Protection Type	IP40
Unit Net Weight	Approx 0.3g
Note: Mechanical life simulation test under 150gf operating force
