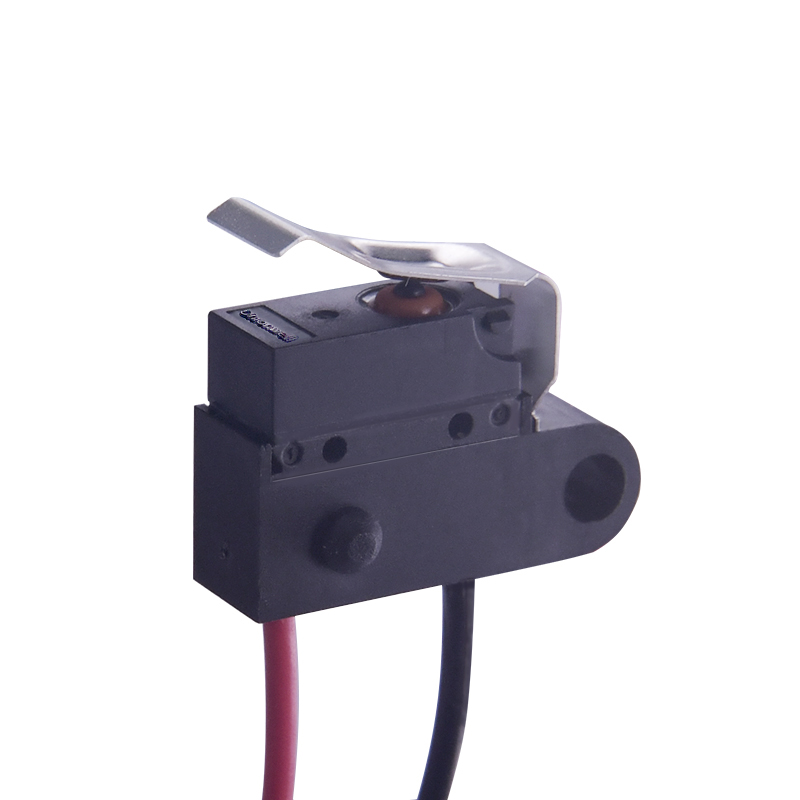

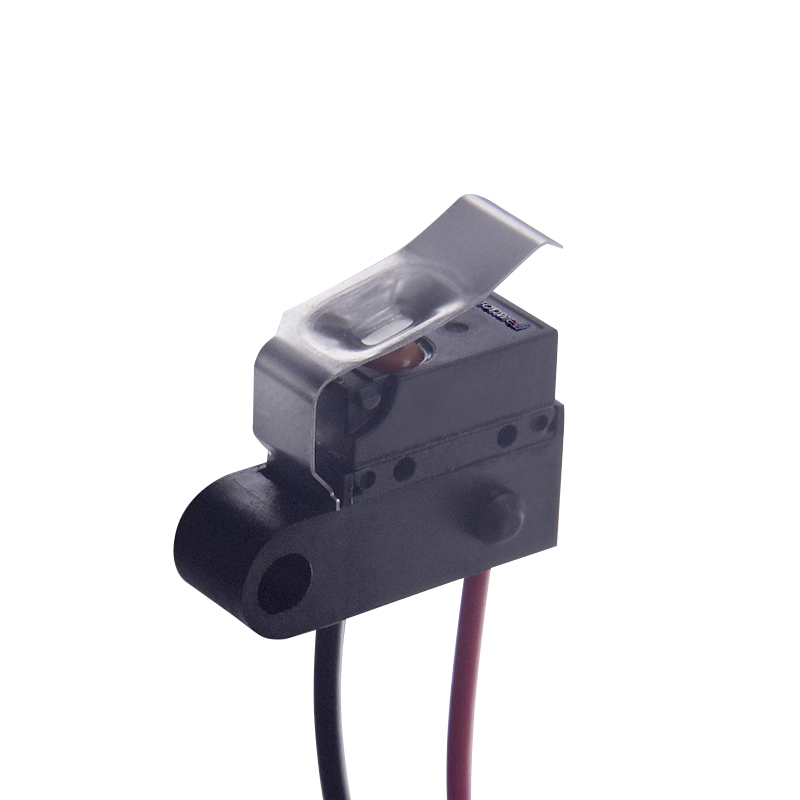

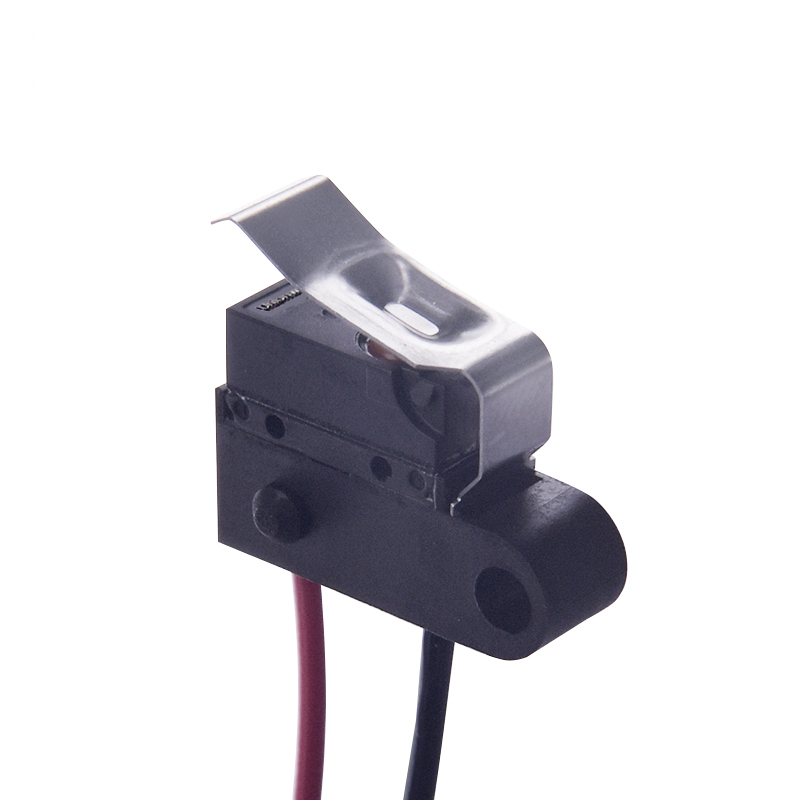

Micro Push Button Custom Lever G10B

Micro Push Button Custom Lever G10B

  • Model Number: G10B03-150M20B-T092U

  • Electrical Rating:

    ENEC/CQC
    3A 125/250VAC 30VDC, 1E4 μ 40T85
    UL/cUL
    3A  125/250VAC 30VDC

  • Operating Force: 150gf Max

  • Circuit Code: SPST-NC

Contact Us

The Features Of Micro Push Button

  • Develop A New Lever

  • Small Compact Size

  • Long Life And High Reliability

  • Designed For Water And Dust Tight(IP67)

  • Widely Used In Appliance And Industry Control



The Parameters Of Micro Push Button

RatingP10.1A 125/250VAC 30VDC
033A  125/250VAC 30VDC
Operating FrequencyElectrical10~30  cycles/minute
Mechanical120 cycles/minute
Contact Resistance(initial value)100mΩ Max
Insulation Resistanceat 500VDC,100MΩ Min.
Dielectric StrengthAC 600VAC RMS (50-60HZ)
Storage Temperature-40°C~+85°C
Storage Humidity85%RH Max
Service LifeElectrical10,000 cycles
Mechanical300,000 cycles
