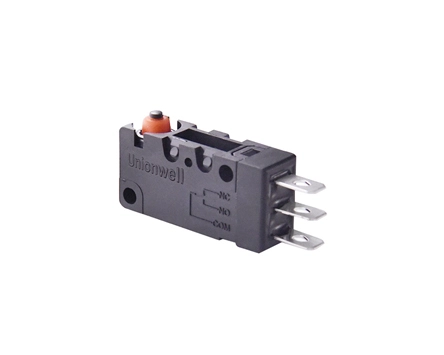

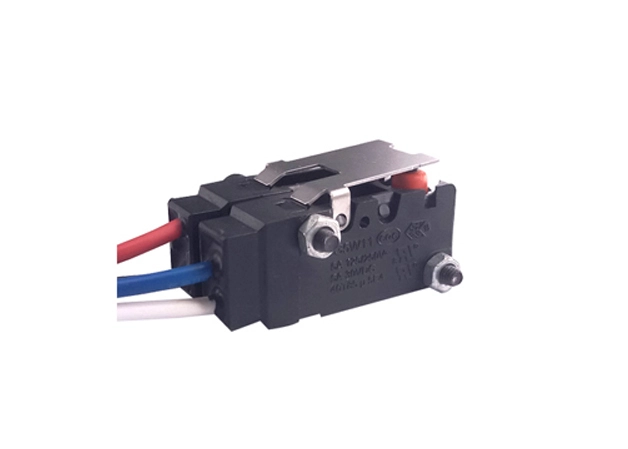

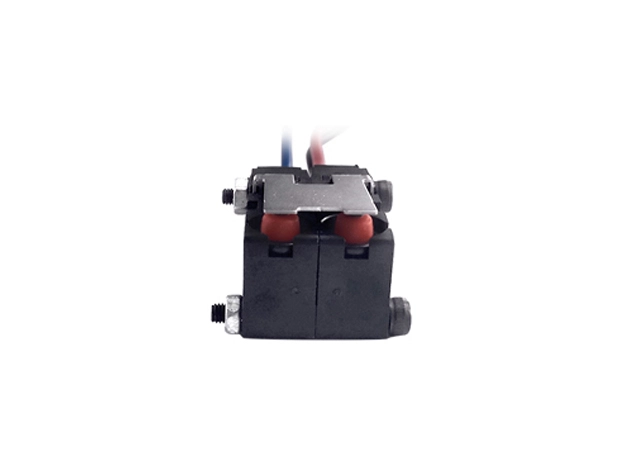

The G5W11-A001U waterproof microswitch is engineered for precision snap-action performance, high sensitivity, and extended durability. This product is available in two lever configurations: the standard P10A0914 lever and a new 14# lever designed for wiring applications. Both variants feature a compact structure with minimal contact gap, ensuring waterproof and dustproof operation. Compliant with both ENEC/CQC and UL/cUL standards, the detailed specifications are provided in the table below. Ideal for use in automotive electronics, appliance control, agricultural equipment, and office equipment, this microswitch offers a reliable solution for diverse industrial applications.

Parameters

Rating	W1	ENEC： 0.1A 48VDC, 0.1A 125/250VAC,40T85,5E4,u UL：0.1A 48VDC,0.1A 125/250VAC,T85
	W2	ENEC： 5A 125/250VAC,5A, 30VDC,40T85,5E4, u UL：5A 125/250VAC,T85
	W3	ENEC：10(2)A 125/250VAC, 0.5A 125VDC, 0.25A 250VDC,40T85,u,2E4 UL：10.1A 1/10HP 125/250VAC,0.5A 125VDC, 0.25A 250VDC, T85
Operating Frequency	Electrical	10~30 times/min
Operating Frequency	Mechanical	60 times/min
Contact Resistance(initial value)	With Terminal	50mΩ Max
Contact Resistance(initial value)	With Wire	100mΩ Max(Depends on the length of the wire)
Insulation Resistance		at 500VDC,100MΩ Min.
Dielectric Strength	Between Terminals	AC 1000V 50-60Hz 1min
Dielectric Strength	Between Terminals And Housing	AC 1500V 50-60Hz 1min
Storage Temperature		-40°C~+85°C
Storage Humidity		85%RH Max
Protection Grade	With Terminal	IEC IP67(Terminal not included)
Protection Grade	With Wire	IEC IP67
(PTI)Electric-shock Safeguard Grade		Class I
Life	E-life	2E4~10E4 cycles(depends on P/Ns)
Life	M-life	over 1,000,000 cycles(60 cycles/min)
Weight		Approx.7g(with terminal and without lever)
