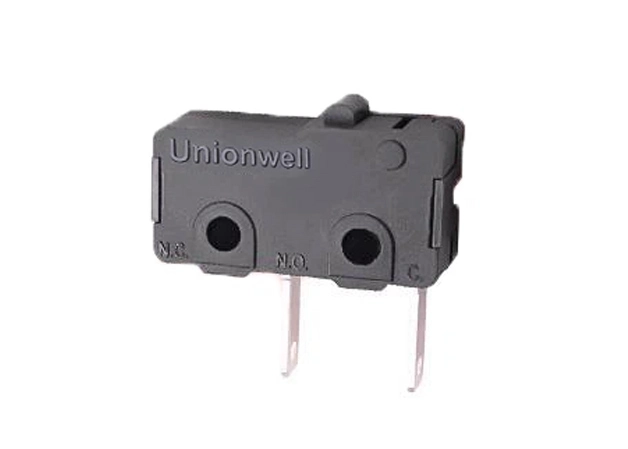

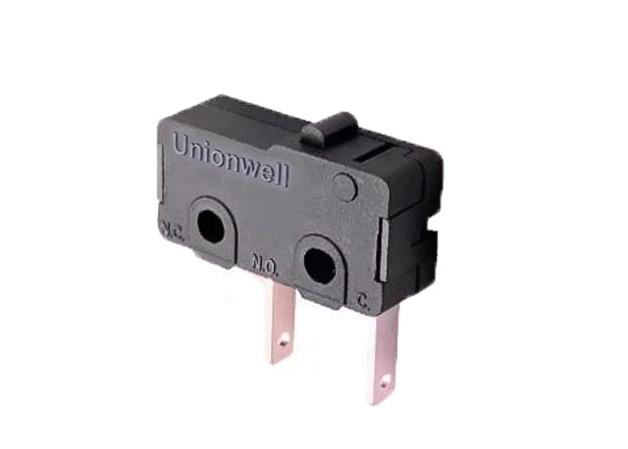

Miniature Micro Switch 250gf Quick Connect Terminals G6
Miniature Micro Switch 250gf Quick Connect Terminals
Miniature Micro Switch 250gf Quick Connect Terminals
Miniature Micro Switch 250gf Quick Connect Terminals

Miniature Micro Switch 250gf Quick Connect Terminals G6

  • Place of Origin: Guangdong, China (Mainland)

  • Brand Name: Unionwell

  • Model Number: G6P1-250E00CA

Quote

Product Quick Details of Miniature Micro Switch 250gf Quick Connect Terminals

  • Place of Origin: Guangdong, China (Mainland)

  • Brand Name: Unionwell

  • Model Number: G6P1-250E00CA

  • Terminal Type: Quick Connect Terminals

  • Circuit Code: SPST-NO

  • Lever Type: No Lever Pin Plunger


Specifications of Miniature Micro Switch 250gf Quick Connect Terminals

RatingP1/P11/P12ENEC: 0.1A, 125/250V 48VDC 5EA
UL : 0.1A, 125/250V 48VDC
Gold Plated Contact Optional
05/051/052EN EC: 5A,125/250VAC
UL: 5A, 1/8HP 125/250VAC
10/101EN EC: 10(2)A,125/250VACp 25T125
UL:10.1A,1/4HP 125/250VAC
Note: 250gf/Only with "OF "over "250gf"
12EN EC: 12(6)A,125/250VAC μ 40T125
UL:12A, 125/250VAC
Note: 350gf/Only with 350gf OF
Operating FrequencyElectrical10-30 cycles/minute
Mechanical120 cycles/minute
Contact Resistance (Initiative )100mΩ Max (without wire type)
Insulation Resistance (at 500VDC)100MΩ Min
Dielectric StrengthAC 1,000RMS (50-60Hz)
Storage Temperature-25℃~+125℃
Storage Humidity85%RH Max
Service LifeElectrical10,000-50,000 cycles (Depend on part No.)
Mechanical1,000,000 cycles
