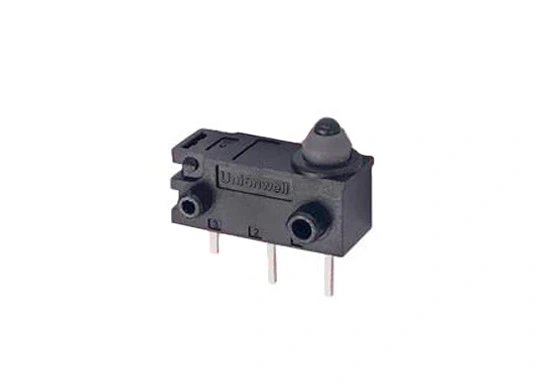

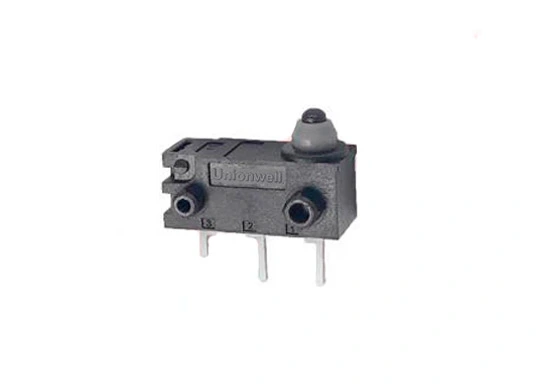

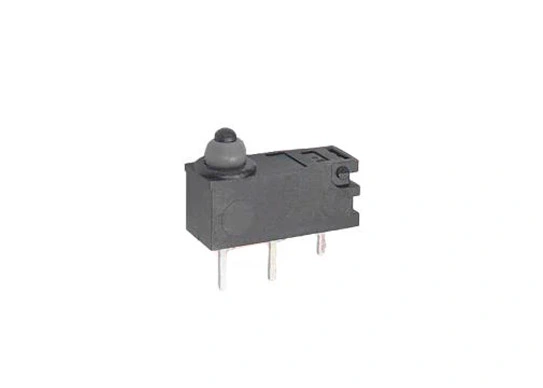

Place of Origin: Guangdong, China (Mainland)
Brand Name: Unionwell
Model Number: G304B-150P00C3-T001
Terminal: Straight PCB Terminals
Circuit code: SPST-NO
Lever type: No lever Pin Plunger
Operating Speed
1~500mm/s
Operating Frequency
Insulation Resistance
≥100MΩ
Contact Resistance(Intial Value)(With terminals type)
≤100MΩ
Contact Resistance(Intial Value)(With Wire type)
≤200MΩ
Voltage Resistance (Between terminals)
AC600V, 50/60HZ, 1min
Voltage Resistance (Between terminals and uncharged metal parts)
AC1000V, 50/60HZ, 1min
Vibration Resistance (No transformation action)
10-55HZ
Service Life(Electrical)
300000/cycles(20/min) DC30V 0.1A DC14V 10mA
Service Life (Mechanical)
300,000/cycles(30/min)
Protection Level
IEC IP67
Storage Temperature
-40~+85℃60%RH
Storage Humidity
95℃RH (+5~+35℃)
