Detector Micro Switch GT01

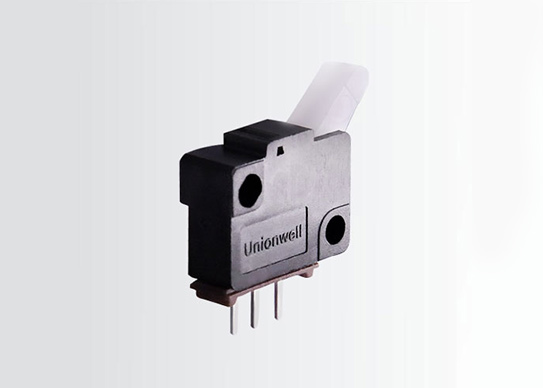

micro detector switch
micro detector switch

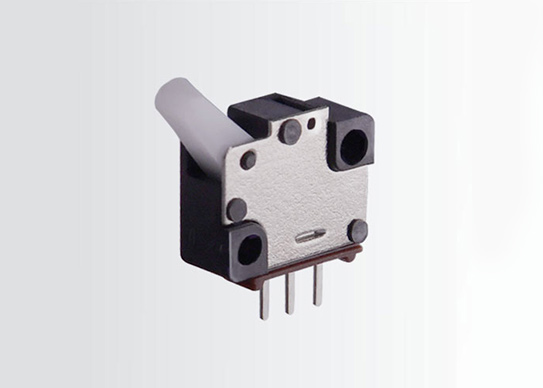

micro motion sensor switch

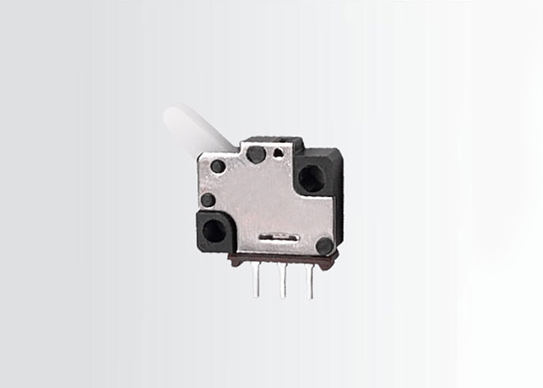

micro switch working principle

Detector Micro Switch GT01

  • Small size and compact configuration

  • High durability and excellent reliability

  • Precise movement mechanism with a lightweight

  • Optional different levels of operating force

Contact Us Datasheet

Specifications of Detector Micro Switch GT01

Place of OriginGuangdong, China (Mainland)
Brand NameMicro Switch Manufacturer Unionwell
Model NumberGT01
Electrical
Characteristics		Rating0.1A 12VC; 50μΑ
Contact Resistance100 mΩ Max. (Initial Value)
Insulation Resistance50MΩ Min.
Voltage Resistance100VAC (50/60Hz) 1Minute
Electrical life10,000 Cycles (Min)
ParametersOperating ForceSee Detailing Spec
Mechanical Life100,000 Cycles (Min)
Operating Temperature Range-25°C~+80°C
Operating Humidity≤85%RH
Solder Ability260°C ± 5 °C 3s ± 1s


Products

Product Drawing of Detector Micro Switch GT01

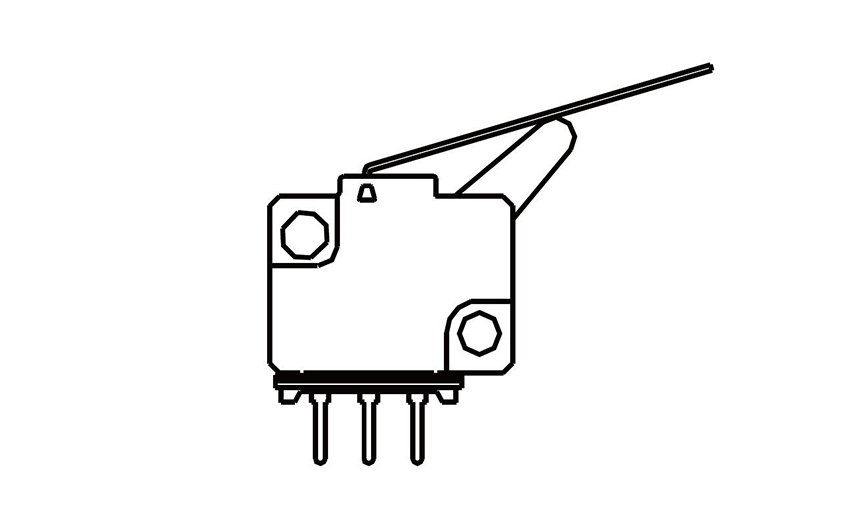

micro detector switch 3

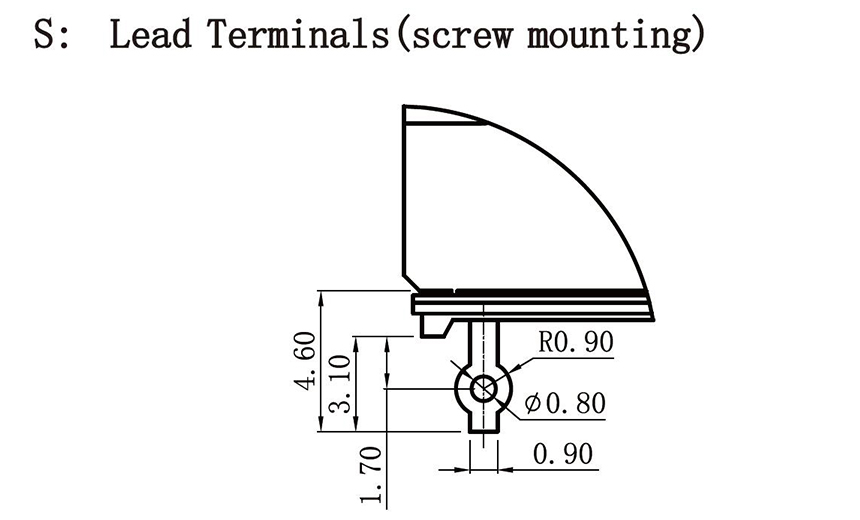

micro detector switch 2
micro motion sensor switch 2

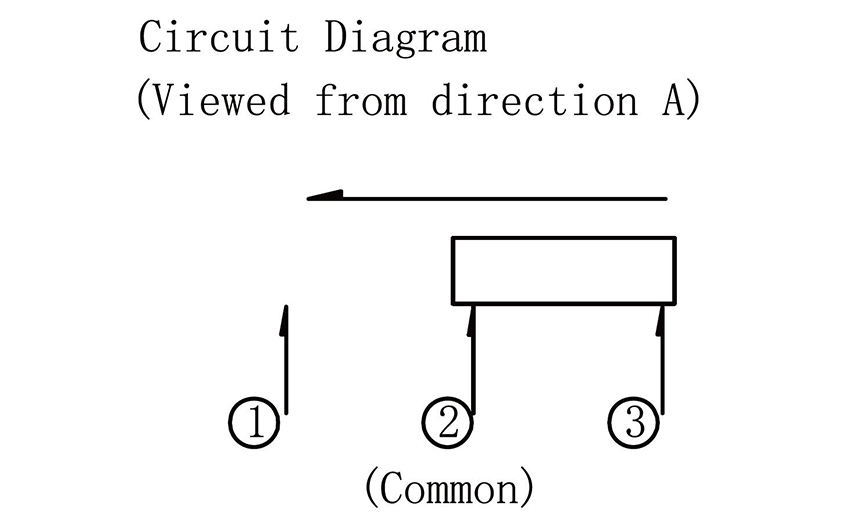

micro detector switch 1
micro motion sensor switch 3

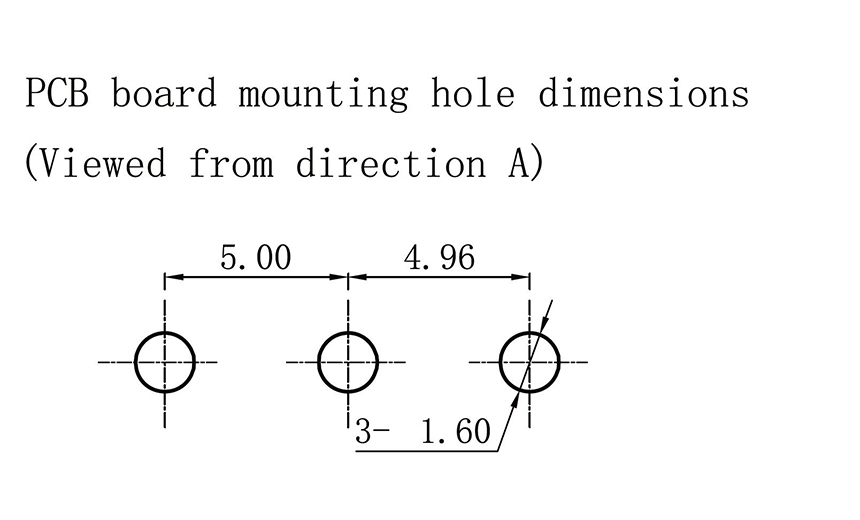

micro motion sensor switch
