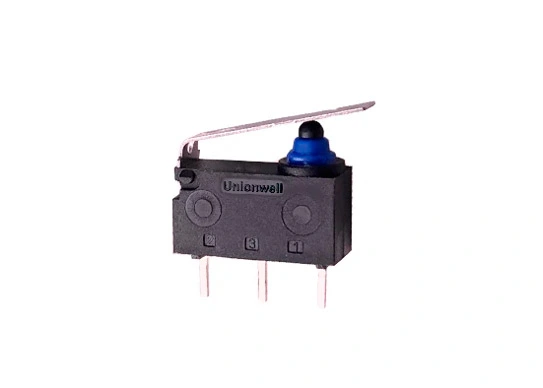

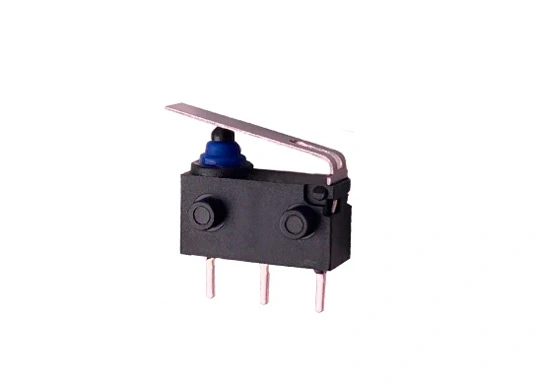

Subminiature Waterproof Micro Switch 150GF IP67 G303
Subminiature Waterproof Micro Switch 150GF IP67
Subminiature Waterproof Micro Switch 150GF IP67
Subminiature Waterproof Micro Switch 150GF IP67

Subminiature Waterproof Micro Switch 150GF IP67 G303

  • Place of Origin: Guangdong, China (Mainland)

  • Brand Name: Unionwell

  • Model Number: G303-150P02A53BU

  • Terminal: Straight PCB Terminals

  • Circuit Code: SPDT

  • Lever Type: Straight Leaf Lever

Quote

Specifications of Subminiature Waterproof Micro Switch 150GF IP67

Rating0.1A, 125/1250VAC; 3A/12VDC; 0.1A/48VDC; μ1E5
Operating FrequencyElectrical0.1A,120 cycles/min 3A,10~30 cycles/min
Mechanical120 cycles/min
Contact Resistance (Initiative)100mΩ Max.(without wire type)
Insulation Resistance (at 500VDC)100mΩ Min.
Vibration Durability10~55Hz, move 0.75mm(p-p)
Dielectric Strength500VAC (50~60Hz)
Operating Temperature-40℃~+85℃
Operating Humidity85% RH Max
Service LifeElectricalMin.100,000 cycles (Depend on part NO.)
MechanicalMin.500,000 cycles
