Ultra Mini Micro Switch Metal Lever G15D
Ultra Mini Micro Switch Metal Lever G15D.jpg
Ultra Mini Micro Switch Metal Lever G15D.jpg

Ultra Mini Micro Switch Metal Lever G15D

  • Ultra-compact 2.7mm width – ideal for space-saving designs

  • Straight metal lever for direct and precise actuation

  • High-precision internal spring plate for fast, reliable switching

  • Over 1 million mechanical cycles – built for long-term use

  • Easy PCB mounting with molded terminals

  • RoHS compliant and suitable for intelligent systems and industrial control

The G15D ultra mini micro switch is specifically engineered for intelligent devices and industrial control systems that require precise, compact, and highly durable components. With a width of just 2.7mm and a 30gf operating force, this micro switch is an excellent fit for dense circuit layouts and sensitive actuation needs.

Built with a high-precision spring plate, the switch enables fast and accurate response with a distinct tactile feel. Its integrated molded PCB terminals prevent solder flux wicking, enhancing stability and durability during long-term operation.

Equipped with a straight metal lever (type 01), the G15D offers smooth actuation and compatibility with various product structures. The contacts are available in silver alloy or gold plated options, making it suitable for low-current applications up to 0.1A at 30V DC.

With a mechanical life exceeding 1 million cycles and full RoHS compliance, this micro switch is a reliable solution for high-performance, space-conscious applications.


Parameters

Series No.G15DP1G15D01Customized
Operating Force15gf 30gf 60gf 110gf
ContactsSilver AlloyGold Plated
Electrical
Rating
O.1A DC30V1A DC15V0.1A DC30V
Contact Resistance(Initial value)100mΩ Max
Operating FrequencyMechanical: 60 cycles max  Electrical: 20 cycles max
Insulation Resistance100MΩ(DC 500V) Min
Voltage ResistanceAC250V 50/60Hz 1min
Mechanical Life20,000 cycles300,000 cycles300,000 cycles1,000,000 cycles
Electrical Life20,000 cycles300,000 cycles10,000 cycles1,000,000 cycles
Storage Humidity85% RH max at +40°C
Operating Temperature Range -40~+85°C
Solder Ability255±5°C 5s
Protection TypeIP40
Unit Net WeightApprox 0.3g
Note: Mechanical life test under 150gf operating force


Products

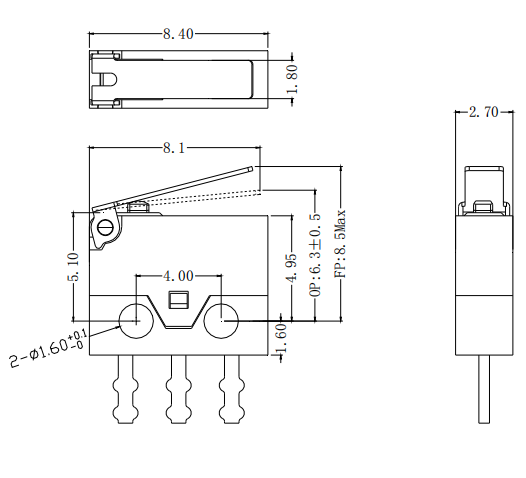

Product Drawing of Ultra Mini Micro Switch Metal Lever G15D
